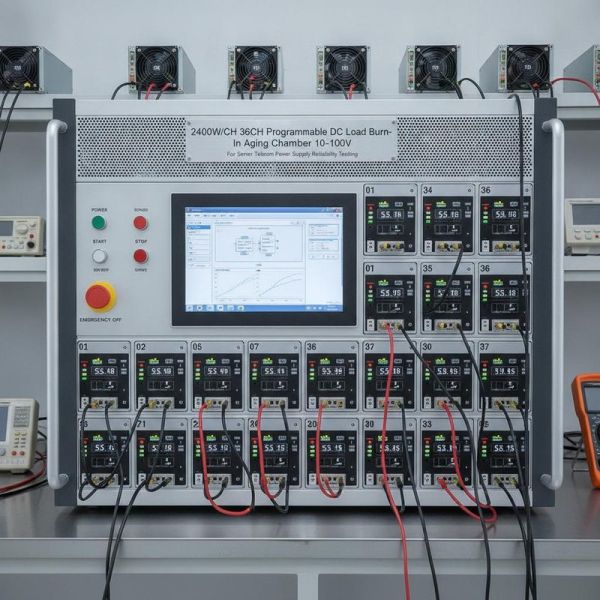

2400W/CH 36CH Programmable DC Load Burn-In Aging Chamber 10-100V for Server Telecom Power Supply Reliability Testing
2400W/CH 36CH Programmable DC Load Burn-In Aging Chamber 10-100V for Server Telecom Power Supply Reliability Testing
Specifications
Price :
7900dollars/set
Power of single channel :
2400W/CH
Place of Origin :
China
Payment Terms :
D/A
Scope of load voltage :
10-100V
Delivery Time :
30 work days
Packaging Details :
Wooden case packing
Brand Name :
CPET
Model Number :
CP-3035
Supply Ability :
30sets/month
Quantity of load channels :
36CH
Scope of load current :
0.5-80A/CH
Load Mode :
CC+CV+CR Mode
Certification :
CE,ROHS
MOQ :
2sets
External dimension (L*W*H) :
2050*1000*1900/custom design
Description
36CH Programmable DC Load Burn-In Aging Chamber for Server & Telecom Power Supply Reliability Testing
Application Scope

Purpose-built for burn-in reliability testing of server power supplies, telecom rectifier modules, industrial power supplies, communication base station PSUs, data center power modules, high-voltage DC-DC converters, and NPS/SSN industrial switching power supplies. The 10-100V extended voltage range with 2400W per channel accommodates mid-to-high power applications.

Key Advantages
  • 36 independent programmable DC load channels deliver 2400W per channel for mid-to-high power supply burn-in testing.
  • Extended 10-100V DC load voltage range covers server, telecom, and industrial power supply test requirements.
  • Real-time monitoring of voltage, current, power, and temperature parameters with PC-based burn-in management software.
  • CC, CV, and CR load modes with parallel channel capability in CC mode for power expansion beyond single-channel limits.
  • Energy-saving load module technology achieves >85% regeneration efficiency for reduced operating costs.
  • Built-in overtemperature protection and smoke alarm with automatic shutdown for continuous unattended operation.
  • Programmable switch timing and automatic load profile conversion for automated reliability test sequences.
  • Versatile DC interface boards support various output connector standards for different product form factors.
  • 6-layer adjustable product zone with 170mm layer height provides flexible DUT arrangement.
  • Optional AC input parameter measurement module for complete power supply characterization.
  • Optional automatic voltage switching function and product zone temperature monitoring.
  • Temperature-controlled enclosed product zone (ambient to 60°C) maintains consistent test conditions.
Performance Parameters
ParameterSpecification
Power of single channel2400W/CH
Quantity of load channels36CH
Scope of load voltage10-100V DC
Scope of load current0.5-80A/CH
Load precision±(2%+0.5%FS)
Load module typeEnergy-saving load module
Load modeCC+CV+CR Mode
Number of product zone layers6
Layer height (mm)170
Layer width (mm)340
Temperature controlAmbient to 60°C
Structure materialCold-rolled sheet, precision fabricated
Main control modePC-based burn-in monitoring software
UUT input interfaceMulti-purpose socket/speaker wire clip/custom
UUT output interfaceFixture boards (various specs)/custom design
External dimension2050*1000*1900mm / custom design
