Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment
Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment
Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment
Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment
Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment
Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment
Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment
Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment
Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment
Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment
Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment
Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment
Specifications
Place of Origin :
Guangdong, China
Brand Name :
BOJKE
MOQ :
1
Model Number :
BGSX-LS61/BGSX-LS61P
Certification :
CE
Price :
$10.8~$11.8
Payment Terms :
T/T
Supply Ability :
150k
Delivery Time :
5~8 work days
Packaging Details :
kraft paper box with carton box;
Product name :
Background suppression photoelectric sensor switch
Description :
BGS photoelectric sensor, photoelectric sensor
Usage :
Sensing and detection
Spot size :
Ø5/200mm
Sensing range :
30~400mm
Size :

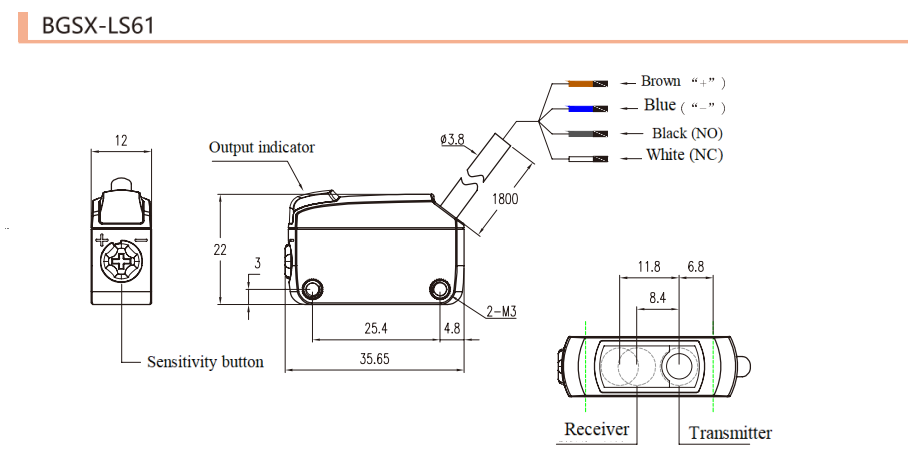

22 x 35.65 mm
Output :
NPN/PNP
Power supply :
12~24V
Description

BGS Photoelectric Sensor Photocell Photo Switch For Position Measurement And Adjustment

Product Description
Product Name Background suppression photoelectric sensor
Housing Material PBT
Function Sensing presence and position
Package PP bag with carton box


Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment
Model BGSX-LS61/BGSX-LS61P
Detection Type diffuse reflection, background suppression (Not affected by the color of the detected object)
Detection Range 30~400mm adjustable
Light Spot Size Ø5/200mm
Tolerance <20%
Resolution Ratio opaque objects
Repeat Accuracy <5%
Sensitivity Adjustment Multi turn knob adjustment
Output Mode PNP open collector
Mode Light.on / Dark.on switchable
Response Time <500㎲
Response Frequency 700Hz
Light Source 650nm visible red light
Operation Voltage DC 12~24V ±10%
Residue Voltage <1.5V (load current 100mA, 2 meter cable)
Max load current 100mA
Consumation current <15mA
Ambient Illumination Incandescent lamp ≤ 3000Lux; Sunlight ≤ 10000Lux
Ambient Temperature operation:-10℃~55℃；storage:-25℃~75℃,no freezing
Ambient Humidity operation: 35%~85% RH；storage:35%~95% RH no condensation
Protection Circuit polarity reversal protection/surge protection/short circuit protection
Protection Degree IP65
Indicatior Red: output by black cable
Green: output by white cable
Connection 2 meter standard cable
Housing material ABS
Withstand Voltage AC 500V, 50/60Hz, 1 minute
Vibration Resistance 10～55Hz, dual amplitude 1.5mm, X/Y/Z directions each 2 hours
Shock Resistance 500m/S2, X,Y,Z directions each 3 times
Insulation Impedance Above 20M Ω (DC 500V megohmmeter)
Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment
Background Suppression Photoelectric Sensor Switch For Position Measurement / Adjustment
FAQ
Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger quantities orders
Q : Can I get a sample?
A : Of course, but you need to pay the sample fee
Q : When will you ship my order?
A : 3 day shipping guarantee for stock item and within 15 days for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
