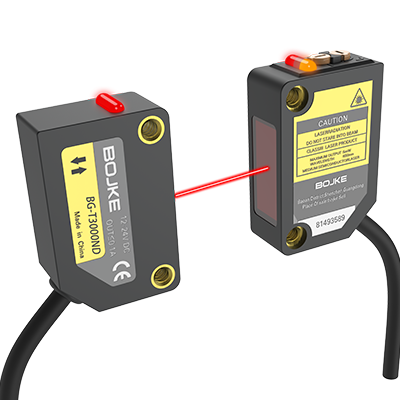

30m Laser Photoelectric Sensor , Through Beam Photoelectric Sensor Switch
30m Laser Photoelectric Sensor , Through Beam Photoelectric Sensor Switch
30m Laser Photoelectric Sensor , Through Beam Photoelectric Sensor Switch
30m Laser Photoelectric Sensor , Through Beam Photoelectric Sensor Switch
30m Laser Photoelectric Sensor , Through Beam Photoelectric Sensor Switch
30m Laser Photoelectric Sensor , Through Beam Photoelectric Sensor Switch
30m Laser Photoelectric Sensor , Through Beam Photoelectric Sensor Switch
30m Laser Photoelectric Sensor , Through Beam Photoelectric Sensor Switch
Specifications
Place of Origin :
Guangdong, China
Brand Name :
BOJKE
MOQ :
1
Price :
$14.8
Model Number :
BG-T3000N
Certification :
CE
Payment Terms :
T/T
Supply Ability :
150k
Delivery Time :
5~8 work days
Packaging Details :
kraft paper box with carton box;
Product name :
Through Beam Photoelectric Sensor
Usage :
Sensing and detection
Theory :
Optical signal to electrical signal
Size :
22X35.65mm
Detection distance :
30 meter
Power supply :
12~24VDC
Output :
NPN
Description

30 Meter Laser Through Beam Photoelectric Sensor Switch Optic Optical Sensors

Product Description
Product Name photoelectric sensor
Housing Material PC
Function laser detection
Package kraft box
30m Laser Photoelectric Sensor , Through Beam Photoelectric Sensor Switch
Model BG-T3000N
Detection Mode Throubeam
Detection Distance 30M
Ligh Spot Size Ø10mm/30M
Hysterisis Error Range <20%
Standard detecton Object above Ø12mm opaque objects
Repeat Accuracy <5%
Sensitivity Adjustment Multi turn knob adjustment
Output Mode NPN open collector
Switch Mode Light.on / Dark.on switchable
Response Time <1ms
Response Frequency 1KHz
Light Source Laser light-emitting diode
Operation Voltage DC 12~24V ±10%
Residue Voltage <3V
Max Load Current 100mA
ConsumptionCurrent <25mA
Ambient Illumination Incandescent lamp ≤ 3000Lux; Sunlight ≤ 10000Lux
Ambient Temperature Operation:-10℃~55℃； Storage:-25℃~70℃,No freezing
Ambient Humidity Operation:35%~85% RH； Storage:35%~95% RH,no condensation
Protection Circuit Polarity reversal protection/surge protection/short circuit protection
Protection Level IP65
Indicator Orange
Connection 4 core, standard cable 2 meters
Housing Material ABS+PC
Withstand Voltage AC 500V, 50/60Hz, 1 minute
Impact Resistance 10~55Hz, dual amplitude 1.5mm, 2 hours each in X/Y/Z direction
Impact Resistance 500m/S2, X,Y,Z direction each 3 times
Isulation Resistance Above 20MΩ(DC 500V Megger)
Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger quantities orders
Q : Can I get a sample?
A : Of course, but you need to pay the sample fee
Q : When will you ship my order?
A : 3 day shipping guarantee for stock item and within 15 days for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
