Specifications
Brand Name :
BOJKE
Model Number :
BGX-40N/BGX-40P
Certification :
CE
Place of Origin :
Dongguan China
MOQ :
1pcs
Price :
$20.8
Payment Terms :
T/T
Supply Ability :
150k
Delivery Time :
5~8 work days
Packaging Details :
PP bag with carton box;
Power supply :
DC 12~24V
Light source :
660nm Red Laser
Light spot :
1x2mm
Output :
NPN/PNP
Name :
Photoelectric Sensors
Description
Product Name laser photo sensor
Material PC case

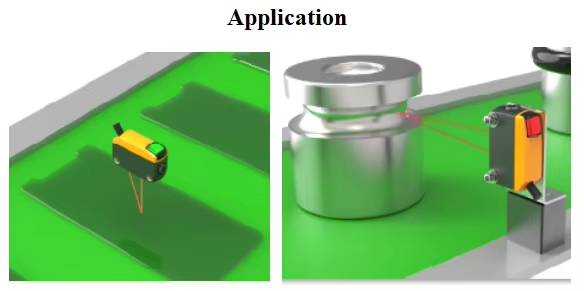

Function detection presence and absence

Background Suppression Photoelectric Sensors 30mm-300mm Range Detection Presence

photoelectric sensors can be divided into small-sized, compact, cylindrical according to the sensor shape; They can also be divided into diffuse reflection, retro-reflection, polarized reflection, convergent reflection, through beam, BGS etc. according to detection type. The sensing distance is adjustable, easy to set up. Short-circuit protection and reverse polarity protection allow the sensors to handle complex working conditions. Cable and connector connections are available for easy installation. Metal housing products are sturdy and durable to meet the requirements of special applications, while the plastic housing products are economical and easy to install. Light-ON / Dark-ON switchable to meet different signal acquisition needs; built-in power supply options of DC universal power supply.

Background suppression type,

detection distance: 30~400mm

NPN/PNP light on/dark on output.

Laser spot, high positioning accuracy.

Model BGX-40N/BGX-40P
Detection Type diffuse reflection, background suppression (Not affected by the color of the detected object)
Detection Range 30~400mm adjustable
Light Spot Size 1X2mm(300mm)
Tolerance <20%
Resolution Ratio bigger than Ø5 opaque objects
Repeat Accuracy <5%
Sensitivity Adjustment Multi turn knob adjustment
Output Mode NPN open collector
Mode Light.on / Dark.on switchable
Response Time <500㎲
Response Frequency 700Hz
Light Source 650nm laser
Operation Voltage DC 12~24V ±10%
Residue Voltage <1.5V(load current 100mA, 2 meter cable)
Max load current 100mA
Consumation current <15mA
Ambient Illumination Incandescent lamp ≤ 3000Lux; Sunlight ≤ 10000Lux
Ambient Temperature operation:-10℃~55℃；storage:-25℃~75℃,no freezing
Ambient Humidity operation: 35%~85% RH；storage:35%~95% RH no condensation
Protection Circuit polarity reversal protection/surge protection/short circuit protection
Protection Degree IP65
Indicatior Red: output by black cable
Green: output by white cable
Connection Cable-Type 4-core, 2 meter standard cable
Housing material ABS
Withstand Voltage AC 500V, 50/60Hz, 1 minute
Vibration Resistance 10～55Hz, dual amplitude 1.5mm, X/Y/Z directions each 2 hours
Shock Resistance 500m/S2, X,Y,Z directions each 3 times
Insulation Impedance Above 20M Ω (DC 500V megohmmeter)
