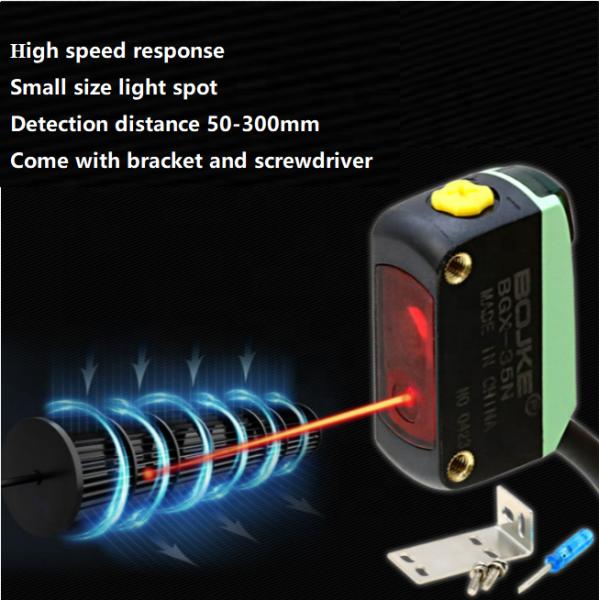

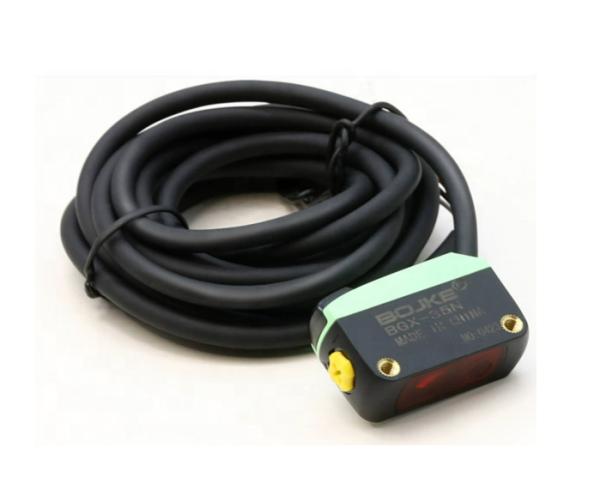

Compact Transmissive Diffuse Reflection Photoelectric Sensor Switch
Compact Transmissive Diffuse Reflection Photoelectric Sensor Switch
Compact Transmissive Diffuse Reflection Photoelectric Sensor Switch
Compact Transmissive Diffuse Reflection Photoelectric Sensor Switch
Compact Transmissive Diffuse Reflection Photoelectric Sensor Switch
Compact Transmissive Diffuse Reflection Photoelectric Sensor Switch
Compact Transmissive Diffuse Reflection Photoelectric Sensor Switch
Compact Transmissive Diffuse Reflection Photoelectric Sensor Switch
Compact Transmissive Diffuse Reflection Photoelectric Sensor Switch
Compact Transmissive Diffuse Reflection Photoelectric Sensor Switch
Specifications
Place of Origin :
Guangdong, China
Brand Name :
BOJKE
MOQ :
1
Model Number :
BGX-35N/BGX-35P
Certification :
CE
Price :
$7.8
Payment Terms :
T/T
Supply Ability :
150k
Delivery Time :
5~8 work days
Packaging Details :
kraft paper box with carton box;
Product name :
photoelectric sensor switch

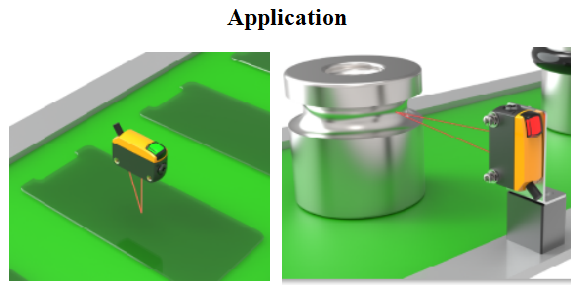

Usage :
Sensing and detection
Size :
22 x 35.65 mm
Detection distance :
60~400mm
Light source :
laser 660nm
Output :
NPN/PNP
Description
Product Description
Product Name
photoelectric sensor
Housing Material
PC
Function
laser sensing

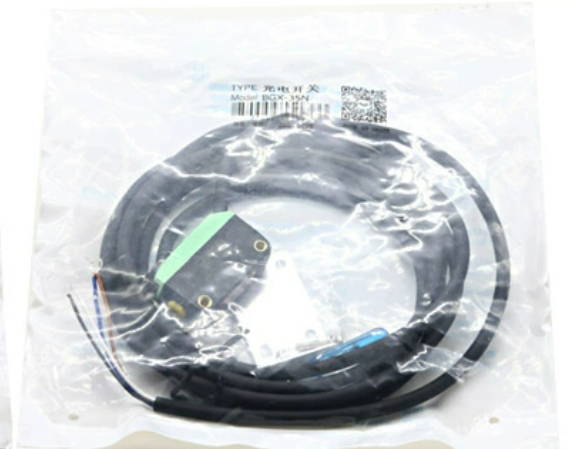

Package
kraft box

Compact Transmissive Diffuse Reflection Photoelectric Sensor Switch
Model No BGX-35N/BGX-35P

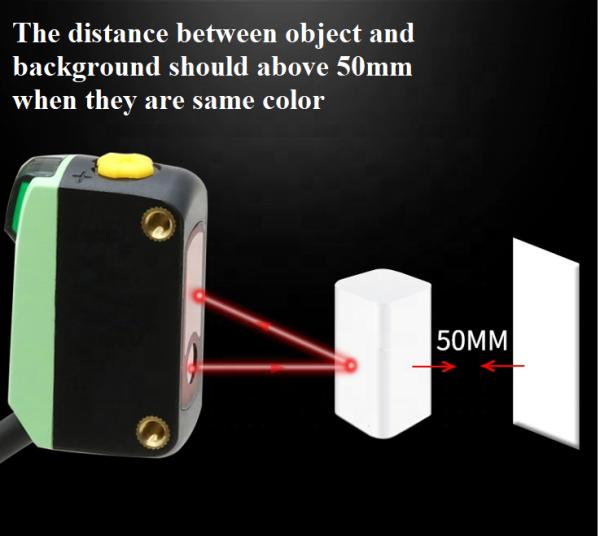

Detection Type diffuse reflection
Detection Range 60~300mm adjustable
Light Spot Size 1X2mm(400mm)
Hysteresis Range <20%
detection object bigger than Ø5mm opaque objects
Repeat Accuracy <5%
sensitivity adjustment Multi turn knob adjustment
Output type NPN open collector
Switching Mode Light.on / Dark.on switchable
Response Time <500㎲
Response Frequency 700HZ
Light Source laser 650nm
Operation Voltage DC 12~24V ±10%
Residue Voltage <1.5V
Max Load Current 100mA
Consumption (no-load) Current <15mA
Ambient Illumination Incandescent lamp ≤ 3000Lux; Sunlight ≤ 10000Lux
Ambient Temperature operation:-10℃~55℃；storage:-25℃~75℃,no freezing
Ambient Humidity operation: 35%~85% RH；storage:35%~95% RH no condensation
Protection Circuit polarity reversal protection/surge protection/short circuit protection
Protection Level IP66
Indicator Light Red: output by black cable
Green: output by white cable
Connection Type 4 core, 2 meter standard
Housing Material ABS
Withstand Voltage AC 500V, 50/60Hz, 1 minute
Vibration Resistance 10～55Hz, dual amplitude 1.5mm, X/Y/Z directions each 2 hours
Impact Resistance 500m/S2, X,Y,Z directions each 3 times
Insulation Impedance 2Above 20M Ω (DC 500V megohmmeter)
FAQ
Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger quantities orders
Q : Can I get a sample?
A : Of course, but you need to pay the sample fee
Q : When will you ship my order?
A : 3 day shipping guarantee for stock item and within 15 days for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
