Specifications
MOQ :
2
Price :
US$385
Brand Name :
Bestone
Model Number :
VM-6380
Certification :
CE
Place of Origin :
China
Payment Terms :
T/T,Western Union
Supply Ability :
more than 500pccs per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic carrying case and white paper box
Frequency Range :
Acceleration: 10 Hz ~ 1k Hz 10 Hz ~ 10k Hz
Accuracy :
5 % of Reading + 2 Digits
Data Output :
RS-232
Transport Package :
Gift Box and Carrying Case
HS Code :
9031809090
Model :
VM-6380
Description
3-Axis Vibration Meter VM-6380
Professional 3-axis piezoelectric accelerometer sensor for measuring displacement, velocity, and acceleration in three dimensions simultaneously.
Applications
Used for measuring periodic motion to detect imbalance and deflection in moving machinery. Specifically designed for comprehensive mechanical vibration measurement to provide data for quality control, runtime monitoring, and equipment maintenance.
  • VM-6380 displays 3 same parameters simultaneously for 3-dimensional measurement
  • VM-6370 displays displacement, velocity, and acceleration parameters simultaneously
Key Features
  • 3-dimensional detection for comprehensive vibration analysis
  • Compliant with ISO 2954 for periodic measurements
  • Detects out-of-balance, misalignment, and mechanical faults in rotating machines
  • Designed for easy on-site vibration measurement
  • High-quality accelerometer for accurate and repeatable measurements
  • Wide frequency range (10Hz~10kHz) in acceleration mode
  • Optional headphones for use as electronic stethoscope
  • RS-232 data output for PC connectivity
  • Bluetooth data output option available
Vibration Standards (ISO/IS2373 Motor Quality)
Quality Rank Rev(rpm) H:high of shaft(mm) Maximum vibration velocity rms(mm/s)
Normal 600~3600 80<H<132 1.8
132<H<225 2.8
225<H<400 4.5
Good(R) 600~1800 80<H<132 0.71
600~1800 132<H<225 1.12
1800~3600 80<H<132 1.12
1800~3600 132<H<225 1.8
Excellent(S) 600~1800 80<H<132 0.45
600~1800 132<H<225 0.71
1800~3600 80<H<132 0.71
1800~3600 132<H<225 1.12
Technical Specifications
Sensor Piezoelectric Transducer
Measuring Range - Acceleration 0.1~400m/s² (0.3~1312ft/s², 0.0~40g Equivalent Peak)
Measuring Range - Velocity 0.01~400mm/s (0.004~16.0inch/s True RMS)
Measuring Range - Displacement 0.001~4.0 mm (0.04~160.0 mil Equivalent Peak-peak)
Frequency Range - Acceleration 10Hz~10kHz
Frequency Range - Velocity 10Hz~1kHz
Frequency Range - Displacement 10Hz~1kHz
Accuracy 5% of Reading + 2 digits
Operating Temperature 0~50ºC
Operating Humidity <90%RH
Power Supply 2x1.5V AA (UM-3) Battery
Dimensions 137x76x32mm
Weight 425g (Not Including Batteries)

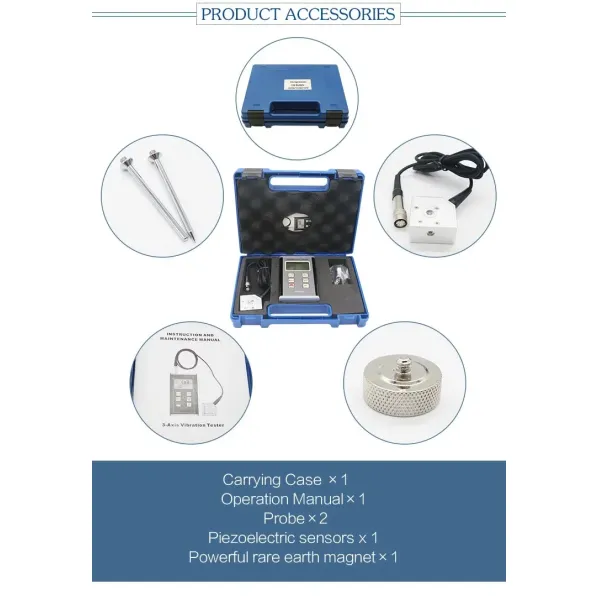

Standard Accessories
  • Main Unit
  • Piezoelectric Transducer
  • Powerful Rare Earth Magnet
  • Probe (Cone) & Probe (Spherical)
  • Carrying Case (B04)
  • Manual Book
Optional Accessories
  • Headset
  • RS-232C Data Cable with Software
  • Bluetooth Data Adapter with Software
Accessory Details
Accessories Diagram Usage Situations Usage Method
3-Axis Piezoelectric Accelerometer Piezoelectric Accelerometer 3 Axis Vibration Meter VM-6380 10Hz~10kHz RS-232 Three dimensional vibration parameters measurement of objects Used with Powerful Rare Earth Magnet & Stinger Probe
Piezoelectric Transducer Piezoelectric Accelerometer 3 Axis Vibration Meter VM-6380 10Hz~10kHz RS-232 General vibration parameters measurement of objects Used with Powerful Rare Earth Magnet & Stinger Probe
Rare Earth Magnet Piezoelectric Accelerometer 3 Axis Vibration Meter VM-6380 10Hz~10kHz RS-232 Magnetic objects with flat surface, roughness of less than Ra1.6, acceleration ≤ 20m/s Connect the vibration sensor with Rare Earth Magnet using the M5 bolt included. Place the Rare Earth Magnet to the object to be tested
Stinger Probe (Ball / Cone) Piezoelectric Accelerometer 3 Axis Vibration Meter VM-6380 10Hz~10kHz RS-232 Frequency is less than 1KHz and vibration energy is not small Connect the needle to the sensor directly using probe groupware
