Specifications
MOQ :
1
Price :
negotiable
Brand Name :
Bestone
Model Number :
VM-6360
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
more than 1000pcs per month
Delivery Time :
5-8 working days
Packaging Details :
PP box and white box and outer carton
Model NO. :
VM-6360
Frequency Range :
Acceleration: 10 Hz ~ 1k Hz 10 Hz ~ 10k Hz
Accuracy :
5 % of Reading + 2 Digits
Transport Package :
Gift Box and Carrying Case
Specification :
CE, ROHS
Trademark :
BESTONE
Origin :
China
HS Code :
9031809090
Production Capacity :
500000pieces/Year
Description

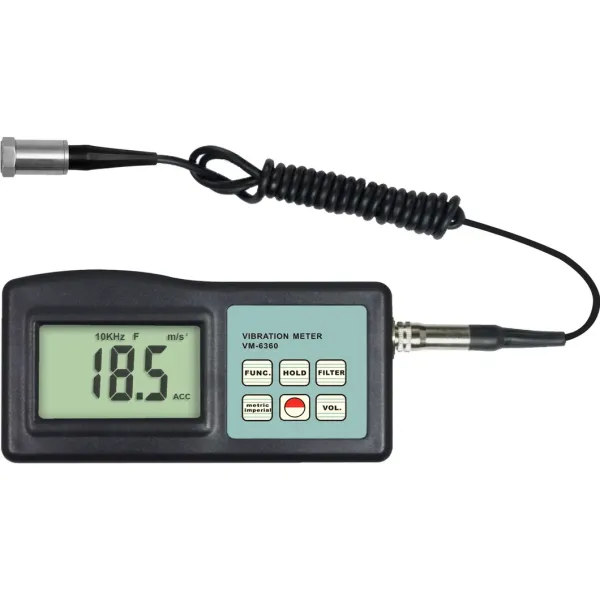

Digital Vibration Meter Vibrometer Gauge Tester Analyzer (VM-6360)
Applications

Designed for measuring periodic motion and detecting imbalance and deflection in moving machinery. Provides essential data for quality control, runtime monitoring, and equipment maintenance. Features a wide frequency range (10Hz-10kHz) in acceleration mode.

Key Features
  • Compliant with ISO 2954 for periodic measurements and mechanical fault detection
  • Ideal for on-site vibration measurement in rotating machinery
  • High-quality accelerometer for accurate, repeatable measurements
  • Optional headphones for use as electronic stethoscope

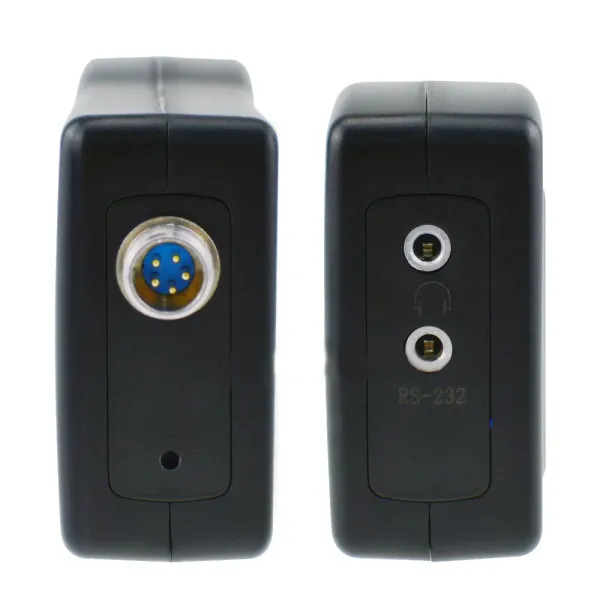

  • RS-232 data output for PC connectivity
  • Bluetooth data output option available
Vibration Standard

ISO/IS2373 Motor Quality Standard According As Vibration Velocity

Quality Rank Rev(rpm) H:high of shaft(mm) Maximum vibration velocity rms(mm/s)
Normal 600~3600 80<H<132 1.8
Good(R) 600~1800 132<H<225 2.8
1800~3600 225<H<400 4.5
Excellent(S) 600~1800 0.71 1.12
1800~3600 1.12 1.8
Technical Specifications
Parameter Specification
Sensor Piezoelectric Transducer
Measuring Range Acceleration: 0.1~400m/s² Equivalent Park
Velocity: 0.01~400mm/s True RMS
Displacement: 0.001~4.0mm Equivalent Peak-peak
Frequency Range Acceleration: 10Hz~10kHz
Velocity: 10Hz~1kHz
Displacement: 10Hz~1kHz
Accuracy 5% of Reading+2 digits
Operating Conditions Temperature: 0~50ºC
Humidity: <90%RH
Power Supply 4x1.5V AAA(UM-4)Battery
Dimensions 124x62x30mm
Weight 120g (Not Including Batteries)

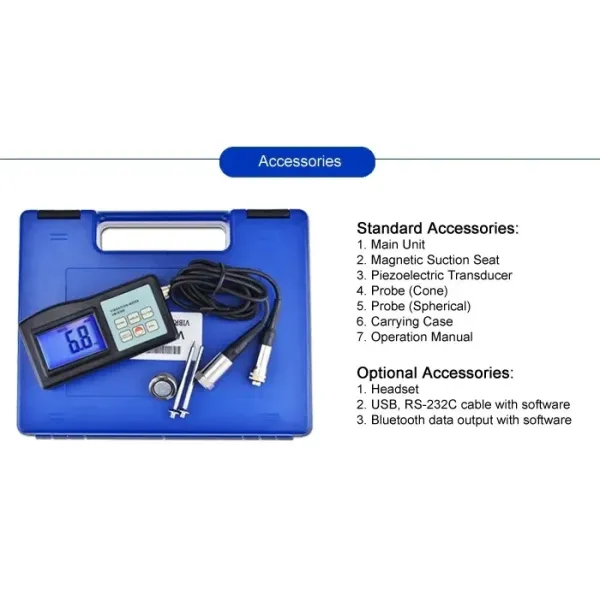

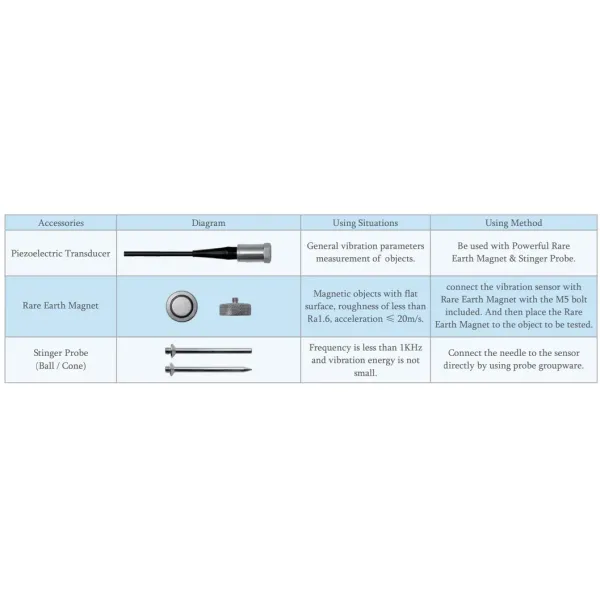

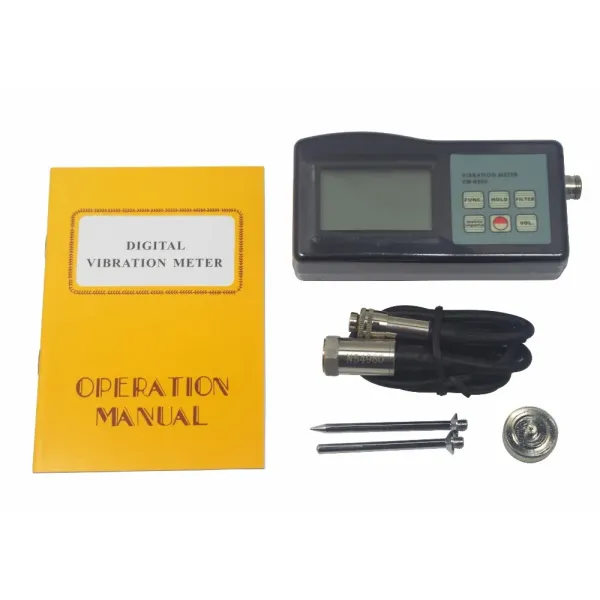

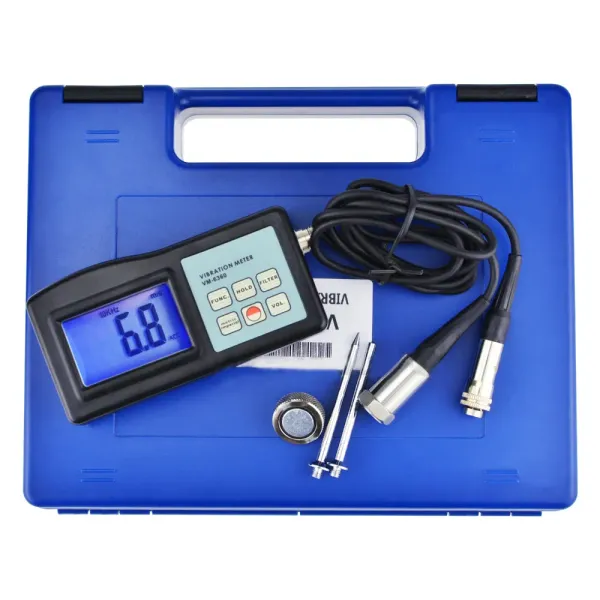

Standard Accessories
  • Main Unit

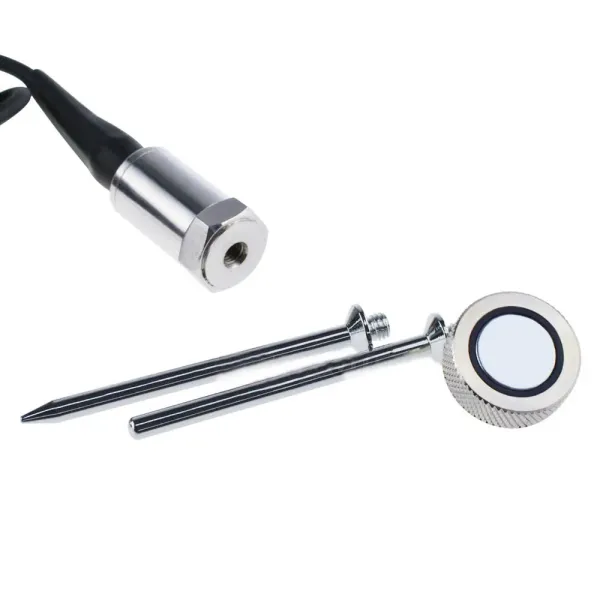

  • Piezoelectric Transducer
  • Powerful Rare Earth Magnet
  • Probe (Cone) & Probe (Spherical)
  • Carrying Case (B04)
  • Manual Book
Optional Accessories
  • Headset
  • RS-232C Data Cable with Software
  • Bluetooth Data Adapter with Software
