WT63B Color Screen LCD Digital Vibration Analysis Meter for Acceleration Measurement
WT63B Color Screen LCD Digital Vibration Analysis Meter for Acceleration Measurement
WT63B Color Screen LCD Digital Vibration Analysis Meter for Acceleration Measurement
WT63B Color Screen LCD Digital Vibration Analysis Meter for Acceleration Measurement
WT63B Color Screen LCD Digital Vibration Analysis Meter for Acceleration Measurement
WT63B Color Screen LCD Digital Vibration Analysis Meter for Acceleration Measurement
WT63B Color Screen LCD Digital Vibration Analysis Meter for Acceleration Measurement
WT63B Color Screen LCD Digital Vibration Analysis Meter for Acceleration Measurement
WT63B Color Screen LCD Digital Vibration Analysis Meter for Acceleration Measurement
WT63B Color Screen LCD Digital Vibration Analysis Meter for Acceleration Measurement
Specifications
MOQ :
20
Price :
EXW US$79
Brand Name :
Bestone,Wintact
Model Number :
WT63B
Certification :
CE,ROHS
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
more than 1000pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Color box and PP box and outer carton,67.5*45.8*30.2cm/ctn.20pcs/ctn.20kgs/ctn.
Model NO. :
WT63B
Measure Range :
Acceleratlon:0.1-199.9m/s²,Velocity:0.1-199.9mm/s Displacement;0.001-1.999mm
LCD Display :
Color Screen LCD
Accuracy :
±10%
Acceleration :
20Hz~1kHz (Lo);1kHz~10kHz (Hi)
Velocity :
20Hz~1kHz (Lo)
Displacement :
20Hz~1kHz (Lo)
Humidity Range for Operation :
30~90%Rh
Operation Temperature :
0~40 degree
Transport Package :
Gift Box and Carrying Case
Specification :
CE, ROHS, Plastic and stainless steel
HS Code :
9031809090
Description
Digital Vibration Meter Analyzer Acceleration with Color Screen LCD Wt63b

This professional vibration meter utilizes piezoelectric effect technology with artificial polarized ceramic design. Ideal for monitoring various vibrating mechanical facilities, particularly for vibration measurement of rotating and reciprocating machinery.

Measures acceleration, velocity, and displacement - widely used in mechanical manufacturing, power metallurgy, and general aviation industries.

Key Features:
  • Acceleration, velocity and displacement measurement.
  • Vibration frequency can be selected.
  • Low battery indicator
  • Automatic shutdown.
  • LCD Backlight.

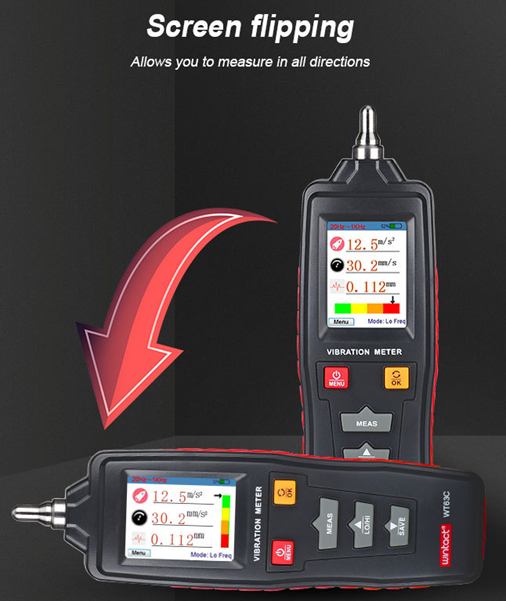

  • Screen flipping.
    WT63B Color Screen LCD Digital Vibration Analysis Meter for Acceleration Measurement
  • Curve display.

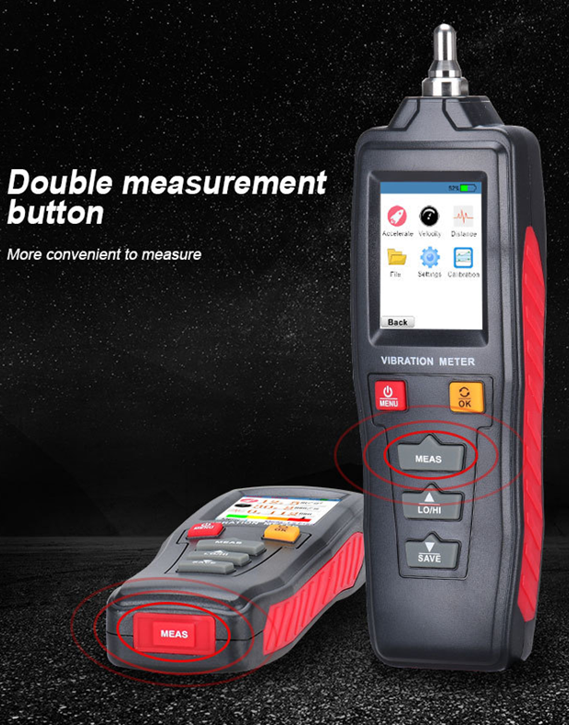

  • Double measurement(button).
    WT63B Color Screen LCD Digital Vibration Analysis Meter for Acceleration Measurement

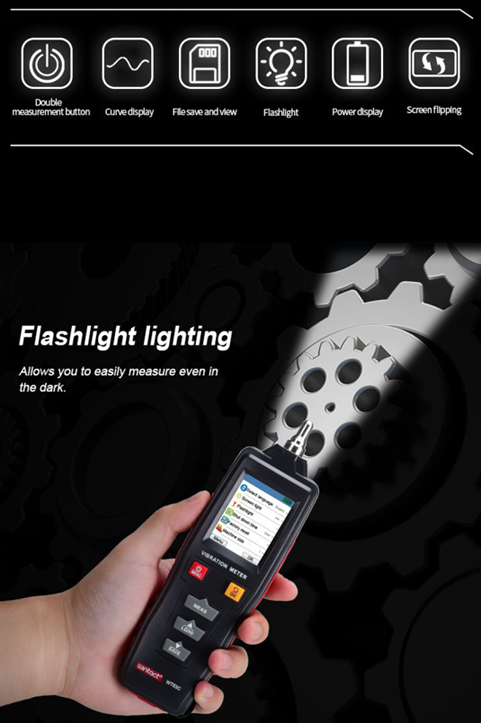

  • Flashlight.
    WT63B Color Screen LCD Digital Vibration Analysis Meter for Acceleration Measurement

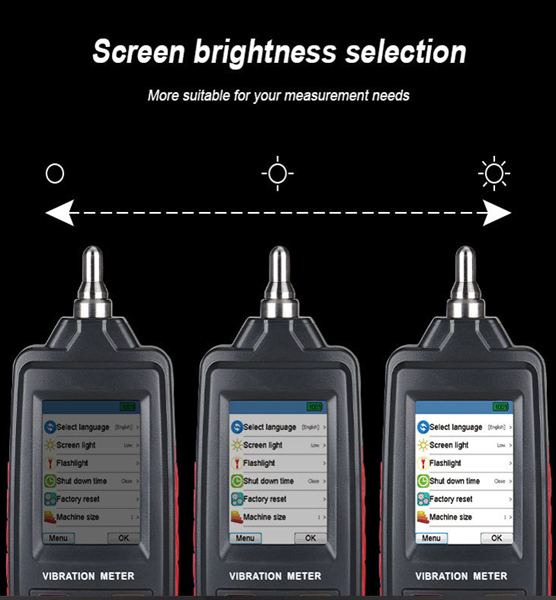

  • Screen brightness.
    WT63B Color Screen LCD Digital Vibration Analysis Meter for Acceleration Measurement
  • Machinery grade.
  • Color screen.
  • Store and view files.
WT63B Color Screen LCD Digital Vibration Analysis Meter for Acceleration Measurement
Technical Specifications:

Model

WT63A

WT63B

WT63C

Vibration pickup

Piezoelectric ceramic accelerometer (shear-typey)

Measurement range

Acceleratlon:0.1-199.9m/s²
Velocity:0.1-199.9mm/s
Displacement:0.001-1.999mm

Acceleratlon:0.1-199.9m/s²
Velocity:0.1-199.9mm/s
Displacement:0.001-1.999mm
Frequency:0Hz-4KHz

Measurement accuracy

±5%+2digits

±10%

±10%

Measurement frequency

range of acceleration

10Hz~1KHz (LO)
1KHz~15KHz (HI)

20Hz~1KHz (LO)
1KHz~10KHz (HI)

10Hz-1KHz (LO)
1KHz-4KHz (HI)

Measurement frequency

range of velocity

10Hz~1KHz (LO)

20Hz~1KHz (LO)

10Hz~1KHz (LO)

Measurement frequency range of displacement

10Hz~1KHz (LO)

20Hz~1KHz (LO)

10Hz~1KHz (LO)

LCD display

3 1/2 digits display

Color display

Color display

Displays update cycle

1 second

Maximum groups of

data storage

n/m

7 groups

500 pieces

(5 groups* 100 pieces/group)

Power supply

9V battery

1.5V AAA battery*2

1.5V AAA battery*2

Temperature range

for operation

0~40°C

Humidity range for

operation

30~90%RH

Dimension

67x30x183mm

180x54x30mm

180x54x30mm
