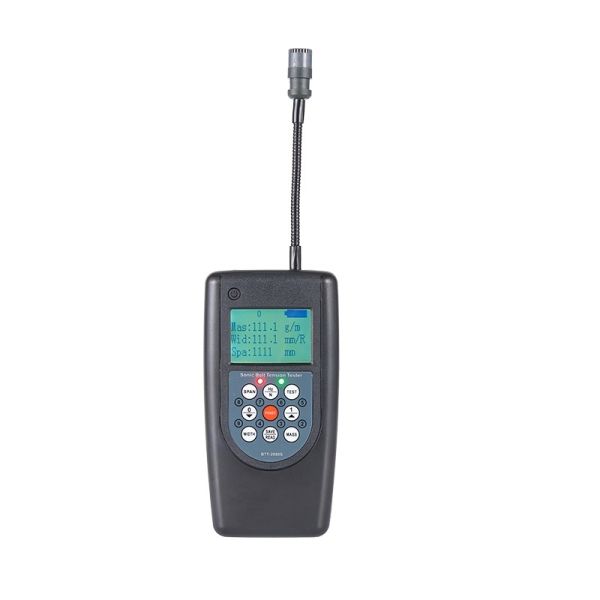

BTT-2880 Digital Belt Tension Gauge with Colored LED Indication RS-232 Bluetooth
BTT-2880 Digital Belt Tension Gauge with Colored LED Indication RS-232 Bluetooth
BTT-2880 Digital Belt Tension Gauge with Colored LED Indication RS-232 Bluetooth
BTT-2880 Digital Belt Tension Gauge with Colored LED Indication RS-232 Bluetooth
BTT-2880 Digital Belt Tension Gauge with Colored LED Indication RS-232 Bluetooth
BTT-2880 Digital Belt Tension Gauge with Colored LED Indication RS-232 Bluetooth
BTT-2880 Digital Belt Tension Gauge with Colored LED Indication RS-232 Bluetooth
BTT-2880 Digital Belt Tension Gauge with Colored LED Indication RS-232 Bluetooth
BTT-2880 Digital Belt Tension Gauge with Colored LED Indication RS-232 Bluetooth
BTT-2880 Digital Belt Tension Gauge with Colored LED Indication RS-232 Bluetooth
BTT-2880 Digital Belt Tension Gauge with Colored LED Indication RS-232 Bluetooth
BTT-2880 Digital Belt Tension Gauge with Colored LED Indication RS-232 Bluetooth
Specifications
MOQ :
2
Price :
negotiable
Brand Name :
Bestone
Model Number :
BTT-2880
Certification :
CE
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
more than 100pcs per month
Delivery Time :
5-8 working days
Packaging Details :
plastic carrying case and white paper box
Tension Indicator :
Colored LED Indication of High,Low and Ok
Resolution :
±1(Least Significant Digit of Units)
Accuracy :
±5% of Full-Scale
Dimensions :
135X62X33 mm
Weight :
335g(Not Including Batteries)
Measurement Range 1 :
0~750n(Newtons)
Measurement Range 2 :
0~120lb(Pounds)
Measurement Range 3 :
0~77kg(Kilograms)
Measurement Range 4 :
0~114 Seems
Belt Width :
up to 36 mm
Overload Alarm :
750n
Maximum Load :
850n
Description
Product Overview

The BTT-2880 Digital Belt Tension Gauge is a precision instrument designed for accurate belt tension measurement across various industrial applications. This versatile tool can also measure tension in tapes, wires, and similar objects.

Key Features
  • Measures and adjusts tension for timing and auxiliary belts in motor vehicles and machinery
  • Displays tension in multiple standard and manufacturer-specific units
  • Programmable tension limits with visual and audible indication for proper tension range
  • RS-232 data output for PC connectivity
  • Optional Bluetooth data output capability
    Tension checking should always be carried out in accordance with the vehicle manufacturers' instructions.
Technical Specifications
Display LCD
Tension Indicator Colored LED Indication of High, Low and OK
Measurement Range 0~750N (Newtons)
0~120lb (Pounds)
0~77kg (Kilograms)
0~114 Seems
Belt Width Up to 36 mm
Overload Alarm 750N
Maximum Load 850N
Resolution ±1 (Least Significant Digit of Units)
Accuracy ±5% of full-scale
Data Output USB, RS-232, Bluetooth
Audible Warning Piezoelectric Sounder
Power Supply 4x1.5V AAA (UM-4) Battery
Dimensions 135x62x33 mm
Weight 335g (Not Including Batteries)
Standard Accessories
  • Main Unit
  • Measuring Head
  • Carrying Case (B04)
  • Operation Manual
Optional Accessories
  • RS-232C Cable with Software
  • Bluetooth Data Adapter with Software
Measuring Head Dimensions
