Specifications
MOQ :
2
Price :
negotiable
Brand Name :
Bestone
Model Number :
BTT-2880R8
Certification :
CE
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
more than 100pcs per month
Delivery Time :
5-8 working days
Packaging Details :
plastic carrying case and white paper box
Display :
Digital
Customized :
Customized
Display Error :
±1Hz
Measurement Range :
10Hz~800Hz
Operating Temperature Range :
+10°c~50°c
Transportation Temperature Range :
-5°c~70°c
Optical Path Measurement Distance :
3mm~20mm
Description
Infrared Belt Tension Tester BTT-2880R8
Product Features
  • Laser sensor technology for direct measurement, more convenient than mechanical sensors
  • Compact split sensor design ideal for measuring in narrow spaces
  • Dual sensor options: integrated sensor and split sensor
  • Display readings in metric or imperial units
  • Automatic power off function for energy efficiency
Measurement Principle
This tension tester measures the natural vibration frequency of belts through laser emission and reception technology. The system calculates belt tension values by combining input belt mass and free belt length parameters.
Technical Specifications
Measurement Range 10Hz~800Hz
Input Range Free Belt Length Max 99.99m | Belt Mass Max 9.999kg/m
Digital Sampling Error <1%
Display Error ±1Hz
Total Error <5%
Operating Temperature Range +10°C~50°C
Transportation Temperature Range -5°C~70°C
Units of Measurement Metric: m, kg/m, N | Imperial: Inch, lbs/foot, lbf
Optical Path Measurement Distance 3mm~20mm
Depth of Split Sensor Approximately 66mm
Power Supply 4x1.5V AAA (UM-4) Battery
Dimensions Main Unit: 178mm x 72mm x 34mm | Sensor: 124mm x 21mm x 12mm
Weight 180g (Not Including Battery)

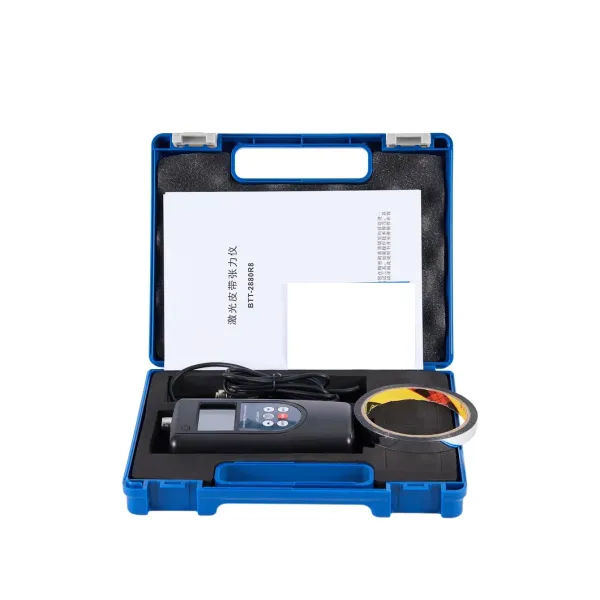

Standard Accessories
  • Main Unit
  • Split Sensor
  • Carrying Case (B04)
  • Operation Manual
Product Images
BTT-2880R8 Infrared Belt Tension Tester Automatic Power Off for Narrow Spaces BTT-2880R8 Infrared Belt Tension Tester Automatic Power Off for Narrow Spaces BTT-2880R8 Infrared Belt Tension Tester Automatic Power Off for Narrow Spaces BTT-2880R8 Infrared Belt Tension Tester Automatic Power Off for Narrow Spaces BTT-2880R8 Infrared Belt Tension Tester Automatic Power Off for Narrow Spaces BTT-2880R8 Infrared Belt Tension Tester Automatic Power Off for Narrow Spaces
