Infrared Belt Tension Tester Automatic Power Off with Laser Sensor / Split Sensor
Infrared Belt Tension Tester Automatic Power Off with Laser Sensor / Split Sensor
Infrared Belt Tension Tester Automatic Power Off with Laser Sensor / Split Sensor
Infrared Belt Tension Tester Automatic Power Off with Laser Sensor / Split Sensor
Infrared Belt Tension Tester Automatic Power Off with Laser Sensor / Split Sensor
Infrared Belt Tension Tester Automatic Power Off with Laser Sensor / Split Sensor
Infrared Belt Tension Tester Automatic Power Off with Laser Sensor / Split Sensor
Infrared Belt Tension Tester Automatic Power Off with Laser Sensor / Split Sensor
Infrared Belt Tension Tester Automatic Power Off with Laser Sensor / Split Sensor
Infrared Belt Tension Tester Automatic Power Off with Laser Sensor / Split Sensor
Specifications
MOQ :
2
Price :
negotiable
Brand Name :
Bestone
Model Number :
BTT-2880R5
Certification :
CE
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
more than 100pcs per month
Delivery Time :
5-8 working days
Packaging Details :
more than 100pcs per month
Display :
Digital
Customized :
Customized
Display Error :
±1Hz
Measuring Range :
10Hz~500Hz
Operating Temperature Range :
+10°c~50°c
Transportation Temperature Range :
-5°c~50°c
Optical Path Measurement Distance :
3mm~20mm
Description
Infrared Belt Tension Tester BTT-2880R5
Applications

The Infrared Belt Tension Meter provides quick and accurate measurement of belt tension for motors and various industrial machinery applications.

Key Features
  • Laser sensor technology for direct measurement, offering greater convenience than mechanical sensors
  • Compact split sensor design ideal for measuring in confined or narrow spaces
  • Dual sensor options: integrated sensor and split sensor for versatile applications
  • Flexible measurement units: metric or imperial display options
  • Automatic power-off function for energy efficiency
Measurement Principle

This advanced tensiometer utilizes laser emission and reception to measure the natural vibration frequency of belts. The system then calculates precise tension values by combining input parameters for belt mass and free belt length.

Technical Specifications
Parameter Specification
Measurement Range 10~500Hz
Input Range Free Belt Length: Max 99.99 m
Belt Mass: Max 9.999 kg/m
Digital Sampling Error <1%
Display Error ±1Hz
Total Error <5%
Operating Temperature +10~50°C
Transportation Temperature -5~50°C
Display LCD
Measurement Units Metric: m, kg/m, N
Imperial: Inch, lbs/foot, lbf
Optical Path Distance 3~20mm
Split Sensor Depth Approximately 66mm

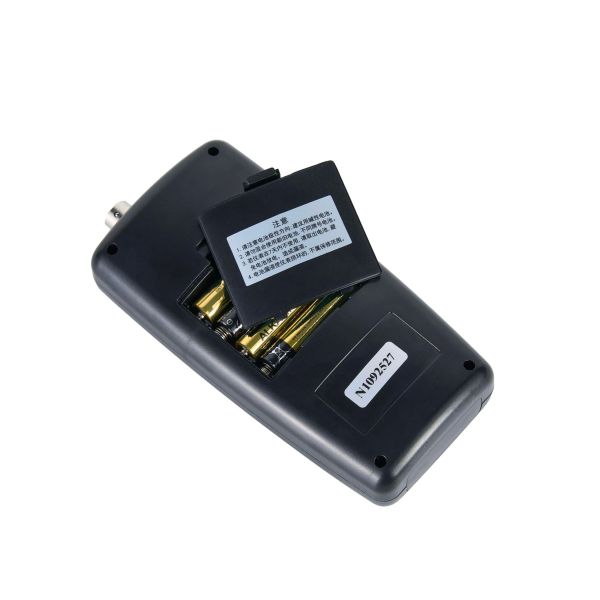

Power Supply 4x1.5V AAA (UM-4) Battery
Dimensions Main Unit: 178x72x34 mm
Sensor: 124x21x12mm
Weight 180g (Excluding Battery)

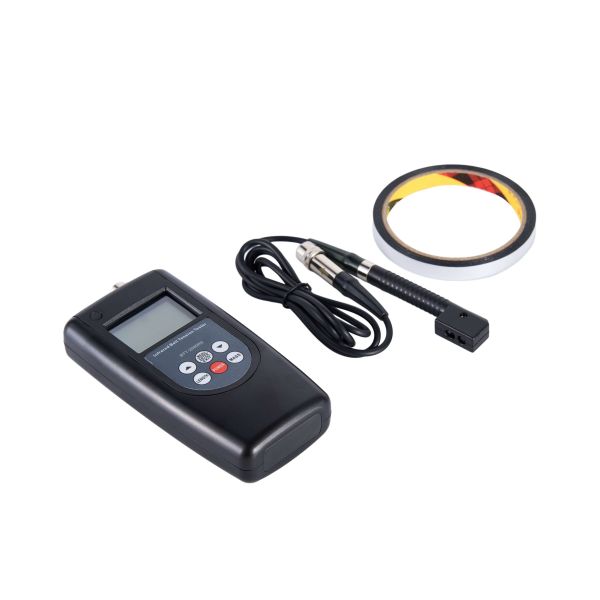

Standard Package Contents
  • Main Unit
  • Split Sensor
  • Carrying Case (B04)
  • Operation Manual

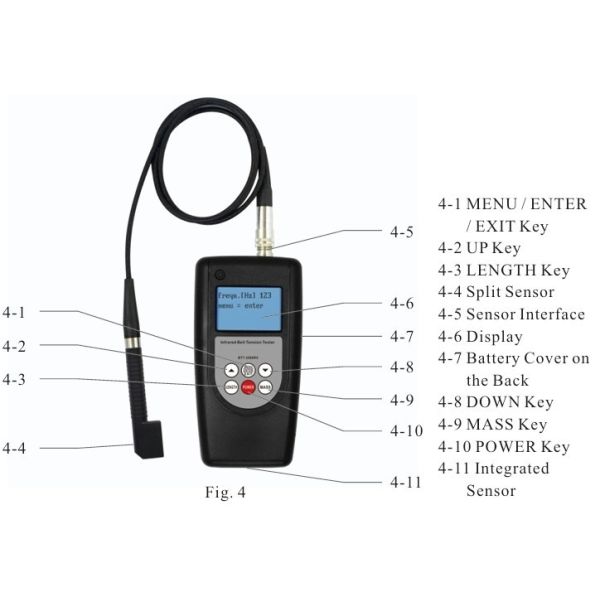

Panel Description
Infrared Belt Tension Tester Automatic Power Off with Laser Sensor / Split Sensor
Infrared Belt Tension Tester Automatic Power Off with Laser Sensor / Split Sensor
