BTT-2880S Acoustic Belt Tension Tester 680Hz Maximum Frequency with Adjustable Probe
BTT-2880S Acoustic Belt Tension Tester 680Hz Maximum Frequency with Adjustable Probe
BTT-2880S Acoustic Belt Tension Tester 680Hz Maximum Frequency with Adjustable Probe
BTT-2880S Acoustic Belt Tension Tester 680Hz Maximum Frequency with Adjustable Probe
BTT-2880S Acoustic Belt Tension Tester 680Hz Maximum Frequency with Adjustable Probe
BTT-2880S Acoustic Belt Tension Tester 680Hz Maximum Frequency with Adjustable Probe
BTT-2880S Acoustic Belt Tension Tester 680Hz Maximum Frequency with Adjustable Probe
BTT-2880S Acoustic Belt Tension Tester 680Hz Maximum Frequency with Adjustable Probe
BTT-2880S Acoustic Belt Tension Tester 680Hz Maximum Frequency with Adjustable Probe
BTT-2880S Acoustic Belt Tension Tester 680Hz Maximum Frequency with Adjustable Probe
Specifications
MOQ :
2
Price :
negotiable
Brand Name :
Bestone
Model Number :
BTT-2880S
Certification :
CE
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
more than 100pcs per month
Delivery Time :
5-8 working days
Packaging Details :
plastic carrying case and white paper box
Measuring Range :
10Hz-680Hz
Belt Free Strand Length :
Max 999.9 mm
Belt Width :
Max 999.9 mm/R
Belt Mass :
Max 999.9 G/M
Precision :
±1Hz<100Hz and ±1%>100Hz
Description

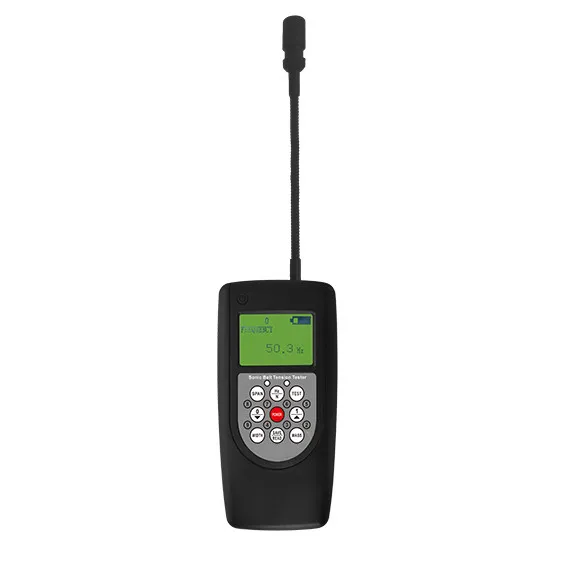

Acoustic Belt Tension Tester BTT-2880S
This precision instrument measures the vibration frequency (in Hertz) of transmission belts during impact or rapid movement, providing accurate tension analysis for industrial applications.
Key Features
  • Adjustable probe for versatile measurement applications
  • Storage capacity for 20 belt parameter sets
  • Maximum frequency measurement: 680 Hz
  • Automatic shutdown functionality
Measurement Principle
The BTT-2880S operates on the principle of "transverse vibration of string" theory. The tester detects belt vibrations and converts them to frequency readings. By inputting mass, width, and span parameters, the tension relationship is calculated using the formula:
T = 4 × M × W × S² × F² × 10⁻⁹
Technical Specifications
Measuring Range 10Hz - 680Hz
Belt Free Strand Length Max 999.9 mm
Belt Width Max 999.9 mm/R
Belt Mass Max 999.9 g/m
Precision ±1Hz <100Hz and ±1% >100Hz
Digital Sampling Accuracy < 1%
Display Accuracy ±1Hz
Overall Accuracy < 5%
Operating Temperature +10°C ~ +50°C
Transport Temperature -5°C ~ +70°C
Display LCD
Measurement Unit Hz/N
Power Supply 4 × 1.5V AAA Batteries
Housing Material Plastic (ABS)
Dimensions 140mm × 72mm × 34mm
Package Size 248mm × 206mm × 52mm
Standard Accessories
  • Main Unit (1)
  • Operating Instructions (1 copy)
  • Portable Suitcase (1)
Product Images
BTT-2880S Acoustic Belt Tension Tester 680Hz Maximum Frequency with Adjustable Probe
