VC97 Digital Multimeter with 4000 Counts LCD True-RMS and K-type Thermocouple for Accurate Measurements
VC97 Digital Multimeter with 4000 Counts LCD True-RMS and K-type Thermocouple for Accurate Measurements
VC97 Digital Multimeter with 4000 Counts LCD True-RMS and K-type Thermocouple for Accurate Measurements
VC97 Digital Multimeter with 4000 Counts LCD True-RMS and K-type Thermocouple for Accurate Measurements
Specifications
Brand Name :
Benetech, Bestone
Model Number :
VC97
Certification :
CE,ROHS
Place of Origin :
CHINA
MOQ :
60
Price :
EXW US$8.5
Payment Terms :
T/T,Western Union
Supply Ability :
More than 10000pcs per month
Delivery Time :
3-5 working days
Packaging Details :
Color paper box
Display counts :
4000
Power supply :
2 x 1.5V AAA battery
Dimensions :
138*68*35mm
Max voltage :
1000V DC or 750V AC
Input impedance :
10MΩ
Rotation rate :
3 revolutions/second
Description
Digital Multimeter Model: VC97
Product Overview

Professional digital multimeter designed for accurate electrical measurements with comprehensive functionality and safety features.

Key Features
  • Operating environment: 600V CAT II, Pollution level: 2
  • Altitude: < 2000 m
  • Working temperature & humidity: 0℃~40℃
  • Storage temperature & humidity: -10℃~50℃
  • Max voltage between terminal and ground: 1000V DC or 750V AC
  • Protective tube protection for mA and A positions
  • Rotation rate: approximately 3 revolutions/second
  • Display: 4000 counts LCD screen with automatic unit symbols
  • Outrange indication: "OL" display
  • Automatic input polarity indication
  • Power: 2 x 1.5V AAA batteries
  • Dimensions: 138×68×35mm
Measurement Specifications
DC Voltage Measurement
Measuring Range Resolution Accuracy
400mV 0.1mV ±(0.5%Reading+8digits)
4V 1mV ±(0.5%Reading+8digits)
40V 10mV ±(0.5%Reading+8digits)
400V 100mV ±(0.5%Reading+8digits)
1000V 1mV ±(0.5%Reading+8digits)

Input impedance: 10MΩ | Maximal input voltage: 1000V DC or 750V AC valid value

AC Voltage Measurement
Measuring Range Resolution Accuracy
400mV 0.1mV ±(1% readings +10 digits)
4V 1mV ±(1% readings +10 digits)
40V 10mV ±(1% readings +10 digits)
400V 100mV ±(1% readings +10 digits)
750V 1mV ±(1% readings +10 digits)

Input impedance: 10MΩ | Maximal input voltage: 1000V DC or 750V AC valid value | Frequency response: 40Hz-2kHz True-Rms

Duty Cycle Measurement
Measuring Range Resolution Accuracy
1%~99% 0.1% ±(2.5%Reading+5 digits)

Input voltage range: 200mV-10V AC valid value | Overload protection: 250V DC/AC

Frequency Measurement
Measuring Range Resolution Accuracy
9.999Hz 0.001Hz ±(1.5%Reading +5 digits)
99.99Hz 0.01Hz ±(1.5%Reading +5 digits)
999.9Hz 0.1Hz ±(1.5%Reading +5 digits)
9.999KHz 0.001KHz ±(1.5%Reading +5 digits)
99.99KHz 0.01KHz ±(1.5%Reading +5 digits)
999.9KHz 0.1KHz ±(1.5%Reading +5 digits)
9.999MHz 0.001MHz ±(1.5%Reading +5 digits)

Overload protection: 250V DC/AC

Temperature Measurement
Measuring Range Resolution Accuracy
-20℃~1000℃ 1℃ ±(1% readings +3 digits)
-4℉~1832℉ 1℉ ±(1% readings +3 digits)

Overload protection: 250V DC/AC

Capacitor Measurement
Measuring Range Resolution Accuracy
40nF 0.01nF ±(4%Reading +5 digits)
400nF 0.1nF ±(4%Reading +5 digits)
4μ 0.001μF ±(4%Reading +5 digits)
4μF 0.01μF ±(4%Reading +5 digits)
400μF 0.1μF ±(4%Reading +5 digits)
4mF 0.001mF ±(4%Reading +5 digits)
40mF 0.01mF ±(4%Reading +10 digits)

Overload protection: 250V DC/AC

Resistance Measurement
Measuring Range Resolution Accuracy
400Ω 0.1Ω ±(0.8% Reading + 5 digits)
4kΩ 1Ω ±(0.8% Reading + 5 digits)
40kΩ 10Ω ±(0.8% Reading + 5 digits)
400kΩ 100Ω ±(0.8% Reading + 5 digits)
4MΩ 1kΩ ±(0.8% Reading + 5 digits)
40MΩ 10kΩ ±(0.8% Reading + 5 digits)

Overload protection: 250V DC/AC

DC Current Measurement
Measuring Range Resolution Accuracy
40mA 0.01mA ±(1.2% Reading + 5 digits)
400mA 0.1mA ±(1.2% Reading + 5 digits)
10A 10mA ±(3% Reading + 5 digits)

Overload Protection: Protective tube for mA measuring range (GR256/400); Protective tube for 10A measuring range (F10A/250V)

Maximal Input Voltage: mA position: 400mA DC/AC (valid value); 10A position: 10A DC/AC (valid value)

Important: When measured current exceeds 5A, continuous measurement duration should not exceed 10 seconds. Wait 1 minute before next measurement.

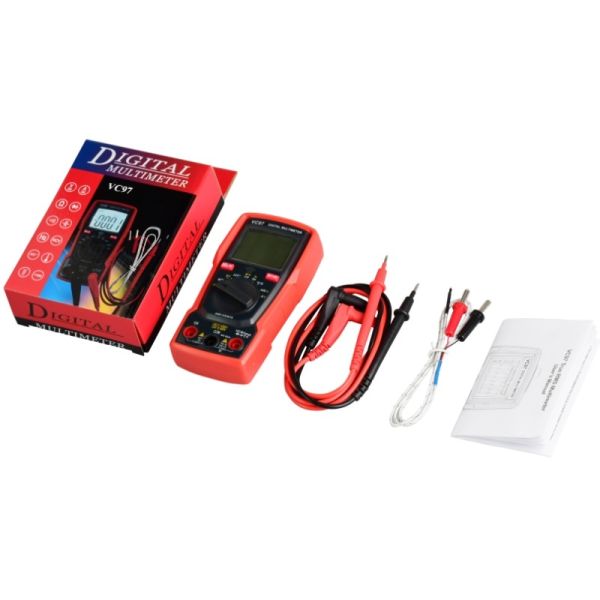

Package Contents
  • Digital Multimeter: 1 PC
  • 1.5V AAA batteries: 2 PCS (International transportation does not included)
  • English Instruction Manual: 1 PC
  • Box: 1 PC
  • K-type thermocouple: 1 PC
  • Test leads: 1 pair

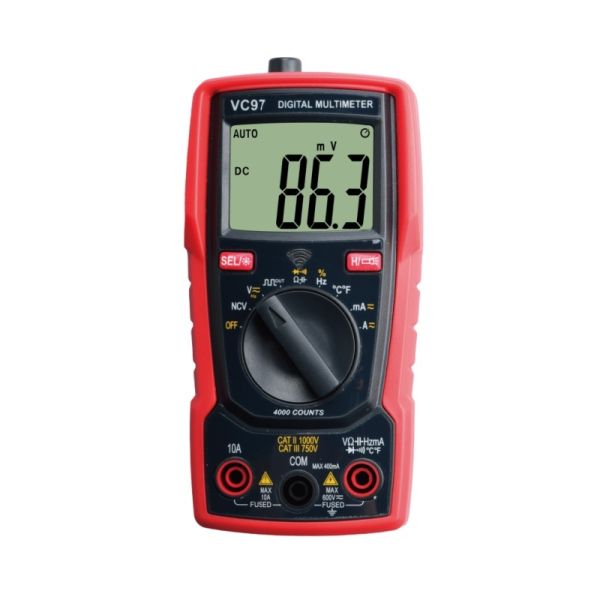

Product Image
VC97 Digital Multimeter with 4000 Counts LCD True-RMS and K-type Thermocouple for Accurate Measurements
