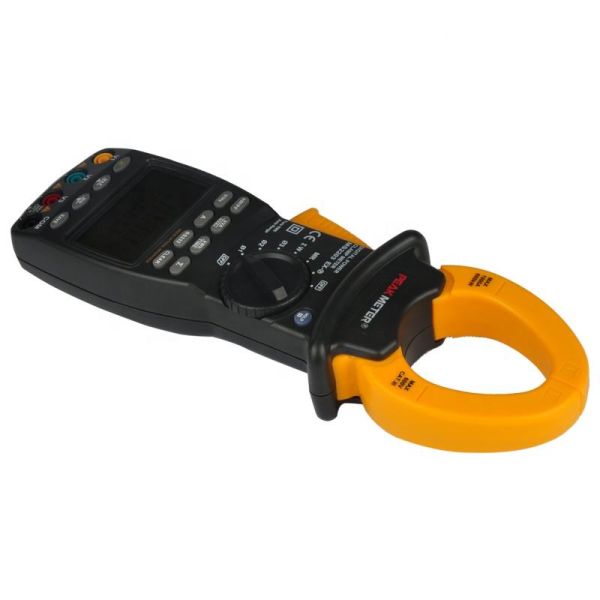

Three Phase Digital Power Clamp Meter PM2203 with LCD Display
Three Phase Digital Power Clamp Meter PM2203 with LCD Display
Three Phase Digital Power Clamp Meter PM2203 with LCD Display
Three Phase Digital Power Clamp Meter PM2203 with LCD Display
Three Phase Digital Power Clamp Meter PM2203 with LCD Display
Three Phase Digital Power Clamp Meter PM2203 with LCD Display
Three Phase Digital Power Clamp Meter PM2203 with LCD Display
Three Phase Digital Power Clamp Meter PM2203 with LCD Display
Three Phase Digital Power Clamp Meter PM2203 with LCD Display
Three Phase Digital Power Clamp Meter PM2203 with LCD Display
Three Phase Digital Power Clamp Meter PM2203 with LCD Display
Three Phase Digital Power Clamp Meter PM2203 with LCD Display
Specifications
Certification :
CE, RoHS
MOQ :
1
Model NO. :
MS2203
Brand :
Peakmeter
Display :
Digital
Frequency :
20Hz~1000Hz
LCD Display :
9999 Counts
Jaw Opening :
Dia.50mm/2.0"
Data Logging and Recall :
28 Groups
True RMS :
True Root Mean Squre Measurement
RS232 Interface :
Yes
Power Supply :
4X1.5V AA Battery
Transport Package :
Box and Carrying Bag
Specification :
CE, ROHS
Trademark :
BESTONE, PEAKMETER
Origin :
China
Production Capacity :
500000pieces/Year
Description
Product Description

Features:

* Measuring power, voltage, current, peak value, phase, frequency, power factor, phase angle, and reaction factor, etc, of single-/three-phase circuit; Automatic phase sequence testing is possible for 3-phase measurement.
* True effective value measurement; Accurate measurement is possible even with senous distortion in current waveform.
* Low-consumption high-speed single-chip microprocessor is employed and sophisticated algorithm is applied, as a result, results can be obtained rapidly and predisely, and up to 20 harmonics and distortion value thereof can be measured.
* currrent clamp size: Φ 26mm
* Conform to the LEC61010-1 Standard CAT, III 600V
* Power Supply: 1.5V AAA Battery × 3
* Dimensions: 208mm× 78mm× 35mm
Product Parameters

Function Range Accuracy
AC Voltage(v) 0.1V~600V ±(1.2% +5)
AC Current(A) 0.1A~1000A ±(2.0% +5)
Active power(KW) 0.1Kw~600kW ±(3.0% +5)
Apparent Power(kVA) 0.1kVA~600kVA ±(3.0% +5)
Reactive Power(kVar) 0.1kVAr~600kVAr ±(4.0% +5)
Power factor 0.3~1 ±(0.02%+2)
Frequency 20Hz~1000Hz ±0.5%
Display 9999 counts
Jaw Opening Φ 50mm/2.0"
Auto Ranging √
Max/Min √
Data Logging and recall 28 groups
True RMS True Root Mean Squre Measurement
Data Hold and auto power off √
Low battery indication √
Display Backlight √
RS232 Interface √
Power supply 4x1.5V AA Battery
Product size 300mmx96mmx50mm
Product weight 560g
Safety Rating CE CAT.III 600V RoHS
