Specifications
Certification :
CE, RoHS
MOQ :
1
Model NO. :
PM2205
Brand :
Peakmeter
Display :
Digital
Product Size :
300mmx96mmx50mm
Product Weight :
Approx.530g
Contact :
RS232 Interface
True RMS :
True Root Mean Square Measurement
LCD Display :
6000 Counts
Jaw Opening :
Dia 50mm/2.0"
Transport Package :
Box and Carrying Bag
Specification :
CE, ROHS
Trademark :
PEAKMETER, BESTONE
Origin :
China
Production Capacity :
500000pieces/Year
Description
Product Description

Features:

* Measuring Voltage, Current, Voltage/current peak, effective/apparent power(single-phase or 3-phase, power factor, reactivity, phase angle, frequency, phase detection(3-phase), voltage/current harmonic levels(up to 20th)and total harmonic distortion(THD-F and THD-R)
* TRMS Value can enforce the accuracy of measuring the non-sinuoidal waveforms or distorted waveforms.
* PHASE detection: Normal/reverse/missing(at 3-phase balanced load)
* RECORD: Max. Value and MIN value(Effective in the voltage, current and effective/apparent power functions)
* DATA Storage: Can memorize up to 100 measuring values, and download to PC software by RS-232 interface
* Low Battery indication
* Data hold
*Auto power-off
*PC-Link: RS-232 interface by optical insulating coupler
Product Parameters

Function Range Accuracy
AC Voltage(v) 0.1V~600V ±(1.2% +5)
AC Current(A) 0.1A~1000A ±(2.0% +5)
Active power(KW) 0.1Kw~600kW ±(3.0% +5)
Apparent Power(kVA) 0.1kVA~600kVA ±(3.0% +5)
Reactive Power(kVar) 0.1kVAr~600kVAr ±(3.0% +5)
Power factor 0.3~1 ±(0.02%+2)
Harmonic measurement
45Hz~65Hz(Fundamental Frequency)		 Harmonic Number 1
Harmonic Number 2-6
Harmonic Number 7-8
Harmonic Number 9-10
Harmonic Number 11-15
Harmonic Number 16-20		 ±(3.0% +10)
±(3.5% +10)
±(4.5% +10)
±(5.0% +10)
±(7.0% +10)
±(10% +10)
Display 6000 counts
Jaw Opening Φ 50mm/2.0"
Auto Ranging √
Data Logging and recall 100 groups
True RMS True Root Mean Squre Measurement
Data Hold and auto power off √
Display Backlight √
RS232 Interface √

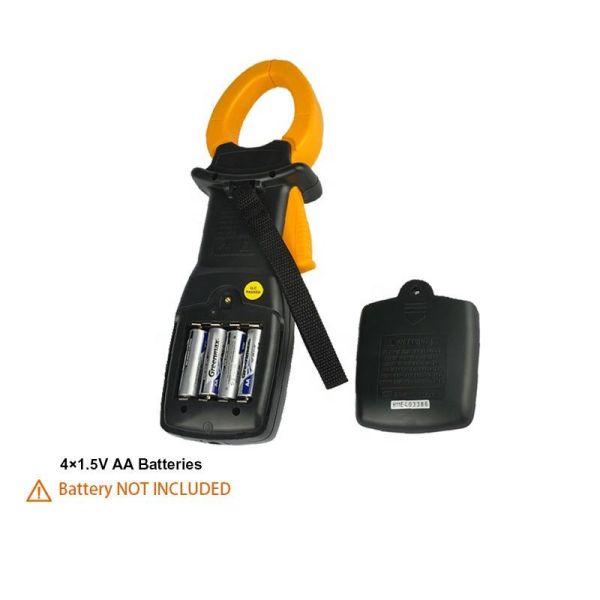

Power supply 4x1.5V AA Battery
Product size 300mmx96mmx5mm
Product weight 530g
Safety Rating CE CAT.III 600V RoHS

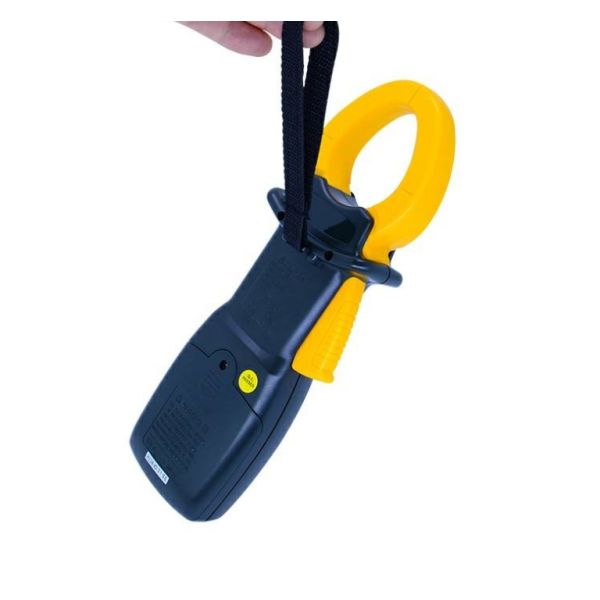

Detailed Photos
