OEM Red Chilli Dryer Machine Rustproof
OEM Red Chilli Dryer Machine Rustproof
OEM Red Chilli Dryer Machine Rustproof
OEM Red Chilli Dryer Machine Rustproof
OEM Red Chilli Dryer Machine Rustproof
OEM Red Chilli Dryer Machine Rustproof
OEM Red Chilli Dryer Machine Rustproof
OEM Red Chilli Dryer Machine Rustproof
Specifications
Brand Name :
HengShou
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Dried Peppers Belt Drying Equipment
Single layer working length (m) :
20-30m
Number of layers (n) :
2-4n
Operation temperature :
30-100℃
Drying output (t/h) :
6-20
Drying time :
2-12 hours
Description

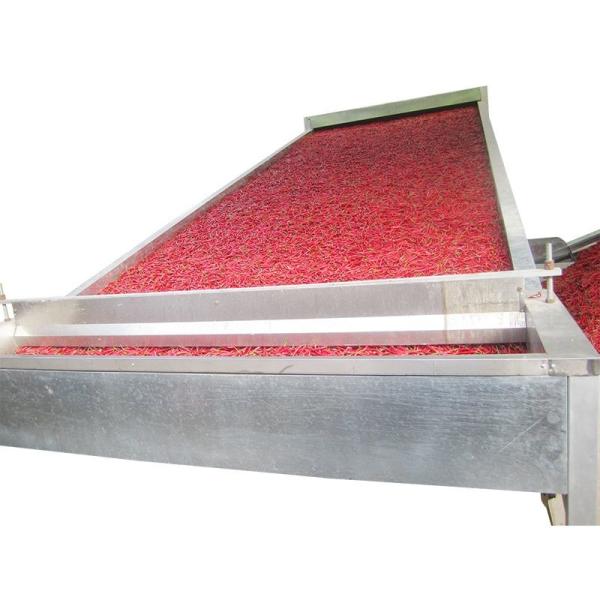

Double Layer Continuous Heating Red Chili Belt Drying Equipment Bright Color Dryer

Description:

Application material
Blocks, flakes, strips, granules, and other materials: briquette, livestock grass, palm silk, hair, wood shavings, vegetables, food
Application field
Widely used in the chemical industry, animal husbandry, food, medicine, building materials, electronics, and other industries, especially suitable for drying the sheet, strip, and granular materials with good ventilation. The material formed by the machine or extruder is dried.

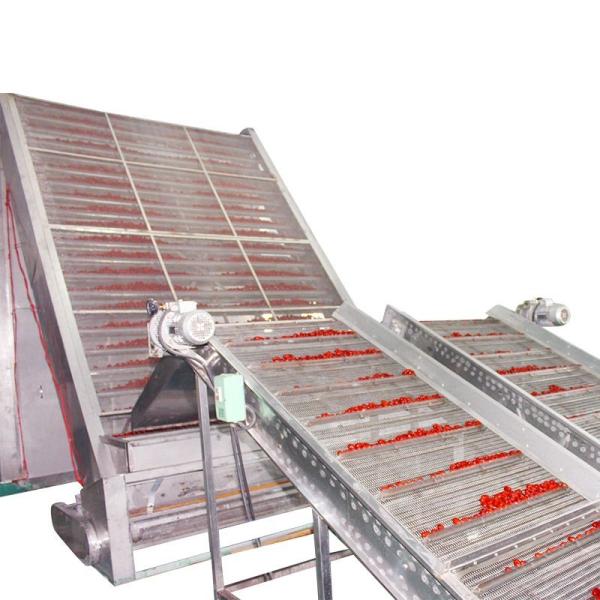

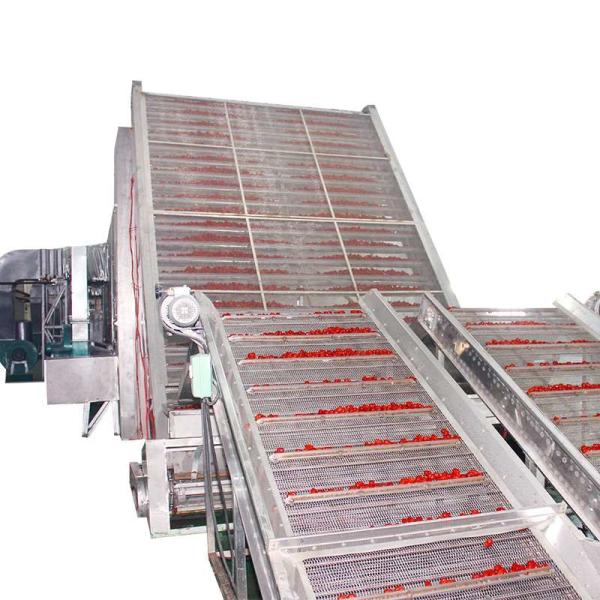

Overview of mesh belt dryer
The mesh belt dryer is a batch and continuous production drying equipment. The main heating methods are electric heating, steam heating, and hot air heating. The main principle is to spread the material evenly on the mesh belt. The mesh belt is made of a 12-60 mesh steel mesh belt, which is dragged by the transmission device to move back and forth in the dryer. The drying machine is discharged from the moisture exhaust hole, so as to achieve the purpose of drying. The length of the box is composed of standard sections. In order to save space, the dryer can be made into a multi-layer type. 6-40m, effective width 0.6-3.0m.

OEM Red Chilli Dryer Machine Rustproof

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

MATERIAL APPLICATION

OEM Red Chilli Dryer Machine Rustproof

COMPANY PROFILE

OEM Red Chilli Dryer Machine Rustproof

PATENT CERTIFICATE

OEM Red Chilli Dryer Machine Rustproof

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

OEM Red Chilli Dryer Machine Rustproof
