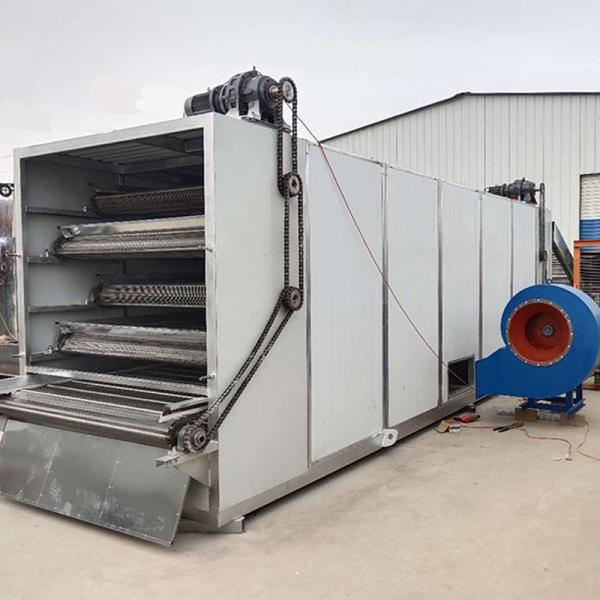

Chain Plate Dryer Stainless Steel Particle Dryer Mesh Belt Dryer
Chain Plate Dryer Stainless Steel Particle Dryer Mesh Belt Dryer
Chain Plate Dryer Stainless Steel Particle Dryer Mesh Belt Dryer
Chain Plate Dryer Stainless Steel Particle Dryer Mesh Belt Dryer
Chain Plate Dryer Stainless Steel Particle Dryer Mesh Belt Dryer
Chain Plate Dryer Stainless Steel Particle Dryer Mesh Belt Dryer
Chain Plate Dryer Stainless Steel Particle Dryer Mesh Belt Dryer
Chain Plate Dryer Stainless Steel Particle Dryer Mesh Belt Dryer
Specifications
Brand Name :
HengShou
Certification :
ISO SGS
Place of Origin :
Sichuan
MOQ :
1
Price :
$19900-39900 Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets Years
Delivery Time :
10 Work Days
Product name :
Chili Seafood Mesh Belt Dryer
Product Features :
Dehydration
Dimension :
Customized
Total power of equipment :
12
Field of application :
Food, medicine and chemical industry
Structural form multilayer tape :
multilayer tape
Description

Chain Plate Dryer Stainless Steel Particle Dryer Mesh Belt Dryer

Description:

The high degree of automation: labor-saving, the short drying cycle
Output is not affected by the weather: continuous 24 hours of the uninterrupted drying operation
Multi-purpose machine: can dry a variety of materials, save money and space
Multi-layer mesh belt structure: layer-by-layer cycle drying, drying quality is good

Chain Plate Dryer Stainless Steel Particle Dryer Mesh Belt Dryer

Specifications:

Model DW2×6m DW2×8m DW2×10m DW2×12m DW2×14m DW2×16m
Area of dry 3 layers 29㎡ 40㎡ 51㎡ 62㎡ 73㎡ 83㎡
4 layers 39㎡ 53㎡ 68㎡ 83㎡ 97㎡ 110㎡
5 layers 48㎡ 66㎡ 85㎡ 103㎡ 121㎡ 138㎡
6layers 57㎡ 79㎡ 102㎡ 124㎡ 145㎡ 165㎡
Thickness of the material 50---150mm
Operation temperature 40---120℃
Drying time 0.5——5 hour or 3——15 hour
Motor power 1.1kw 1.5kw 1.5kw 1.5kw 2.2kw 3kw
Evaporation,capacity 200-400kg/h 300-600kg/h 400-700kg/h 500-800kg/h 600-1000kg/h 700-1200kg/h
Size of hot blast stove 1.2×2.5×1.7 1.2×2.7×1.9 1.3×3×2 1.3×3×3 1.6×3.5×2.2 1.6×3.7×2.2
Fan 8C-15kw 10C-15kw 10C-22kw 10C-37kw 12C-30kw 12C-45kw
Output conveyor 1.1kw
Total power 18kw 18.4kw 26kw 41kw 35.1kw 46.7kw

MATERIAL APPLICATION

Chain Plate Dryer Stainless Steel Particle Dryer Mesh Belt Dryer

COMPANY PROFILE

Chain Plate Dryer Stainless Steel Particle Dryer Mesh Belt Dryer

PATENT CERTIFICATE

Chain Plate Dryer Stainless Steel Particle Dryer Mesh Belt Dryer

SHIPMENT AND PACKGAGE

Packaging And Delivery Details:

1. Standard import and export wooden case

2. According to customer requirements, the packaging method can be negotiated.

Chain Plate Dryer Stainless Steel Particle Dryer Mesh Belt Dryer
