Specifications
Model Number :
2EDGRK
Pins :
Brass or steel, Tin plating
MOQ :
any qty，
Delivery Time :
2~4 weeks
cage :
Brass, Nickel plating
Brand Name :
BEDE
Temp range :
-40°C ~ +105°C
Packaging Details :
Cartons
Payment Terms :
T/T,D/P
Housing :
PA66 UL 94-V0
Color :
Green or Black
Price :
negotiate
Screws :
M3 Steel Zn plating
Supply Ability :
5000pcs/week
wire gauge :
28-12AWG
Certification :
RoHS,ISO9001
Strip length :
6.0~7.0mm
Place of Origin :
China
Description

Plug-in terminal block Inline Male Wire Connector 2EDGKR-5.08 300V 15A


Description of the plug-in terminal blocks

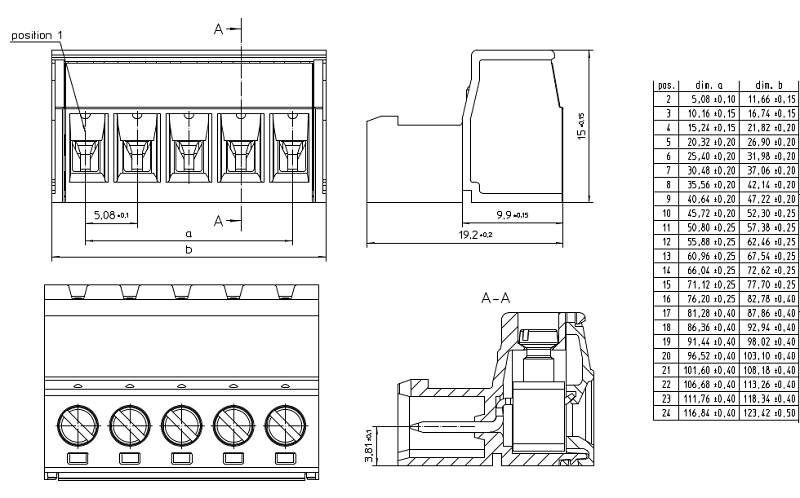

Bede mold and plastic Products CO.,Ltd manufactures the 2EDGKR-5.08 pluggable male terminal block with 5.08mm pin spacing, designed for wire-to-wire inline field connection. This cable-side male plug mates seamlessly with 2EDGR-5.08 female counterpart to build reliable inline wiring assemblies. It uses PA66 UL94-V0 flame retardant plastic housing and tin-plated copper contacts, delivering stable conductivity and strong oxidation resistance for long-term industrial operation.

Plug-in terminal block Inline Male Wire Connector 2EDGKR-5.08 300V 15A

Specifications of the plug-in terminal blocks

  • Model: 2EDGKR-5.08
  • Pitch: 5.08 mm
  • Poles: 2P ~ 24P optional
  • Mating partner: 2EDGR-5.08 (wire-side female connector)
  • Housing Material: PA66, UL94-V0 flame retardant
  • Contact Material: Copper alloy with tin plating
  • Wiring Type: Screw-clamp connection
  • Compliance: RoHS, REACH
  • Operating Temperature: -40℃ ~ +105℃


Plug-in terminal block Inline Male Wire Connector 2EDGKR-5.08 300V 15A

Electrical Ratings of the plug-in terminal blocks

    • Rated Current: 12A
    • Rated Voltage: 320V (Overvoltage Category III/2)
    • Rated Surge Voltage: 4kV
    • Contact Resistance: ≤2.9mΩ
    • Suitable wire gauge: 0.2 ~ 2.5 mm²
    • Operating Temperature: -40℃ ~ +105℃

Why Choose Us

Our 2EDGKR-5.08 inline male connector serves as a drop-in replacement for imported wire-to-wire connectors. The identical mating outline removes the need for redesigning your existing wiring setup. We maintain sufficient inventory and offer competitive pricing for bulk orders. Every batch undergoes strict quality testing before delivery. Widely adopted in industrial control, power supply and automation equipment.
