Specifications
Model Number :
2EDGK
Housing :
PA66 UL 94-V0
MOQ :
200pcs
Delivery Time :
5~8days
Strip Length :
6.0~7.0mm
Wire Gauge :
24-12AWG
Brand Name :
BEDE
Pitch :
5.08mm
Packaging Details :
carton
Voltage :
320V
Payment Terms :
D/A,D/P,T/T
Screws :
M3 Steel Zn plating
Price :
neg0tiotion
Type :
Terminal Block
Supply Ability :
5000pcs/day
Currentrating :
15A
Certification :
CE,RoHS
Numberofpoles :
2 to 24
Place of Origin :
China
Wiresizerange :
24-12 AWG
Description


2EDGK-5.08 straight pin PCB header PCB terminal block Green 2~24pins 320V 15A

Product Overview

The 2EDGK-5.08 is a widely versatile straight-pin PCB male header engineered for modern industrial pluggable wiring systems. Manufactured by Bede Mold and Plastic Products Co., Ltd, this 5.08mm pitch through-hole terminal header delivers dual compatibility, supporting both standard board-to-cable assembly and flexible wire-to-board pluggable interconnection. Unlike single-purpose PCB connectors on the market, the 2EDGK-5.08 features universal mating geometry that perfectly fits the 2EDGR-5.08 wire-side female plug, enabling users to freely switch between PCB fixed connection and field removable wiring layouts without modifying equipment structure.
Built for long-term industrial stability, the connector adopts high flame-retardant PA66 housing and high-purity tin-plated copper pins. It effectively resists oxidation, vibration and temperature fluctuation, ensuring continuous stable conduction in automation systems, power supply devices, instrumentation and control cabinets. All units are fully compliant with international environmental and safety standards, suitable for global commercial and industrial projects.

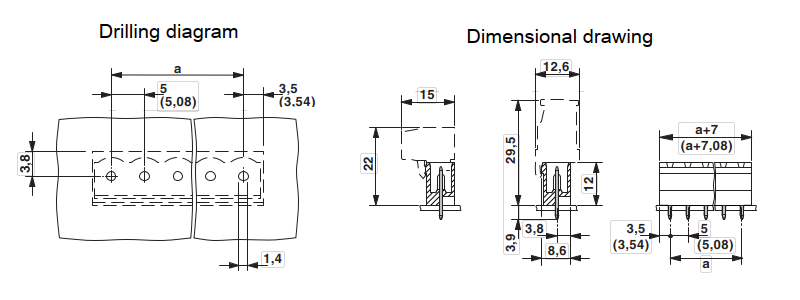

2EDGK-5.08 Straight Pin PCB Header PCB Terminal Block Green 2~24pins 320V 15A

Core Product Features

  • Universal Mating Design: Standard 5.08mm pitch straight pin structure, perfectly compatible with 2EDGR-5.08 female plug, supporting diverse wiring layout combinations
  • Dual Application Scenarios: Works for fixed PCB board mounting and removable field pluggable connection, greatly improving equipment design flexibility
  • Industrial-Grade Material: PA66 UL94-V0 flame-retardant insulation body, anti-aging and anti-breakdown; tin-plated copper pins reduce contact resistance and prevent oxidation
  • High Current & Voltage Resistance: Stable 20A 320V IEC rating, supporting heavy-load industrial circuit operation
  • Wide Temperature Adaptation: Reliable performance from -40℃ to +105℃, applicable for indoor and outdoor harsh working environments
  • Full Poles Availability: Complete specifications from 2P to 24P, meeting multi-channel wiring requirements of different devices
  • Easy Assembly & Replacement: Standard through-hole soldering design, precise pin position, no PCB redesign required for replacement

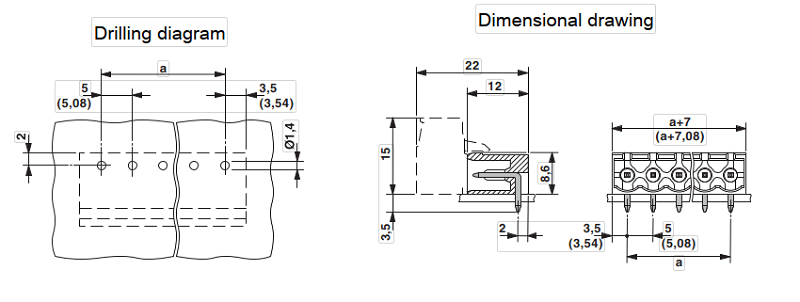

2EDGK-5.08 Straight Pin PCB Header PCB Terminal Block Green 2~24pins 320V 15A

Technical Specifications

  • Model Number: 2EDGK-5.08
  • Pitch: 5.08mm
  • Structure Type: Straight pin PCB male header, through-hole mounting
  • Compatible Mating Model: 2EDGR-5.08 wire-side female plug
  • Available Poles: 2P / 3P / 4P / 5P / 6P / 8P / 10P / 12P / 16P / 24P
  • Housing Material: PA66, UL94-V0 flame retardant
  • Pin Material: High-purity copper alloy with tin plating
  • Wiring Method: Screw clamp connection (matched female plug)
  • Installation Method: PCB through-hole wave soldering
  • Operating Temperature Range: -40℃ ~ +105℃
  • Certification: RoHS, REACH compliant

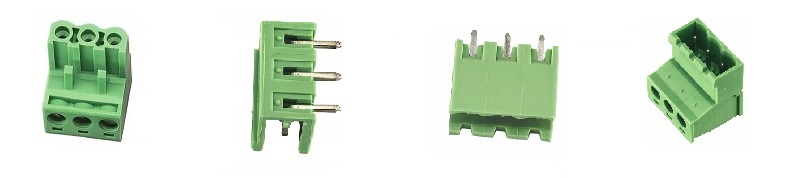

2EDGK-5.08 Straight Pin PCB Header PCB Terminal Block Green 2~24pins 320V 15A

Electrical Performance Parameters

  • IEC Rated Voltage: 320V
  • IEC Rated Current: 20A
  • UL Rated Voltage: 300V
  • UL Rated Current: 15A
  • Surge Withstand Voltage: 4kV
  • Maximum Wire Range: 0.2mm² ~ 2.5mm²
  • Low Contact Resistance: Stable conductivity under long-term vibration and temperature changes

Application Scenarios

The 2EDGK-5.08 pluggable PCB header is widely adopted in industrial automation equipment, switching power supplies, PLC control systems, instrumentation, security monitoring equipment, communication cabinets and low-voltage electrical devices. Its universal compatibility allows engineers to unify wiring standards, reduce component types, and simplify inventory management and after-sales maintenance.
