5.08mm PCB Male Header Terminal Block Replacement BCH-508HS-x GN & BCH-508VS-x GN

Product Description

Bede mold and plastic Products CO.,Ltd produces two types of 5.08mm pitch PCB male headers as drop-in alternatives for Phoenix BCH-508HS-x GN and Phoenix BCH-508VS-x GN. These cable-to-board connectors are built for wave soldering on printed circuit boards.

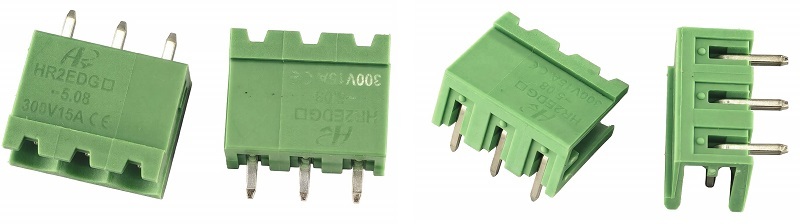

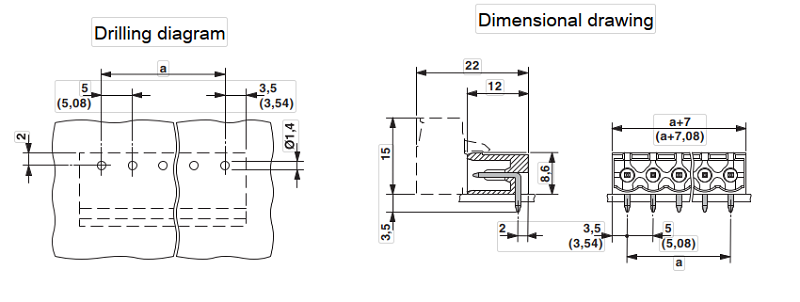

BCH-508HS-x GN is a right-angle 90° header. Its bent pins save vertical space inside device enclosures.

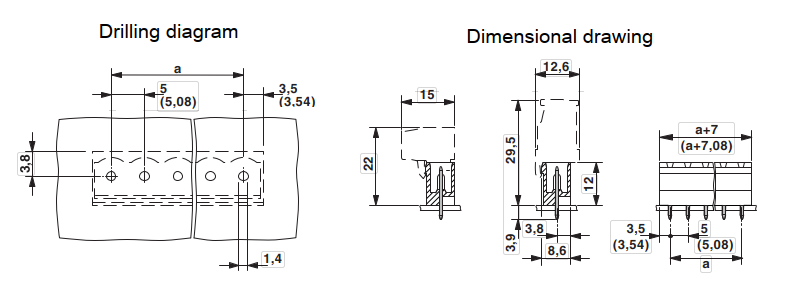

BCH-508VS-x GN features vertical straight pins, perfect for compact stacked PCB layouts.

The terminal block is compatible with the BCP-508-x-GN.

Electrical Specifications

• Rated Current: 12A
• Rated Voltage: 320V (Overvoltage Category III/2)
• Rated Surge Voltage: 4kV
• Contact Resistance: ≤2.9mΩ
• Suitable wire gauge: 0.2 ~ 2.5 mm²
• Operating Temperature: -40℃ ~ +105℃

Both variants use PA66 UL94-V0 flame retardant housing and tin-plated copper pins, maintaining stable electrical performance under temperature shifts and vibration.

Our headers match the original mating profile and pin spacing, so no PCB redesign is required for replacement. With in-house moulding and strict quality control, we deliver reliable products at more competitive prices and faster lead times than imported options. 2P to 12P pole selections are available for automation, power supply and measuring instruments.

Key Features

• Direct replacement for BCH-508HS-x GN (right-angle) & BCH-508VS-x GN (vertical)
• 5.08mm pitch, cable-to-board pluggable header
• 12A,320V rating, 4kV surge withstand
• PA66 UL94-V0 housing, tin-plated copper pins
• Wide temperature range -40℃ ~ +105℃
• Manufactured by Bede mold and plastic Products CO.,Ltd, cost-saving & short lead time
• Multiple pole options from 2P to 12P
