Specifications
Model Number :
1704936
Housing :
PA66 UL 94-V0
MOQ :
any qty，
Delivery Time :
2~4 weeks
Color :
Green or Black
Brand Name :
BEDE
wire gauge :
28-12AWG
Packaging Details :
Cartons
Payment Terms :
T/T,D/P
Pins :
Brass or steel, Tin plating
Price :
negotiate
cage :
Brass, Nickel plating
Supply Ability :
5000pcs/week
Temp range :
-40°C ~ +105°C
Certification :
RoHS,ISO9001
Screws :
M3 Steel Zn plating
Place of Origin :
China
Strip length :
6.0~7.0mm
Description

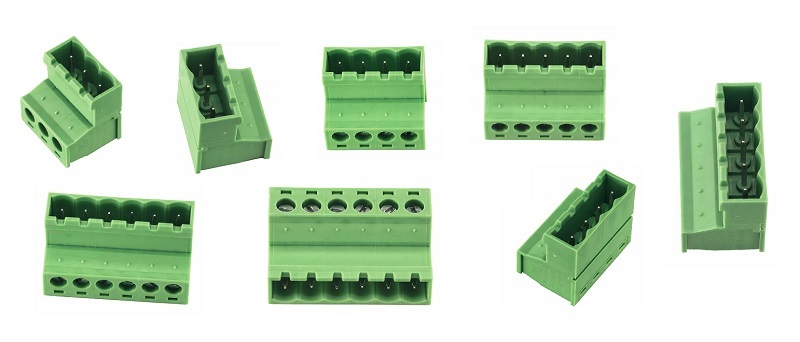

Plug-in Terminal Block Wire To Wire Male 300V 10A Alternative IC 2.5/ x-ST-5.08


Description of the plug-in terminal blocks

Bede mold and plastic Products CO.,Ltd manufactures high-performance male plug terminal blocks to pair with BCP-508- x- GN

female connectors. This 5.08mm pitch screw-clamp plug is built for wire-to-wire field interconnection.

It maintains the exact mating profile and pin layout to form a seamless male-female assembly. No mechanical rework or wiring redesign is required when replacing the original imported male component. The plug uses PA66 UL94-V0 flame retardant housing and tin-plated copper pin contacts, ensuring low contact resistance and stable electrical performance in harsh industrial conditions. It reliably operates within -40℃ to +105℃ and holds UL, CE and RoHS certifications.

We offer competitive pricing and steady inventory for industrial wiring applications.

Plug-in Terminal Block Wire To Wire Male 300V 10A Alternative IC 2.5/ x-ST-5.08

Key Features of the plug-in terminal blocks

  • Matching male plug compatible with BCP-508- x- GN female terminal block
  • 5.08mm pitch, screw-clamp wire termination
  • PA66 UL94-V0 flame retardant housing, tin-plated copper pins
  • Wide working temperature: -40℃ ~ +105℃
  • Produced by Bede mold and plastic Products CO.,Ltd, cost-effective with stable supply
  • Matching male terminals are available: cable female terminal MSTB 2.5/xx-STF-5.08,
  • Similar male terminal blocks for PCB are available: straight pins terminal BCH-508VS- x- GN and PCB angle pins terminal block BCH-508HS- x- GN

Plug-in Terminal Block Wire To Wire Male 300V 10A Alternative IC 2.5/ x-ST-5.08

Electrical performance of the Plug-in Terminal Block


Pitch Rated current Rated voltage Insulation Resistance Dielectric Strength temperature Wire Gauge
5.08mm 10A 300V 5000MΩ/1000V 2000V/1 min -40℃ ~ +105℃ 28~12AWG
