Inline Female Wire Connector Pluggable Terminal Blocks 2~24pins 2EDGR-5.08
Inline Female Wire Connector Pluggable Terminal Blocks 2~24pins 2EDGR-5.08
Inline Female Wire Connector Pluggable Terminal Blocks 2~24pins 2EDGR-5.08
Inline Female Wire Connector Pluggable Terminal Blocks 2~24pins 2EDGR-5.08
Inline Female Wire Connector Pluggable Terminal Blocks 2~24pins 2EDGR-5.08
Inline Female Wire Connector Pluggable Terminal Blocks 2~24pins 2EDGR-5.08
Inline Female Wire Connector Pluggable Terminal Blocks 2~24pins 2EDGR-5.08
Inline Female Wire Connector Pluggable Terminal Blocks 2~24pins 2EDGR-5.08
Inline Female Wire Connector Pluggable Terminal Blocks 2~24pins 2EDGR-5.08
Inline Female Wire Connector Pluggable Terminal Blocks 2~24pins 2EDGR-5.08
Inline Female Wire Connector Pluggable Terminal Blocks 2~24pins 2EDGR-5.08
Inline Female Wire Connector Pluggable Terminal Blocks 2~24pins 2EDGR-5.08
Inline Female Wire Connector Pluggable Terminal Blocks 2~24pins 2EDGR-5.08
Inline Female Wire Connector Pluggable Terminal Blocks 2~24pins 2EDGR-5.08
Inline Female Wire Connector Pluggable Terminal Blocks 2~24pins 2EDGR-5.08
Inline Female Wire Connector Pluggable Terminal Blocks 2~24pins 2EDGR-5.08
Specifications
Model Number :
2EDGRK
wire gauge :
28-12AWG
MOQ :
any qty，
Delivery Time :
2~4 weeks
Strip length :
6.0~7.0mm
Brand Name :
BEDE
Temp range :
-40°C ~ +105°C
Packaging Details :
Cartons
Payment Terms :
T/T,D/P
Color :
Green or Black
Price :
negotiate
Housing :
PA66 UL 94-V0
Supply Ability :
5000pcs/week
Pins :
Brass with Tin plating
Certification :
RoHS,ISO9001
Screws :
M3 Steel Zn plating
Place of Origin :
China
cage :
Brass or steel, Nickel plating
Description

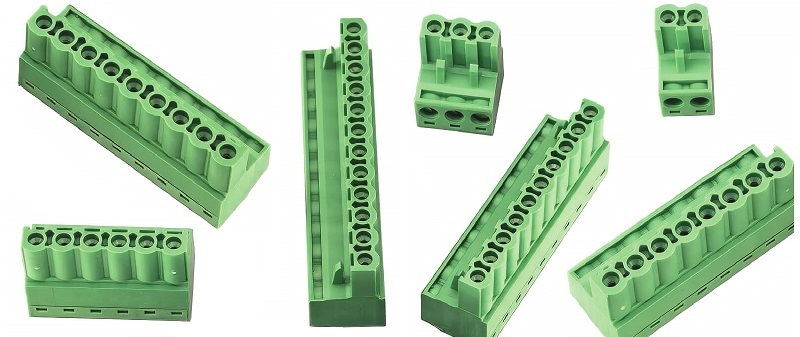

Inline female Wire Connector pluggable terminal blocks 5.08mm Pitch 2EDGR-5.08

Description of the pluggable terminal blocks

Bede mold and plastic Products CO.,Ltd supplies the 2EDGR-5.08 pluggable female connector with 5.08mm pin pitch, specially engineered for wire-to-wire inline cable interconnection. This cable-side female plug perfectly mates with the 2EDGKR-5.08 male plug for on-site wiring assembly. It adopts PA66 UL94-V0 flame-retardant housing and tin-plated copper spring contacts to deliver stable electrical performance and reliable anti-oxidation capability.

Inline Female Wire Connector Pluggable Terminal Blocks 2~24pins 2EDGR-5.08

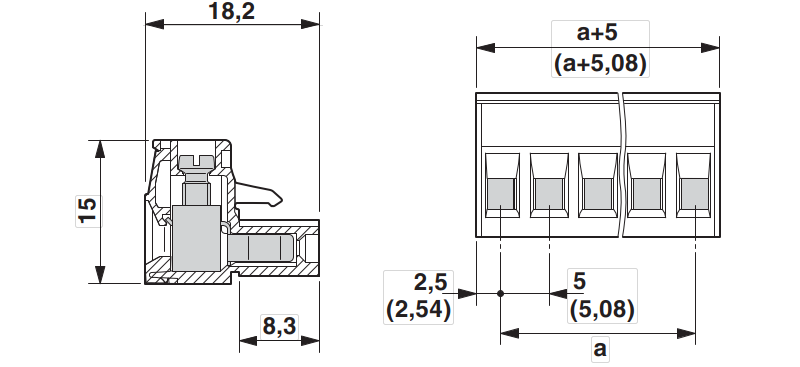

Specifications of the pluggable terminal blocks

  • Model: 2EDGR-5.08
  • Pitch: 5.08 mm
  • Poles: 2P ~ 24P optional
  • Mating partner: 2EDGKR-5.08 (wire-side male connector)
  • Housing Material: PA66, UL94-V0 flame retardant
  • Contact Material: Copper alloy with tin plating
  • Wiring Type: Screw-clamp connection
  • Compliance: RoHS, REACH
  • Operating Temperature: -40℃ ~ +105℃

    Inline Female Wire Connector Pluggable Terminal Blocks 2~24pins 2EDGR-5.08

Electrical Ratings of the pluggable terminal blocks

  • IEC Rating: 320V, 20A
  • UL Rating: 300V, 15A

Why Choose Us

Our 2EDGR-5.08 terminal block serves as a direct drop-in replacement for imported inline wire connectors, with identical mating dimensions so no redesign is required. We maintain stable stock and offer competitive pricing for bulk orders. All products go through strict quality inspection before shipment, widely applied in industrial control, power supply and automation systems.
