Specifications
Brand Name :
NSK
MOQ :
1
Price :
USD 0.5-10 PCS
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 PCS/MON
Delivery Time :
3-15 DAYS
Packaging Details :
Single Box , Industrial Packing
Description
Design:

The bearing consists of two rings (inner and outer) and rolling elements (tapered rollers) which are connected by a cage. The inner ring with a cage and rolling elements is a CONE. The outer ring is a CUP.
The design of tapered roller bearings suites for the perception of combined (radial and axial) loads. Tapered roller bearings have a split construction: the inner ring with the rollers and separator create the unit, that can be mounted separately from the outer ring. This tapered roller bearing is inches.

Features:

Tapered roller bearing;
Metric dimensions

DIMENSIONS

d
28 mm
 Bore diameter
D
58 mm
 Outside diameter
T
17.25 mm
 Total bearing width
d1
≈42 mm
 Inner ring shoulder diameter
B
16 mm
 Width inner ring
C
14 mm
 Width outer ring
r1,2
min.1 mm
 Corner radius inner ring
r3,4
min.1 mm
 Corner radius outer ring
a
13.155 mm
 Distance pressure point

ABUTMENT DIMENSIONS

da
max.35 mm
 Abutment diameter shaft
db
min.35 mm
 Abutment diameter shaft
Da
min.50 mm
 Abutment diameter housing
Da
max.52 mm
 Abutment diameter housing
Db
min.54 mm
 Abutment diameter housing
Ca
min.2 mm
 Abutment housing - axial space at the large side face/ both sides of the outer ring
Cb
min.3 mm
 Abutment housing - axial space at the small side face/ both sides of the outer ring
ra
max.1 mm
 Fillet radius
rb
max.1 mm
 Fillet radius

CALCULATION DATA

Basic dynamic load rating C
46.6 kN
Basic static load rating C0
41.5 kN
Fatigue load limit Pu
4.4 kN
Reference speed
10 000 r/min
Limiting speed
12 000 r/min
Calculation factor e
0.37
Calculation factor Y
1.6
Calculation factor Y0
0.9

302/28 CHL Tapered roller bearings, single row - Popular item - NSK Explorer, 302/28 CHL, 15-08302/28 CHL Tapered roller bearings, single row - Popular item - NSK Explorer, 302/28 CHL, 15-08

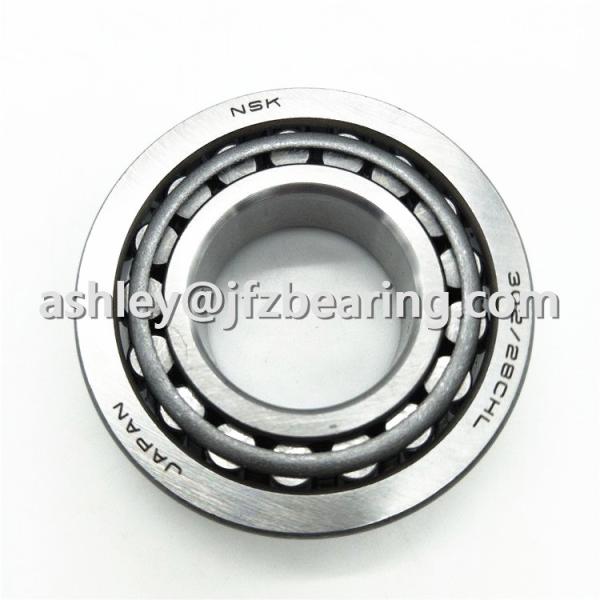

Product Picture

302/28 CHL Tapered roller bearings, single row - Popular item - NSK Explorer, 302/28 CHL, 15-08302/28 CHL Tapered roller bearings, single row - Popular item - NSK Explorer, 302/28 CHL, 15-08302/28 CHL Tapered roller bearings, single row - Popular item - NSK Explorer, 302/28 CHL, 15-08

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging a)plastic tube + carton + pallet
b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis
