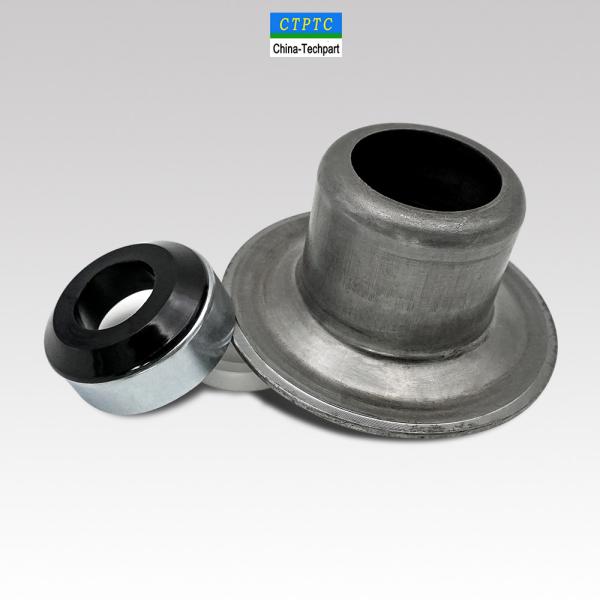

Belt Conveyor 76mm Idler Ball Bearing Housing TK6204-76 Pressed Bearing Cap
Belt Conveyor 76mm Idler Ball Bearing Housing TK6204-76 Pressed Bearing Cap
Specifications
Brand Name :
China-Techpart
Model Number :
TK6204-76
Certification :
ISO9001-2008
Place of Origin :
Anhui of China
MOQ :
500 sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
18000 sets per week
Delivery Time :
18-25 work days
Packaging Details :
Standard export packing
Material :
SPHC
Applicable Fields :
Building Material Shops, Manufacturing Plant, Mining etc
Quality :
best quality with low tolerance
Bearing Type :
6204
Roller Diameter :
76mm
Flange Diameter :
72mm
Deepness :
42.5mm
Bottom Bore Diameter :
35mm
Price :
0.4 - 2.5 USD
Description

Belt Conveyor Idler Roller Housing TK6204-76 Pressed Bearing Cap

Detailed specification:

TK Type Bearing Housing Size List
Bearing Pipe Dia (mm) Shaft (mm) Flange (mm) Caliber (mm) Hole Dia (mm) Bearing Seat Dia (mm) Deepness(mm) Thickness(mm)
6204 63 20 59.5 47.1 35 47 42.5 2.5
76 72 2.5
89 83/84/85 2.5
102 97 2.5/3.0
108 103 2.5/3.0
114 109/110 2.5/3.0
127 121/122 2.5/3.0
133 127/128 2.5/3.0
140 134/135/136 2.5/3.0
152 146/147 2.5/3.0
159 152/153 2.5/3.0

Material for all accessories:

1. Bearing Housing: Pickled steel from Baosteel Group

2. Inner Seal: Nylon PA6

3. Labyrinth Seals: POM

4. Metal Cap: Carbon Steel SPCC

5. Protective Shield: Nylon PA6

Brief show for products:

Our roller bearing housing and the relative seals have the advange of high precision, good gloss,

without stretching scars or burrs. Steel materials are from Shanghai Baosteel Group, which is the best steel

maker in China.

Belt Conveyor 76mm Idler Ball Bearing Housing TK6204-76 Pressed Bearing Cap

Factory Show:

Our factory are professional in manufacturing & exporting bearing housing and seals for more than 15 years,

and is approved by ISO9001-2008 quality management system. We have 4 advanced production lines which

make us the largest and most professional bearing housing maker in China.

Belt Conveyor 76mm Idler Ball Bearing Housing TK6204-76 Pressed Bearing Cap

Packing:

Usually, our bearing housing and seals are packed in wooden case with waterproof paper inside. Of course,

we could also packed the items as requested.

Belt Conveyor 76mm Idler Ball Bearing Housing TK6204-76 Pressed Bearing Cap

Broad Market:

Our business has been extended to over 30 countries over the world such as Russia, USA, Netherlands,

Chile, Mexico, Colombia, Thailand, Indonesia.,etc.

Welcome to visit our factory, and we promise to provide you with our best products and services.
