Carbon Steel Welded Wire Mesh Cable Tray IEC 61537 BS EN 61537
Carbon Steel Welded Wire Mesh Cable Tray IEC 61537 BS EN 61537
Carbon Steel Welded Wire Mesh Cable Tray IEC 61537 BS EN 61537
Carbon Steel Welded Wire Mesh Cable Tray IEC 61537 BS EN 61537
Carbon Steel Welded Wire Mesh Cable Tray IEC 61537 BS EN 61537
Carbon Steel Welded Wire Mesh Cable Tray IEC 61537 BS EN 61537
Specifications
Brand Name :
BDINDUSTRIAL
Model Number :
Welded Wire Mesh Cable Tray
Certification :
IEC 61537，BS EN 61537,NEMA/CSA
Place of Origin :
CHINA
MOQ :
100 m
Price :
20-30 USD
Payment Terms :
L/C,D/P,T/T
Supply Ability :
50000 m/week
Delivery Time :
15-25 work days
Packaging Details :
Carton, Box, Wooden carton
Product Name :
Cable Tray,Welded,Wire Mesh
Keywords :
Wire Mesh Basket Cable Tray
Material :
Carbon Steel,Stainless Steel,Aluminum
Width :
50-600 mm/2-24 in
Height :
50-250 mm/2-10 in
Length :
3 m/10 ft
Wire Diameter :
3.5-6 mm
Support span :
1.8-9.0 m/6-30 ft
Description

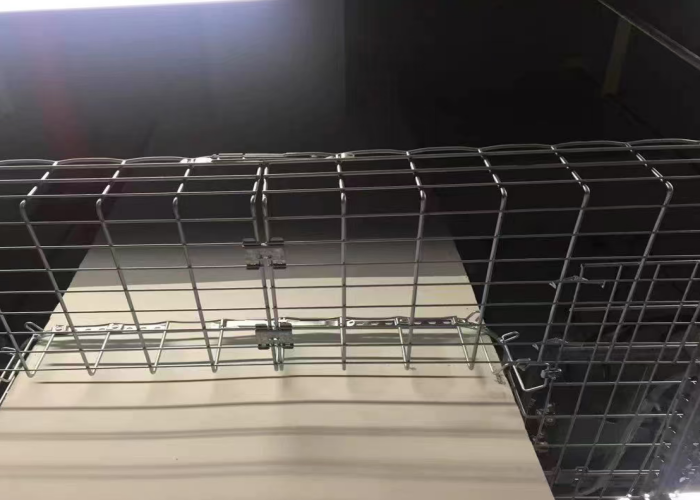

Welded Wire Mesh Cable Tray

High-quality Welded Wire Mesh Cable Tray which is produced by Bending-precision welding for sturdiness, open grid for efficient heat dissipation, lightweight for easy installation! With multiple anti-corrosion finishes, it adapts to all industrial and commercial environments. Customizable sizes, high load capacity, and low maintenance cost, it is your cost-effective cable management solution for all electrical projects.

Carbon Steel Welded Wire Mesh Cable Tray IEC 61537 BS EN 61537

Carbon Steel Welded Wire Mesh Cable Tray IEC 61537 BS EN 61537

Common Specifications & Parameters

The specific specifications of the Bending Welded Wire Mesh Cable Tray depend on the project.

Material Carbon Steel,Stainless 304,Stainless 316,Aluminum,Galvannealed,Pregalvaied
Width

50mm(2"),100mm(4"),150mm (6"),200mm(8"),250mm(10"),300mm (12"), 450mm (18"), 600mm (24")
Height

50mm(2"),75mm(3"),100mm(4"),150mm (6"),200mm(8"),250mm(10")
Length 3 m(10 ft)
Support Span

1.8m(6 ft),2.4m(8 ft),3.0m(10 ft),3.6m(12 ft),4.8m(16 ft),6.0m(20 ft),7.2m(24 ft),9.0m(30 ft)
Wire Diameter 3.5mm,4mm,4.5mm,5mm,5.5mm,6 mm
Accessories 90° & 45° Bends (Horizontal), Risers (Vertical Bends), Reducers, Crosses, Tees, Dividers

Common Project Applications

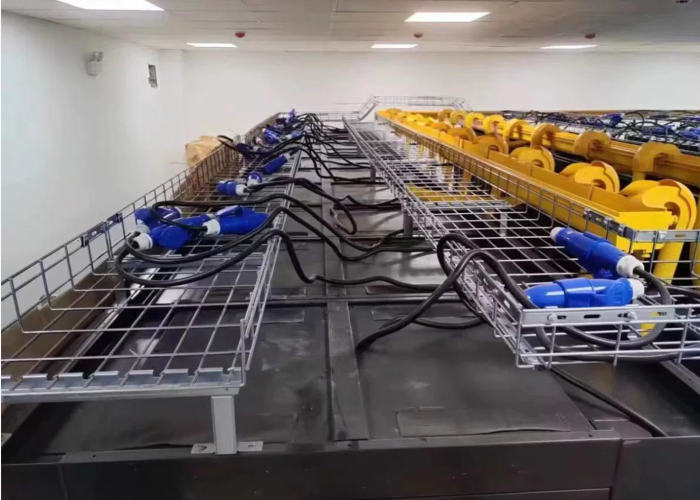

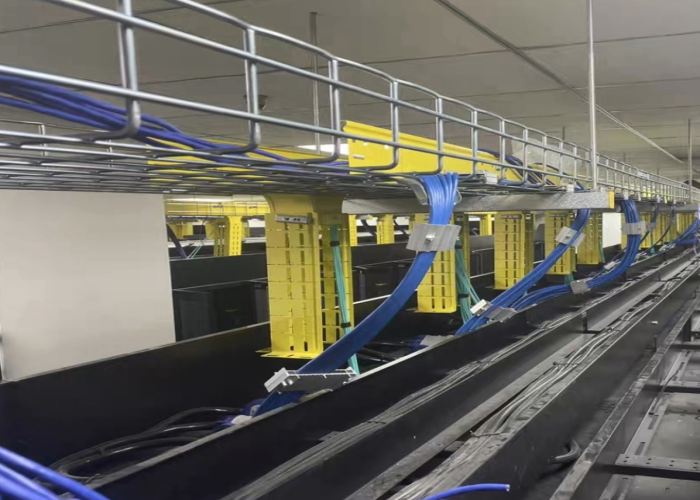

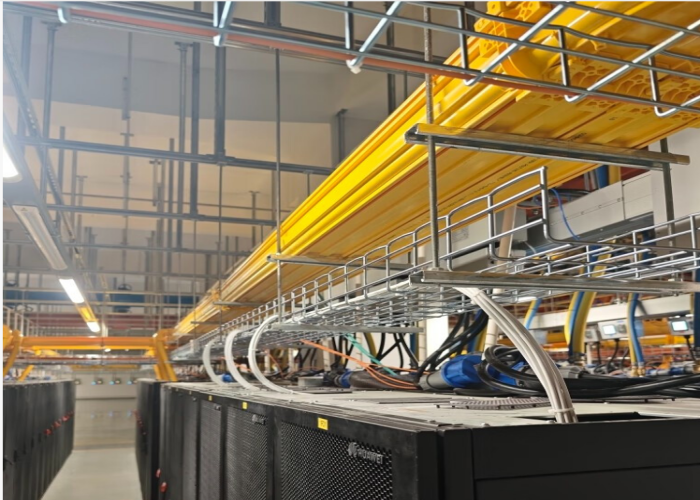

The Bending Welded wire mesh cable trays are primarily used in projects that require excellent ventilation, on-site adaptability, and cable visibility, such as modern data centers, telecommunications installations, and commercial buildings where complex routing is needed.

Carbon Steel Welded Wire Mesh Cable Tray IEC 61537 BS EN 61537

Carbon Steel Welded Wire Mesh Cable Tray IEC 61537 BS EN 61537

Frequently Asked Questions

1. Are you a manufacturer?

Yes, we have been in this field for over 30 years.

2. Can you provide samples?

Yes, we can provide samples with our product catalog. (However, the express delivery cost will be borne by you.)

3. What payment terms do you accept?
Payment methods: Wire transfer (T/T), Letter of Credit (L/C), MoneyGram, Credit Card, PayPal, Western Union.

4. What are your shipping terms?
FOB, CNF, CIF, DDU, DDP.

5. What is your delivery time?
We always have ample stock of materials to meet your urgent needs. The fastest delivery time is only 10 days. After placing an order, we will send you the exact delivery time and production schedule.
