Stainless Steel Wire Basket Cable Tray 50mm-600mm Width
Stainless Steel Wire Basket Cable Tray 50mm-600mm Width
Stainless Steel Wire Basket Cable Tray 50mm-600mm Width
Stainless Steel Wire Basket Cable Tray 50mm-600mm Width
Stainless Steel Wire Basket Cable Tray 50mm-600mm Width
Stainless Steel Wire Basket Cable Tray 50mm-600mm Width

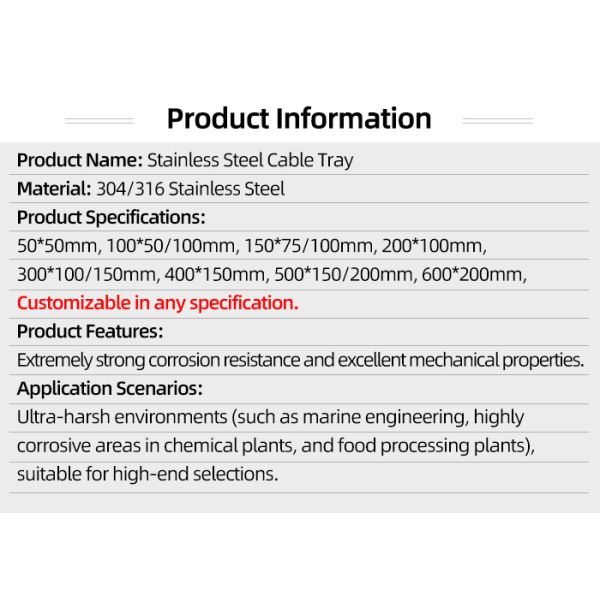

Specifications
Brand Name :
BDINDUSTRIAL
Model Number :
CM50
Place of Origin :
China
Payment Terms :
L/C,T/T,Western Union
Certification :
CCC, RoHS, ISO, CE
MOQ :
100pcs
Price :
15-100USD
Supply Ability :
10000m/week
Delivery Time :
7 days (1 - 1000 Meters) 14 days (1001 - 5000 Meters) To be negotiated ( > 5000 Meters)
Packaging Details :
20.00cm * 20.00cm * 15.00cm
product name :
cable tray
keywords :
stainless steel cable tray
wire diameter :
3.5-6mm
popular wire diameter :
5mm
material :
304 304L、316 316L、321, 317L, Duplex
Length :
max 3000mm
width :
50-600mm
height :
50mm
weight :
3.15-10.89kgs
color :
Silver or Customized
Description

stainless steel wire basket cable tray


Bending Stainless Steel Cable Tray is a manufacturer with a good track record in specialized stainless steel manufacturing. Understand the specific machinability, welding, and surface treatment requirements of stainless steel.

At the same time, Bending Stainless Steel Cable Tray has professional internal design engineers who can provide customized solutions ( non-standard sizes, custom brackets, and special cover latches) and support for complex layouts. We can provide professional CAD drawings for your Stainless Steel Cable Tray project.

Stainless Steel Wire Basket Cable Tray 50mm-600mm Width

Manufacturing quality of Bending Stainless Steel Cable Tray :

Bending Stainless Steel Cable Tray welding: The weld seam should be continuous, smooth (polished and polished if necessary), and free of defects. Bending Stainless Steel Cable Tray adopts TIG welding, which is the preferred choice for advanced bend Stainless Steel Cable Tray because it minimizes thermal deformation and pollution to the greatest extent possible.


Surface treatment of Bend stainless steel cable tray:

The edge of the top bend stainless steel cable tray is free of burrs and smooth, which can effectively prevent cable damage. Surface smoothness (such as drawing, grinding, polishing) can best protect cables.


bend Stainless Steel Cable Tray testing facilities:

Bending Stainless Steel Cable Tray has facilities for load testing (vertical and horizontal), material grade verification (spectral analysis), and welding integrity inspection. Ensure that you receive qualified and satisfactory stainless steel cable trays.

Bending Stainless Steel Cable Tray can provide you with Stainless Steel Cable Tray materials and applicable scenarios:

304/304L: Universal type, with good corrosion resistance in most industrial and indoor environments.
316/316L: Excellent corrosion resistance, suitable for coastal, chemical, marine, and high chloride environments.
Other grades (321, 317L, duplex): suitable for special high-temperature or extremely corrosive applications.
Bending Stainless Steel Cable Tray factory can provide a test certificate (MTC) or a certificate of conformity (CoC) to ensure that the Stainless Steel Cable Tray you receive can be traced back to its source on the material, verifying its grade and composition.

Stainless Steel Wire Basket Cable Tray 50mm-600mm Width

Bending Stainless Steel Cable Tray manufacture products compliant with recognized international and national standards. Key standards include:

IEEE 1222 / NEMA VE 1: Standard for metallic cable tray systems in the US.

IEC 61537 / BS EN 61537: International and European standards.

ASTM Standards: For the stainless steel material itself (e.g., ASTM A240 for sheet/plate).

Local/National Codes: NEC (National Electrical Code) in the US, etc.


Material Grade Selection by Operating Environment
Environment / Industry Recommended SS Grade Key Characteristics & Rationale
General Industrial / Indoor 304 / 304L Excellent general corrosion resistance. Cost-effective for indoor, dry, or controlled environments without chlorides.
Chemical Processing Plants 316 / 316L Superior resistance to acids, alkalis, and industrial chemicals. Molybdenum content is key.
Coastal / Marine Offshore 316 / 316L Essential for resistance to salt spray and chloride-induced pitting/crevice corrosion. 304 will corrode quickly.
Food & Beverage, Pharmaceutical 304 / 316 (Polished) Hygienic, easy to clean. 316 is preferred for high-moisture/chlorinated washdown areas. A smooth #4 brushed or polished finish is often specified.
Water & Wastewater Treatment 316 / 316L Resists chlorides, sulfides, and various chemicals used in treatment processes.
High-Temperature Areas 321 or 316H Grade 321 has titanium added for stabilization against carbide precipitation, making it suitable for sustained high-temperature service (up to ~800°C).
Extreme Corrosion (Pulp & Paper, Chemical) 317L, 904L, or Duplex (2205) Higher alloy content (Mo, Cr, Ni) for severe conditions. Duplex SS offers excellent strength and chloride resistance.
Common Specifications & Load Class (Based on NEMA VE 1 / IEEE 1222)
Load Class (NEMA) Typical Side Rail Thickness (Gauge/mm) Typical Rung Thickness & Spacing Common Applications & Notes
Light Duty (LD) ~14 Ga. (~1.9 mm) Lighter rungs, wider spacing (e.g., 9" / 225mm). Lightweight control/instrumentation cables, office cabling. Not for power cable runs.
Medium Duty (MD) ~12 Ga. (~2.6 mm) Standard rungs, moderate spacing (e.g., 6" or 9" / 150mm or 225mm). Most common general-duty class. Mixed power and control cables in industrial plants.
Heavy Duty (HD) ~10 Ga. (~3.4 mm) or thicker Heavier rungs, closer spacing (e.g., 3" or 6" / 75mm or 150mm). Heavy power cables (MV/HV), dense cable fills, long support spans.
Extra Heavy Duty (EHD) >10 Ga. (>3.4 mm) Very heavy rungs, close spacing (e.g., 3" / 75mm). Extreme loads, critical infrastructure (power plants, heavy industry), cable trunking.
Vertical Tray (VTY) As per MD/HD/EHD Special design with close rung spacing (~4" / 100mm max) and high-strength connections. Specifically designed for vertical riser applications to secure cables against gravity.


Common Tray Types & Design Specifications
Tray Type Key Features Typical Dimensions (Width x Height) Best Use Environment
Ladder Type Ventilated, with side rails and rungs. Best for heat dissipation and easy cable laying/tieing. Widths: 50mm to 1200mm Most common. Plant floors, cable galleries, anywhere ventilation is needed.
Heights: 50mm to 200mm
Solid Bottom (Trough) Continuous metal base with ventilated or solid sides. Provides maximum cable support & protection. Widths: 50mm to 900mm Dusty areas, minor drip protection, sensitive cables needing shielding, horizontal runs.
Heights: 50mm to 150mm
Wire Mesh Made from stainless steel wire. Lightweight, highly ventilated, easy to install and modify. Widths: 50mm to 600mm IT/Data Centers, office buildings, light commercial. Not for heavy industrial loads.
Heights: 25mm to 100mm
Channel / Perforated Single, perforated channel. Simple, low-cost for lightweight cable routing on walls or ceilings. Widths: 50mm to 150mm Machine wiring, small control panels, light instrument loops.
Heights: 25mm to 50mm


Reputation and project experience of Bending Stainless Steel Cable Tray:

Bending Stainless Steel Cable Tray has a good industry recognition: Bending Stainless Steel Cable Tray has been operating in the field of Bending Stainless Steel Cable Tray for 10 years and has received good reviews from domestic and international customers.

Bending Stainless Steel Cable Tray has strong capabilities to ensure the smooth delivery of your project orders and provide reliable support for your orders.


Bending Stainless Steel Cable Tray service and support:
Pre sales support: During the quotation and design stages, Bending Stainless Steel Cable Tray will respond sensitively and quickly provide you with the most suitable stainless steel bridge frame project service plan and support under the guidance of professional technical engineers.

The professional production line, production, and inspection of Bending Stainless Steel Cable Tray ensure that your orders are consistently delivered on time, which has always been a good sign of the Bending Stainless Steel Cable Tray

After sales service for Bending Stainless Steel Cable Tray: We will promptly handle any related issues in the field of stainless steel bridge, provide spare parts, or offer timely installation technology.
