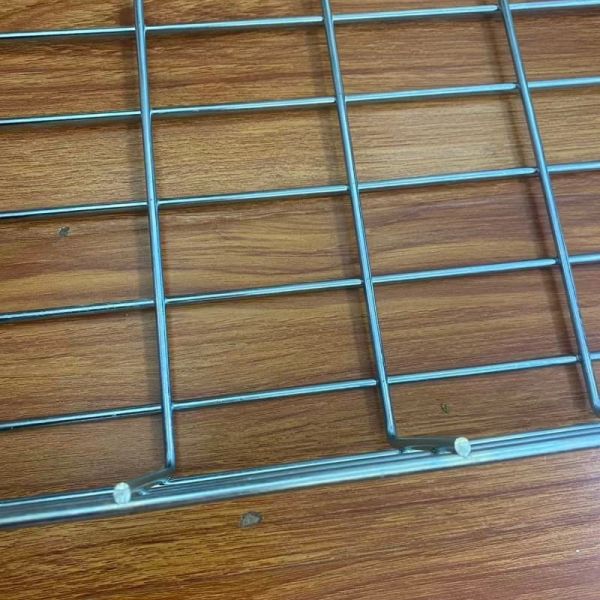

Galvanized Iron Gi Wire Mesh Cable Tray For Data Centers Office Buildings
Galvanized Iron Gi Wire Mesh Cable Tray For Data Centers Office Buildings
Galvanized Iron Gi Wire Mesh Cable Tray For Data Centers Office Buildings
Galvanized Iron Gi Wire Mesh Cable Tray For Data Centers Office Buildings
Galvanized Iron Gi Wire Mesh Cable Tray For Data Centers Office Buildings
Galvanized Iron Gi Wire Mesh Cable Tray For Data Centers Office Buildings
Specifications
Brand Name :
BDINDUSTRIAL
Model Number :
cable tray-020
Certification :
ISO.CE
Place of Origin :
China
MOQ :
100m
Price :
5-55usd per meter
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000m per week
Delivery Time :
25 days
Packaging Details :
pallet
product name :
gi cable tray
color :
original or customize
material :
galvanized wire
key words :
wire mesh cable tray
Description

gi wire mesh cable tray

Bending company's GI (Galvanized Iron) Wire Mesh Cable Tray: Characteristics, Specifications & Selection

Feature Dimension GI (Galvanized Iron) Wire Mesh Tray SS (Stainless Steel) Wire Mesh Tray Shared Core Advantages
Core Characteristics Cost-effective, good protection, corrosion-resistant for general use. Exceptional corrosion resistance, high strength, aesthetic appeal. Fully Open Structure: Excellent ventilation and heat dissipation, easy installation and maintenance. High Flexibility: Supports on-site cutting and free cable routing.
Surface Treatment Hot-dip galvanizing (most common), electro-galvanizing, powder coating. Material is inherently stainless steel (commonly 304, 316/L), no post-processing needed.
Corrosion Resistance Good; zinc layer provides cathodic protection. Suitable for most indoor and generally humid environments. Excellent, especially Grade 316/L. Suitable for highly corrosive environments (chemical, coastal, food processing).
Strength & Weight High strength, relatively heavier weight. High strength, lighter weight for equivalent strength. Structural design ensures high strength-to-weight ratio.
Cost Low, highly economical. High, typically 2-3 times or more the cost of GI.
Typical Specifications Width (W): 50, 100, 150, 200, 300, 400, 600mm, etc.
Side Height (H): 25, 30, 35, 40, 50, 60, 75, 100, 150, 200mm, etc.
Length: Typically 3 meters or 6 meters.
Wire Diameter/Thickness: 3mm, 4mm, 5mm, etc., affects load capacity.
Primary Applications Data centers, office buildings, shopping malls, factory floors, indoor electrical distribution systems – most standard environments. Food/pharmaceutical/chemical plants, coastal/offshore platforms, wastewater treatment plants, high-cleanliness or aesthetic areas (e.g., premium showrooms). Data centers, industrial plants, public buildings – anywhere requiring flexible cable management.

Galvanized Iron Gi Wire Mesh Cable Tray For Data Centers Office Buildings

Bending cable tray company let you know How to Choose the Right Type & Specifications?

Detailed Selection Steps:

  1. Determine Width & Side Height: Estimate based on cable quantity, thickness, and fill volume. For dense cabling, choose widths above 300mm; for thick cables, select side heights above 100mm.

  2. Confirm Load Capacity: The tray's load capacity must exceed the total cable weight with a safety margin. Request "Load Capacity Curves" from suppliers.

  3. Check Standards & Certifications: Quality products should comply with standards like IEC 61537 or NEMA VE1 and have third-party certifications.

Galvanized Iron Gi Wire Mesh Cable Tray For Data Centers Office Buildings

Galvanized Iron Gi Wire Mesh Cable Tray For Data Centers Office Buildings

Galvanized Iron Gi Wire Mesh Cable Tray For Data Centers Office Buildings

Galvanized Iron Gi Wire Mesh Cable Tray For Data Centers Office Buildings

Galvanized Iron Gi Wire Mesh Cable Tray For Data Centers Office Buildings
