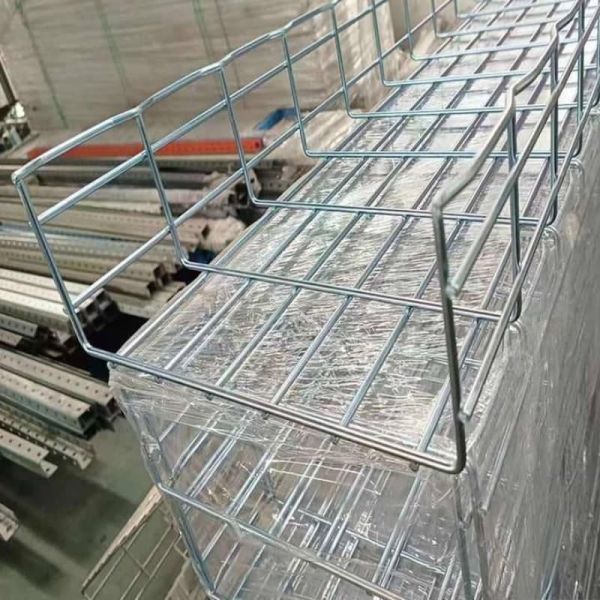

Galvanized Aluminum Wire Mesh Cable Tray 100mm Cable Basket
Galvanized Aluminum Wire Mesh Cable Tray 100mm Cable Basket
Galvanized Aluminum Wire Mesh Cable Tray 100mm Cable Basket
Galvanized Aluminum Wire Mesh Cable Tray 100mm Cable Basket
Galvanized Aluminum Wire Mesh Cable Tray 100mm Cable Basket
Galvanized Aluminum Wire Mesh Cable Tray 100mm Cable Basket
Specifications
Brand Name :
BDINDUSTRIAL
Model Number :
cable tray-022
Certification :
ISO,CE
Place of Origin :
China
MOQ :
100m
Price :
5-55usd per meter
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000m
Delivery Time :
25 work days

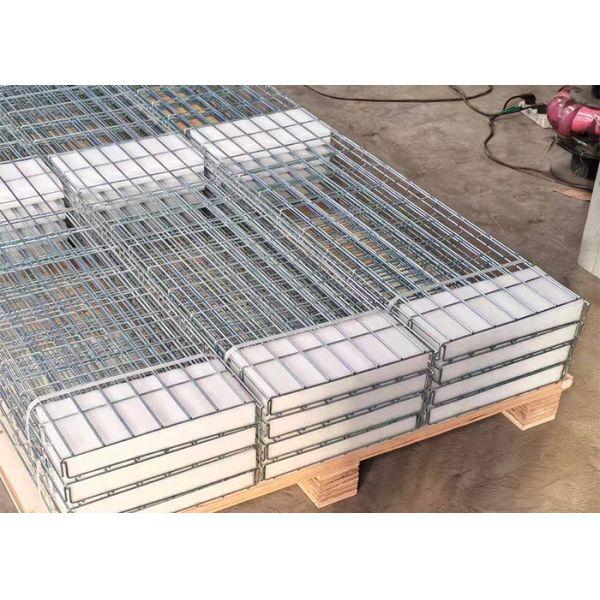

Packaging Details :
pallet
product name :
cable basket
color :
metal or customize
material :
galvanized/aluminum
key words :
100mm Cable Basket
Description

100mm Cable Basket

bending company's cable basket Features and Selection Guide

A 100mm cable basket is a lightweight, highly flexible solution suitable for small to medium-scale low-voltage and data cable management. Its selection is primarily based on load capacity, accessory systems, and installation efficiency.

The table below consolidates the key features, core differences, and selection guidelines for the 100mm specification:

Feature Dimension Specific Explanation & Impact on Selection
Core Physical Specifications Width: Fixed at 100mm.
Height/Depth: Common options include 30mm, 60mm, 65mm, and 100mm. A greater depth indicates higher cable capacity and stacking capability.
Length: Standard length is 3 meters.
Mesh Size: Commonly 50mm x 100mm.
Universal Product Features Lightweight & High Strength: Lighter than traditional cable trays, facilitating handling and installation.
Fully Open Structure: Excellent ventilation and heat dissipation; cables can be laid or accessed from any point.
Installation Flexibility: Can be cut on-site, adjusted for direction, and quickly assembled into T-junctions, right angles, etc.
Key Selection Differentiators 1. Material & Finish:
- Electro-galvanized Steel: Most common, cost-effective, suitable for most indoor environments.
- Carbon Steel + Powder Coating: Offers more color options (e.g., black) for better aesthetics.
- Stainless Steel (304/316): For highly corrosive environments (e.g., food, chemical, coastal); higher cost.
2. Connector System:
- Bolted Type: Provides electrical continuity and greater stability.
- Quick-Snap/Push-in Type: Tool-less, extremely fast installation, but may require separate grounding.
3. Load Capacity & Certification:
- Clarify that heavy loads are not its primary strength; suitable for lighter-duty installations.
- Prefer products certified to international standards like IEC 61537.
Supporting Components A complete system requires: Connectors, Corner/Tee/Cross Fittings, Cable Drop-out Accessories, and Supporting Hangers (e.g., threaded rods).

Galvanized Aluminum Wire Mesh Cable Tray 100mm Cable Basket

  • Define Purpose and Capacity: The 100mm width is suitable for data, communication, and low-voltage control cables. Select the depth based on the total number and diameter of cables, reserving about 40% for future expansion.

  • Verify Load and Support: Request the specific product's "Load Capacity Curve" from the supplier. Support hanger spacing typically should not exceed 2 meters, with additional supports required at bends.

  • Ensure System Compatibility: Choose components from the same brand or confirmed compatible systems to ensure secure and reliable installation.

In summary, when selecting a 100mm cable basket: Depth (30mm/60mm/100mm) determines capacity; Connector type (Quick-snap vs. Bolted) determines installation efficiency; and Material (Galvanized Steel/Stainless Steel) determines environmental suitability.

Galvanized Aluminum Wire Mesh Cable Tray 100mm Cable Basket

Galvanized Aluminum Wire Mesh Cable Tray 100mm Cable Basket

Galvanized Aluminum Wire Mesh Cable Tray 100mm Cable Basket

Galvanized Aluminum Wire Mesh Cable Tray 100mm Cable Basket

Galvanized Aluminum Wire Mesh Cable Tray 100mm Cable Basket
