2L Low-noise Vertical Planetary Ball Milling Machine For Laboratory
2L Low-noise Vertical Planetary Ball Milling Machine For Laboratory
2L Low-noise Vertical Planetary Ball Milling Machine For Laboratory
2L Low-noise Vertical Planetary Ball Milling Machine For Laboratory
2L Low-noise Vertical Planetary Ball Milling Machine For Laboratory
2L Low-noise Vertical Planetary Ball Milling Machine For Laboratory
2L Low-noise Vertical Planetary Ball Milling Machine For Laboratory
2L Low-noise Vertical Planetary Ball Milling Machine For Laboratory
Specifications
Brand Name :
ACEY
Model Number :
ACEY-VHBM-2L
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 2350~2449/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Compatible Grinding Jars :
(250ml~1500ml) * 4
Max Feeding Capacity :
1/3 Capacity Of The Grinding Jar
Roll placement :
vertical placement
Sample Type :
Hard, Medium-hard, Soft, Fibrous, Brittle, Moist
Dimensions :
720*480*630mm
Equipment weight :
140KG
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Description
2L Low-noise Vertical Planetary Ball Milling Machine For Laboratory
The ACEY-VHBM-2L planetary ball mill supports dry grinding, wet grinding in suspension, and operation under inert gas atmospheres. In addition to size reduction, it is suitable for mixing and homogenizing emulsions and pastes, as well as for mechanical alloying and material activation in research applications. Compact in design yet fully functional, the instrument delivers high efficiency with low noise levels. It offers an ideal solution for obtaining research samples in institutes, universities, and industrial laboratories, with the capability to process up to four samples simultaneously in a single run. When equipped with vacuum-compatible milling jars, samples can also be ground under vacuum conditions. The system is widely applied across various fields including geology, mining, metallurgy, electronics, construction materials, ceramics, chemical engineering, light industry, pharmaceuticals, and environmental protection.
Key Features
  • Multiple grinding modes to choose from
  • High uniformity and excellent repeatability
  • Fast rotational speed, high efficiency and fine granularity
  • Four samples with different sizes and materials in one experiment
  • Programmable interval and pause times
  • Stepless speed regulation with reversing function
  • Large range of materials available for grinding tools
  • Gear-drive offers effective solution to belt driving problems
  • Low center of gravity, good rigidity, compact structure, low noise
  • Safe and reliable operation with no pollution and minimal wear
  • Cooling of grinding chamber with built-in fan for extended operation
Technical Specifications
Working Principle Impact and friction force
Compatible Grinding Jars (250ml~1500ml) * 4
Max Feeding Capacity 1/3 capacity of the grinding jar
Operation Mode 2 or 4 grinding jars working simultaneously
Feeding Granularity* Soil materials < 10mm, others materials < 3mm
Discharging Granularity Down to 0.1μm
Sample Type Hard, medium-hard, soft, fibrous, brittle, moist
Rotational Speed of Grinding Jar 800rpm
Rotational Speed Ratio 1:2
Drive Mode Gear drive and belt drive
Speed Control Stepless speed regulation
Electrical Details 110V/220VAC, 50/60Hz, single phase, 0.75KW
Max Continuous Grinding Time 72 hours (full-load)
Weight 140KG
Dimension (L*W*H) 720*480*630mm
Noise Level < 70dB

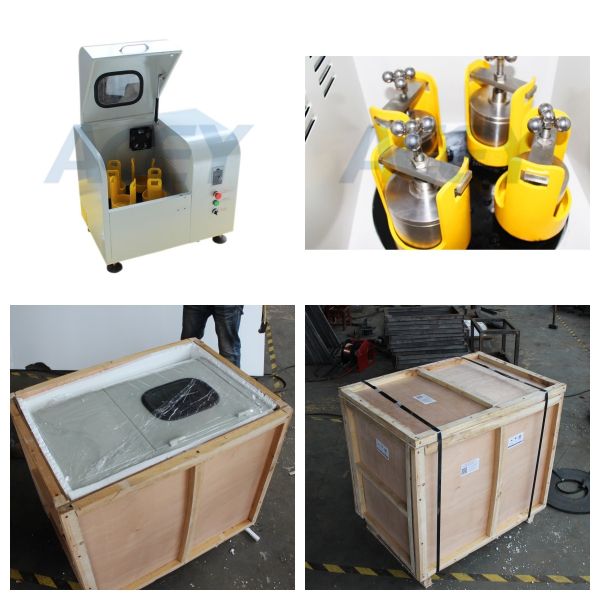

Product Image
