Specifications
Brand Name :
ACEY
Model Number :
ACEY-WM-C
MOQ :
1 Set
Price :
USD 1380~1438/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Power supply :
220V/50Hz
Power :
25W～40W
Speed :
0～170 rpm adjustable
Weight :
About 25KG
Place of Origin :
China
Warranty :
1 Year Warranty With Lifetime Support
Certification :
CE
Packaging Details :
Plywood Case
After-sales Service :
24/7 Technical Support
Description

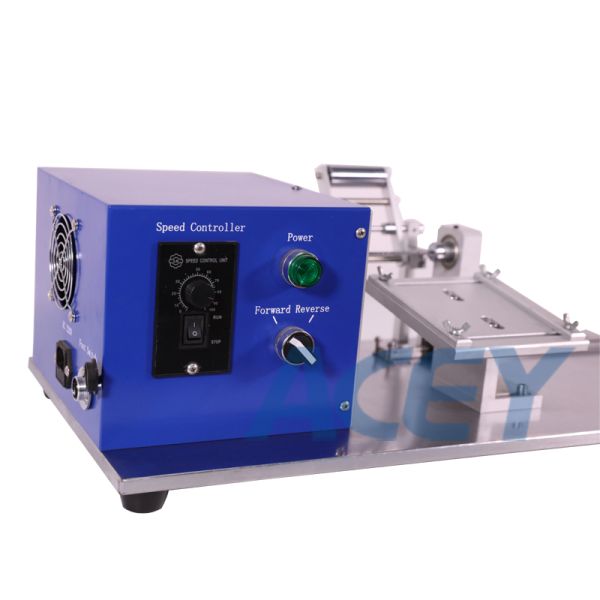

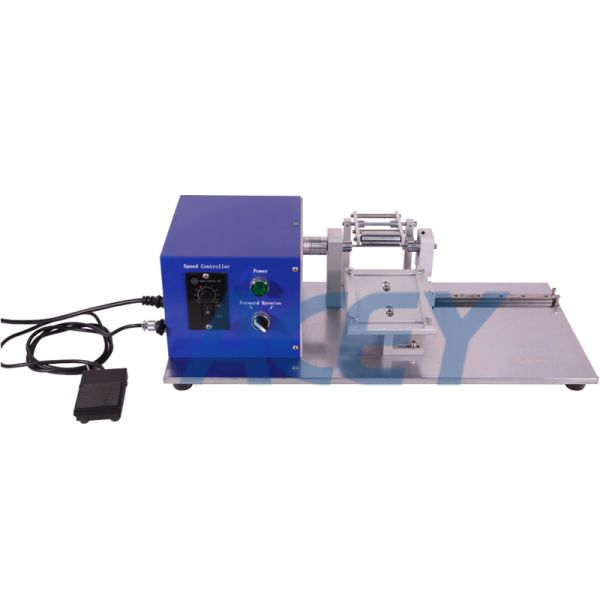

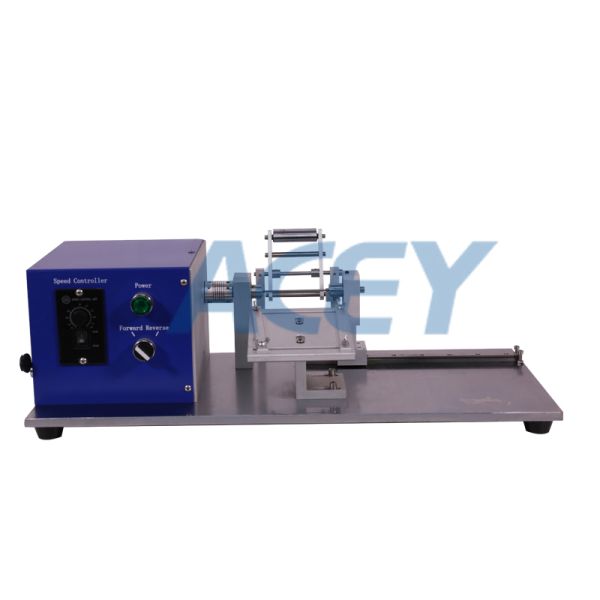

High Precision 18650 Battery Winding Machine for Cylindrical Cell Production
Product Overview

The ACEY-WM-C battery winding machine is specifically engineered for winding aluminum foil packaged batteries, cylindrical batteries, and supercapacitors. This precision equipment winds positive electrodes, negative electrodes, and separators into finished cells with exceptional accuracy and reliability.

Designed with compact dimensions and intuitive operation, the machine offers easy adjustment, simple maintenance, and minimal winding needle yaw. Features include adjustable guide plate positions (up/down, left/right, front/back) and foot switch control for forward and reverse rotation, ensuring user-friendly operation, safety, and reliability.

Key Features

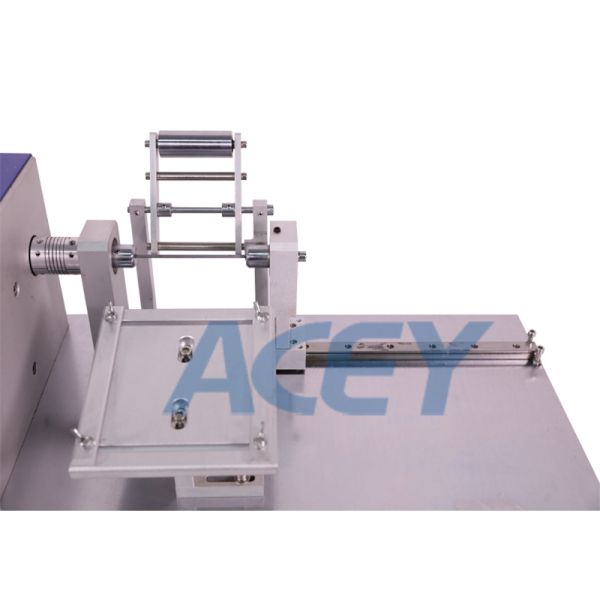

  • Adjustable guide pole piece groove and ruler positions (up/down, left/right, front/back)
  • Winding idler ensures optimal winding tightness during battery production
  • Enhanced winding tail bracket improves battery winding accuracy
  • Forward and reverse winding capability with stepless speed regulation
  • Compact design with attractive appearance and easy operation
Technical Specifications
Power Supply 220V/50Hz
Power 25W～40W
Speed 0～170 rpm adjustable
Applicable Flat Battery Cell Size Length (20～100) × Width (20～80) × Thickness (0.5～10) mm (customizable)
Applicable Cylindrical Batteries Φ35*L90mm or less (winding needle replacement required for switching between flat and cylindrical batteries)
Equipment Dimensions L600mm × 310mm × 290mm
Equipment Weight 25Kg
Product Display
High Precision 18650 Battery Winding Machine for Cylindrical Cell Production
