Semi-Auto Battery Electrode Winder for 18650 Cylindrical Lithium Battery Assembly
Semi-Auto Battery Electrode Winder for 18650 Cylindrical Lithium Battery Assembly
Semi-Auto Battery Electrode Winder for 18650 Cylindrical Lithium Battery Assembly
Semi-Auto Battery Electrode Winder for 18650 Cylindrical Lithium Battery Assembly
Specifications
Brand Name :
ACEY
Model Number :
ACEY-SWM-C
MOQ :
1 Set
Price :
USD 14500~14800/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Diaphragm width :
30mm~60mm
Tape width :
8mm~16mm
Winding accuracy :
≤±0.3mm
Speed :
5~7 Pcs/min
Power source :
AC220V 50HZ
Weight :
About 600KG
Place of Origin :
China
Warranty :
1 Year Warranty With Lifetime Support
Certification :
CE
Packaging Details :
Plywood Case
After-sales Service :
24/7 Technical Support
Description
Semi-Auto Battery Electrode Winder for 18650 Cylindrical Lithium Battery Assembly
Product Overview

ACEY-SWM-C the semi-automatic cylindrical winding machine is specifically designed for the winding process of cylindrical lithium-ion battery pole pieces. Compared with manual winding equipment, it delivers significantly higher winding efficiency and improved alignment, along with greater flexibility in accommodating various battery dimensions. This makes it an ideal solution for diverse cylindrical battery winding requirements in lithium battery R&D laboratories.

Key Features
  • Suitable for semi-automatic dedicated production of cylindrical lithium-ion batteries
  • Automatic diaphragm release, automatic winding, automatic tape termination and automatic unloading
  • Diaphragm supplied with constant tension for consistent cell tension
  • Pole piece guide plate easily adjusts width to accommodate large range of pole pieces
  • User-friendly man-machine interface for simple and intuitive operation
  • Automatic alarm and fault location display for easy troubleshooting
  • Easy to learn operation for rapid productivity development
Technical Specifications
Needle diameter Ф3mm, Ф4mm, Ф5mm (customizable according to customer requirements)
Positive and negative plates length 90mm~650mm
Positive and negative plates width 28mm~58mm
Diaphragm width 30mm~60mm
Tape width 8mm~16mm
Winding accuracy ≤±0.3mm (alignment error between diaphragm and positive/negative plates)
Speed 5~7 Pcs/min
Air source 0.5~0.7 Mpa
Power source AC220V 50HZ, Power: 1.0KW
Equipment size 1600mm x 1300mm x 1500mm
Weight Approximately 600KG
Product Display

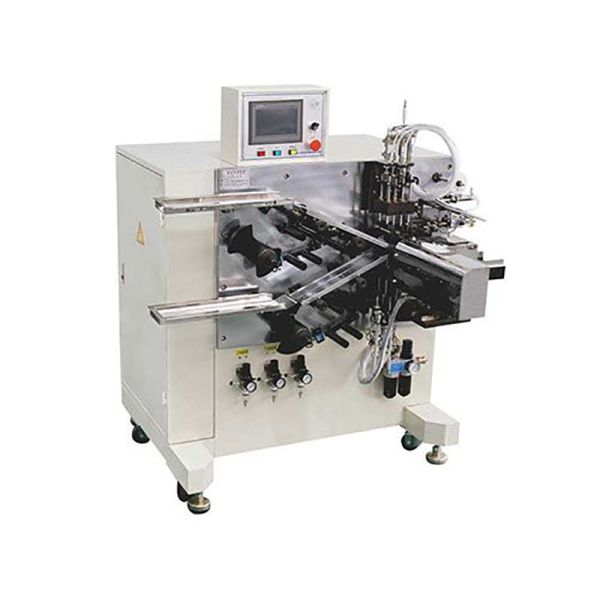

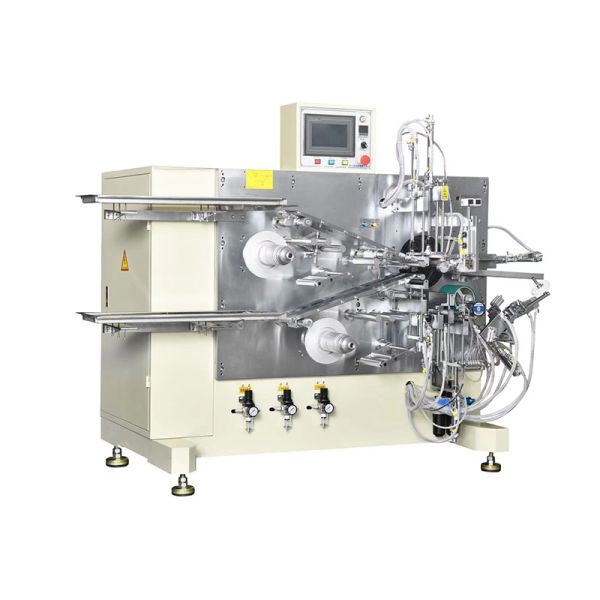

Semi-Auto Battery Electrode Winder for 18650 Cylindrical Lithium Battery Assembly Semi-Auto Battery Electrode Winder for 18650 Cylindrical Lithium Battery Assembly
