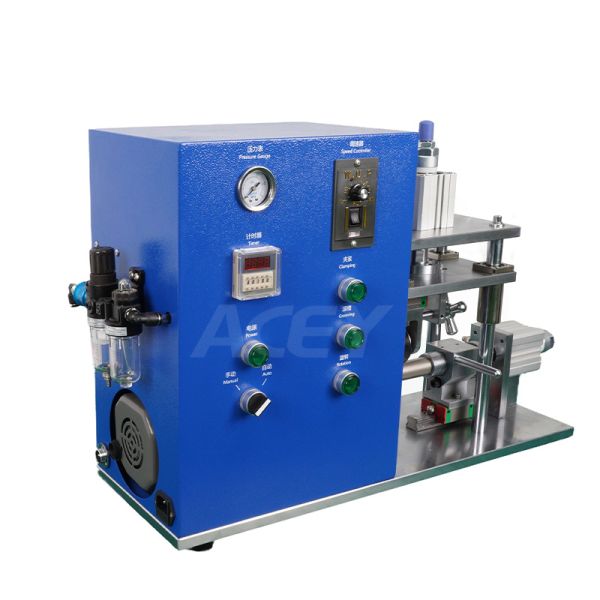

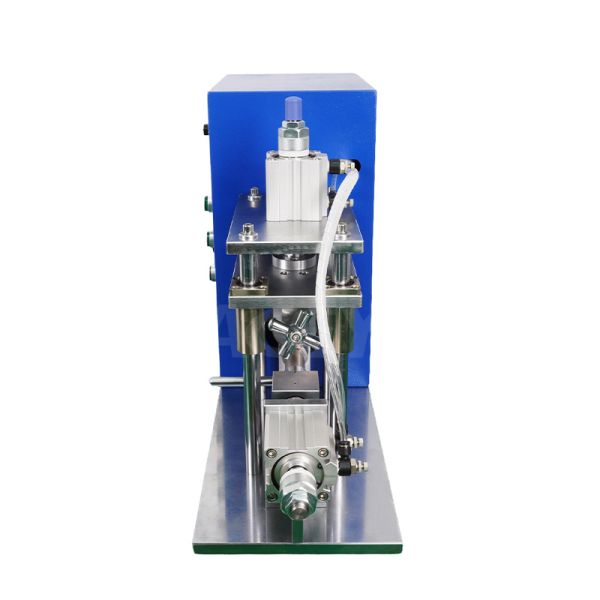

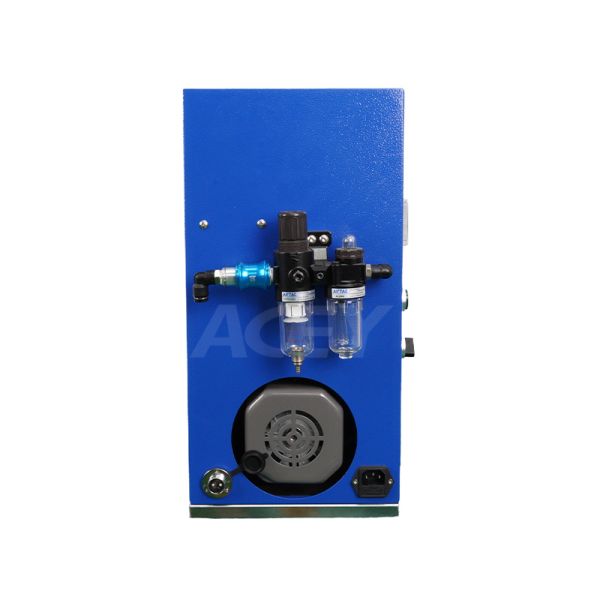

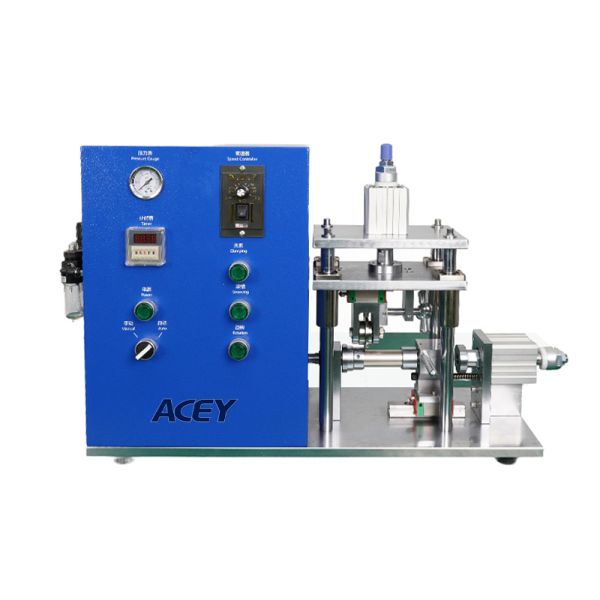

Semi Automatic Cylindrical Battery Case Grooving Machine for 18650/21700 Cells
Semi Automatic Cylindrical Battery Case Grooving Machine for 18650/21700 Cells
Semi Automatic Cylindrical Battery Case Grooving Machine for 18650/21700 Cells
Semi Automatic Cylindrical Battery Case Grooving Machine for 18650/21700 Cells
Semi Automatic Cylindrical Battery Case Grooving Machine for 18650/21700 Cells
Semi Automatic Cylindrical Battery Case Grooving Machine for 18650/21700 Cells
Semi Automatic Cylindrical Battery Case Grooving Machine for 18650/21700 Cells
Semi Automatic Cylindrical Battery Case Grooving Machine for 18650/21700 Cells
Specifications
Brand Name :
ACEY
Model Number :
ACEY-GM-1
MOQ :
1 Set
Price :
USD 2960~3084/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Power supply :
220V/50Hz
Power :
140W
Roll groove depth :
1.2～2.0mm (adjustable)
Rolling groove width :
1.1～1.5mm
Dimensions :
820mm X 255mm X 510mm
Weight :
About 25KG
Place of Origin :
China
Warranty :
1 Year Warranty With Lifetime Support
Certification :
CE
Packaging Details :
Plywood Case
After-sales Service :
24/7 Technical Support
Description
Semi Automatic Cylindrical Battery Case Grooving Machine for 18650/21700 Cells
The ACEY-GM-1 battery grooving machine is designed for uniform and automated grooving of cylindrical steel cases (or aluminum capacitor cases) that contain batteries. By changing the grooving dies, the machine can be adapted to produce cylindrical cells in various specifications.
Key Features
  • Adjustable rolling groove size with high precision and stable dimensional consistency
  • Capable of processing various types of rolling grooves for cylindrical batteries
  • Compact size with exquisite appearance and easy operation
  • Suitable for rolling grooves of various steel-shell cylindrical batteries (18650, 26650, 21700)
  • Also suitable for rolling grooves of aluminum-shell capacitors with diameter within Φ30
Technical Specifications
Roll groove depth 1.2～2.0mm (adjustable)
Rolling groove width 1.1～1.5mm (according to the thickness of the hob)
Processing accuracy ±0.1mm
Hob life > 1 million times
Capacity Semi-automatic 400 EA/H
Configuration power supply 220v/50Hz
Power 140W
Compressed air 0.5MPa～0.7MPa
Dimensions 820mm X 255mm X 510mm
Weight 80kg

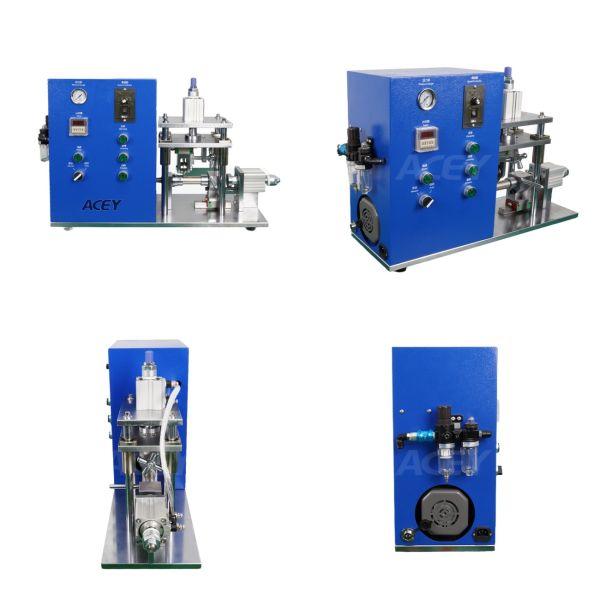

Product Display
Semi Automatic Cylindrical Battery Case Grooving Machine for 18650/21700 Cells
