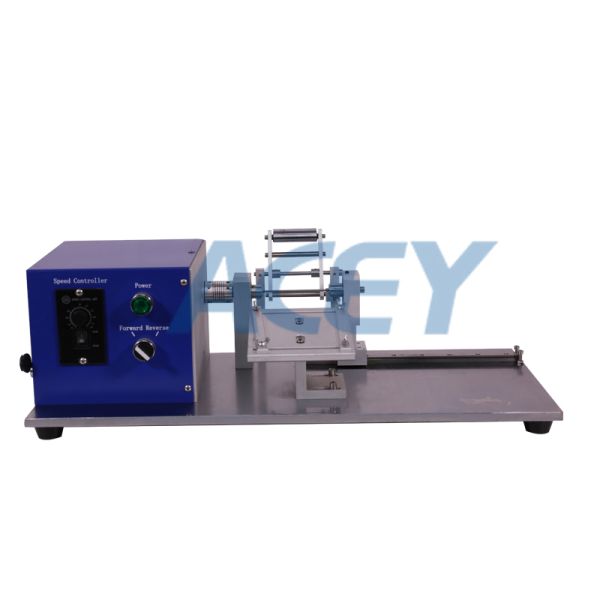

Semi Automatic 18650 Cylindrical Battery Electrode Winding Machine
Semi Automatic 18650 Cylindrical Battery Electrode Winding Machine
Semi Automatic 18650 Cylindrical Battery Electrode Winding Machine
Semi Automatic 18650 Cylindrical Battery Electrode Winding Machine
Semi Automatic 18650 Cylindrical Battery Electrode Winding Machine
Semi Automatic 18650 Cylindrical Battery Electrode Winding Machine
Semi Automatic 18650 Cylindrical Battery Electrode Winding Machine
Semi Automatic 18650 Cylindrical Battery Electrode Winding Machine
Specifications
Model Number :
ACEY-WM-C
Price :
USD 1380~1438/Set
Power supply :
220V/50Hz
Power :
25W～40W
Speed :
0～170 rpm adjustable
Weight :
About 25KG
Brand Name :
ACEY
MOQ :
1 Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Place of Origin :
China
Warranty :
1 Year Warranty With Lifetime Support
Certification :
CE
Packaging Details :
Plywood Case
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

Semi-automatic18650 Cylindrical Battery Electrode Winding Machine

Description

ACEY-WM-C is specially used for the winding of aluminum foil packaging batteries/cylindrical batteries and supercapacitors. The positive and negative sheets and the separator are wound into batteries. The machine is small in size, easy to adjust, operate and maintain; the winding needle yaw degree is small; the up and down, left and right, and front and rear positions of the guide plate are adjustable; the foot switch controls the forward and reverse rotation. It has the characteristics of easy operation, safe and reliable, beautiful appearance, etc.

Features

*The up and down, left and right, front and rear positions of the guide pole piece groove and ruler can be adjusted;
* Winding idler to ensure the winding tightness when the battery is wound;
* Increase the winding tail bracket to improve the winding accuracy of the battery;
* Winding can be forward and reverse, winding stepless speed regulation;
*The machine is small in size, exquisite and beautiful in appearance, and easy to operate;

Specification

Power supply: 220V/50Hz;
Power: 25W～40W;
Speed: 0～170 rpm adjustable;
Applicable flat battery cell size mm: length (20～100) X width (20～80) X thickness (0.5～10) according to customer's choice.
Applicable cylindrical batteries: Φ35*L90mm or less (replacement of winding flat batteries and cylindrical batteries requires replacement of winding needles)
Equipment size: L600mm*310mm*290mm;
Equipment weight: 25Kg;

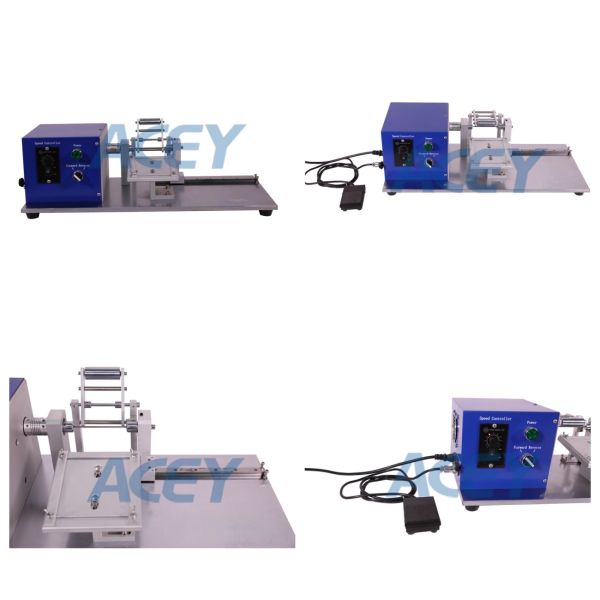

Product Display

Semi Automatic 18650 Cylindrical Battery Electrode Winding Machine
