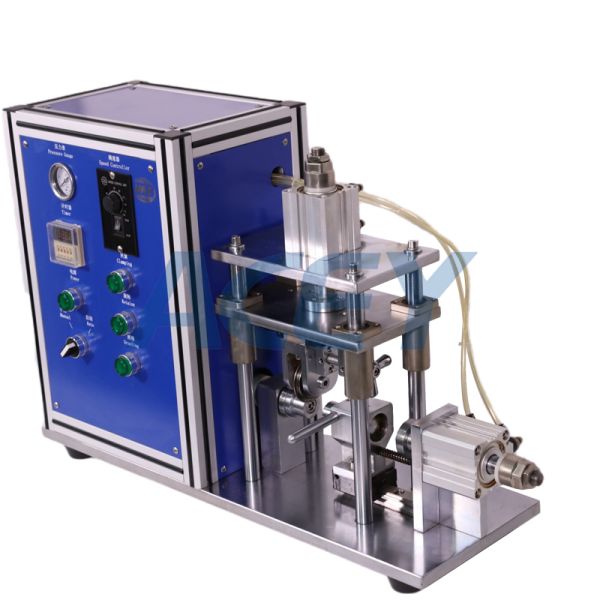

18650 Cylindrical Battery Cell Case Grooving Machine
18650 Cylindrical Battery Cell Case Grooving Machine
18650 Cylindrical Battery Cell Case Grooving Machine
18650 Cylindrical Battery Cell Case Grooving Machine
18650 Cylindrical Battery Cell Case Grooving Machine
18650 Cylindrical Battery Cell Case Grooving Machine
18650 Cylindrical Battery Cell Case Grooving Machine
18650 Cylindrical Battery Cell Case Grooving Machine
Specifications
Model Number :
ACEY-GM-1
Price :
USD 2960~3084/Set
Power supply :
220V/50Hz
Power :
140W
Roll groove depth :
1.2～2.0mm (adjustable)
Rolling groove width :
1.1～1.5mm
Dimensions :
820mm X 255mm X 510mm
Weight :
About 25KG
Brand Name :
ACEY
MOQ :
1 Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Place of Origin :
China
Warranty :
1 Year Warranty With Lifetime Support
Certification :
CE
Packaging Details :
Plywood Case
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

18650 Cylindrical Battery Cell Case Grooving Machine

Description

ACEY-GM-1 is designed for uniform and automated grooving of cylindrical steel cases (or aluminum capacitor cases) containing batteries. By replacing the grooving dies, it can be adapted to produce cylindrical cells in various specifications.

Features

*The rolling groove size is adjustable, with high precision and stable size.
*It can process various rolling grooves of cylindrical batteries.
*The machine is small in size, exquisite and beautiful in appearance, and easy to operate;
*Suitable for various steel shell cylindrical battery roll grooves such as 18650, 26650.21700...
*Suitable for aluminum shell capacitor rolling groove within Φ30

Specification

Roll groove depth: 1.2～2.0mm (adjustable)
Rolling groove width: 1.1～1.5mm (according to the thickness of the hob)
Processing accuracy: ±0.1mm
Hob life: > 1 million times
Capacity: Semi-automatic 400 EA/H
Configuration power supply: 220v/50Hz
Power 140W
Compressed air: 0.5MPa～0.7MPa
Dimensions: 820mm X 255mm X 510mm
Weight: 80kg.

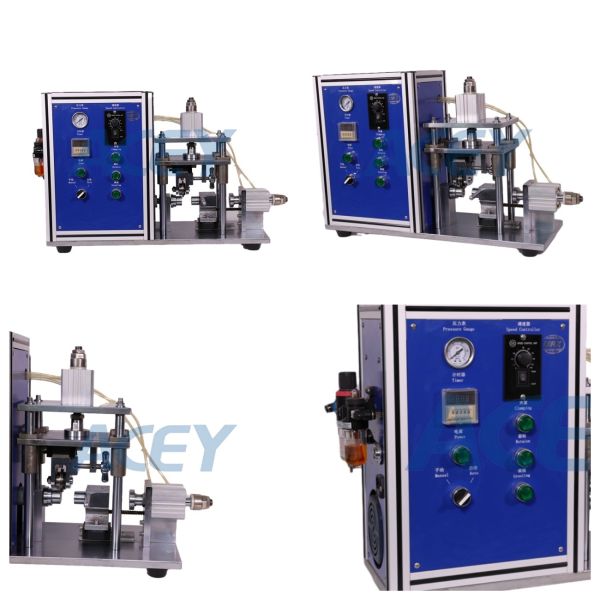

Product Display

18650 Cylindrical Battery Cell Case Grooving Machine
