Semi Automatic Cylindrical Lithium Battery Winding Machine For Cylindrical Cell Assembly
Semi Automatic Cylindrical Lithium Battery Winding Machine For Cylindrical Cell Assembly
Semi Automatic Cylindrical Lithium Battery Winding Machine For Cylindrical Cell Assembly
Semi Automatic Cylindrical Lithium Battery Winding Machine For Cylindrical Cell Assembly
Specifications
Model Number :
ACEY-SWM-C
Price :
USD 14500~14800/Set
Diaphragm width :
30mm~60mm
Tape width :
8mm~16mm
Winding accuracy :
≤±0.3mm
Speed :
5~7 Pcs/min
Power source :
AC220V 50HZ
Weight :
About 600KG
Brand Name :
ACEY
MOQ :
1 Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Place of Origin :
China
Warranty :
1 Year Warranty With Lifetime Support
Certification :
CE
Packaging Details :
Plywood Case
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

Semi-automatic Cylindrical Lithium Battery Winding Machine For Cylindrical Cell Assembly

Description

ACEY-SWM-C is mainly used for precision winding of 18650 batteries. The working process is: the positive and negative plates are manually introduced into the winding part, stacked with the separator, wound according to the process requirements, the termination tape is automatically attached, and the battery core is automatically unloaded.

Features

*Suitable for semi-automatic dedicated production of cylindrical lithium-ion batteries

* Automatic diaphragm release, automatic winding, automatic tape termination and automatic unloading;

*Diaphragm is supplied with constant tension, and the cell tension is consistent;

*The pole piece guide plate can easily adjust the width, adapt to a large range of pole pieces;

*Using man-machine interface to control the machine, the operation is simple and intuitive;

*Automatically alarm and display the fault location when abnormality occurs, which is convenient for processing;

* The operation is easy and simple to learn, and productivity can be formed as soon as possible.

Specification

Needle diameter:

Ф3mm, Ф4mm, Ф5mm (can be customized according to customer requirements)

The length of the

positive and negative plates:

90mm~650 mm

The width of the

positive and negative plates:

28mm~58mm

Diaphragm width:

30mm~60mm

Tape width:

8mm~16mm

Winding accuracy:

≤±0.3mm (alignment error between diaphragm and positive and negative plates)

Speed:

5~7 Pcs/min

Air source:

0.5~0.7 Mpa

Power source:

AC220V 50HZ power: 1.0KW

Equipment size:

1600mmx1300mmx1500mm

Weight:

about 600KG

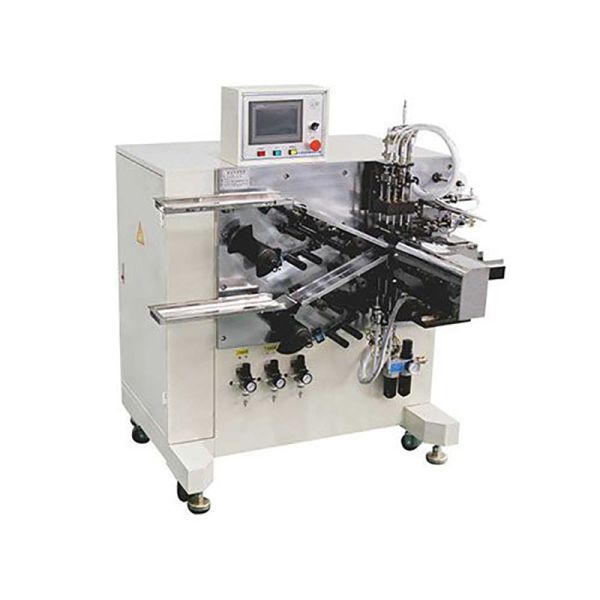

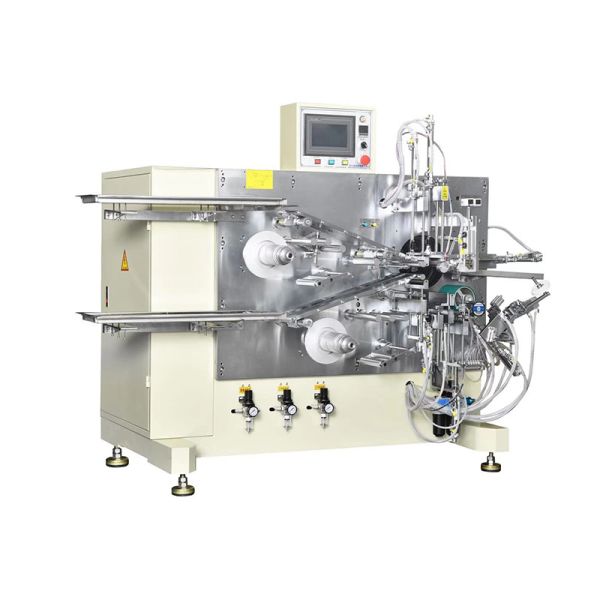

Product Display

Semi Automatic Cylindrical Lithium Battery Winding Machine For Cylindrical Cell AssemblySemi Automatic Cylindrical Lithium Battery Winding Machine For Cylindrical Cell Assembly
