Desktop Lab Battery Electrode Foil Slitter Slitting Machine
Desktop Lab Battery Electrode Foil Slitter Slitting Machine
Desktop Lab Battery Electrode Foil Slitter Slitting Machine
Desktop Lab Battery Electrode Foil Slitter Slitting Machine
Desktop Lab Battery Electrode Foil Slitter Slitting Machine
Desktop Lab Battery Electrode Foil Slitter Slitting Machine
Desktop Lab Battery Electrode Foil Slitter Slitting Machine
Desktop Lab Battery Electrode Foil Slitter Slitting Machine
Specifications
Model Number :
ACEY-SM300
Price :
USD 6800~7086/Set
Cutter width :
20～300mm
Can be cut thickness :
80-300μm battery pole piece
Cutter diameter :
100mm
Width adjustment :
Spacer adjustment
Voltage :
AC220V/50Hz
Equipment weight :
About 90KG
Brand Name :
ACEY
MOQ :
1 Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Place of Origin :
China
Warranty :
1 Year Warranty With Lifetime Support
Certification :
CE
Packaging Details :
Plywood Case
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

Lab Battery Electrode Foil Slitter Slitting Machine

Product Description

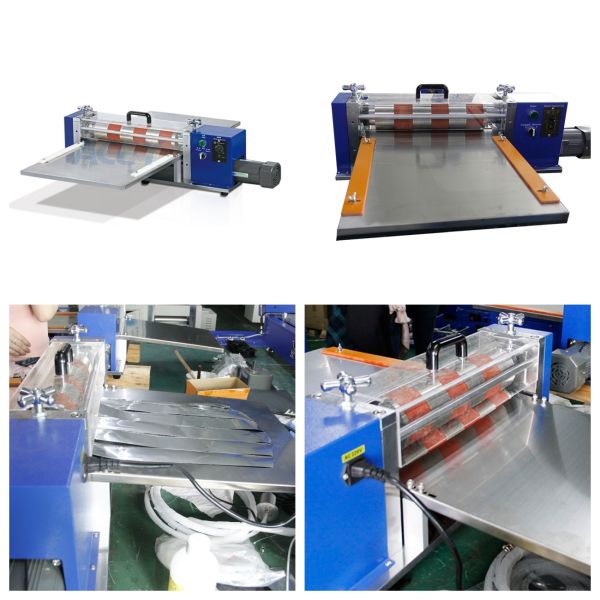

ACEY-SM300 electric slitting machine is designed for precision slitting of lithium‑ion battery positive and negative electrode sheets. It operates with chip feeding and uses upper and lower circular blades driven by an electric motor. The slit width is adjustable by setting the spacing between the blade separators.

Features

*Adjustable guide device for feeding positioning
*Using electric rolling and slitting method;
*The amount of engagement can be adjusted;
*Upper and lower blades are at the same speed, synchronous transmission;
*The hob is equipped with a plexiglass protection device for safe operation;
*Open-type hob fixing method is convenient for hob disassembly;
*High cutting precision and reliable work;

Specification

Cutting knife type: upper and lower round knife cut
Cutter width: 20～300mm
Distribution of knife interval: 56±0.1mm, 56±0.1mm, 56±0.1mm, 58±0.1mm, 58±0.1mm. 58±0.1mm.
Can be cut thickness: 80-300μm battery pole piece
The amount of knife eaten: the hand wheel is adjustable 0.2-0.4mm
Cutter diameter: 100mm
Cutter material: ultra-fine alloy steel
Width adjustment: spacer adjustment
Slitting speed: <2m/min, adjustable knob
Power supply: AC220V/50Hz
Power: 0.5KW
Dimensions: length 840 × width 600 × height 310 (mm)
Weight: about 90KG;

Product DetailsDesktop Lab Battery Electrode Foil Slitter Slitting Machine
