Specifications
Brand Name :
ACEY
Model Number :
ACEY-4GBS
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 16000~26800/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
4 Shelves :
Stainless steel SUS304
4 Glove Port :
Aluminum alloy
Power :
220 VAC
Chamber :
Stainless steel 304 with 3 mm thickness
Oxygen concentration :
<1 ppm (20 °C, 1 atm)
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Description

Double Station Stainless Steel Vacuum Glove Box with Gas Purification System

Product Description

ACEY-4GBS Box and gas purification system, form a sealed environment, filled with Inert gas or nitrogen to the cabinets, and circulation to remove internal active substances, allowing the system always maintain high cleanliness and high purity inert gas environment (water, oxygen are equipment a 1 ppm below according to ISO 10648-2 ).Mainly for O2, H2O clearing.

Product Application

  • Anhydrous, anaerobic and clean, ultra-clean work environment
  • The R&D and production of batteries and battery materials (lithium-ion battery, battery, solar cell, the lithium iron phosphate, etc.)
  • The R&D and manufacturing of special lamps: HID lamps, metal halide, ceramic metal halide.
  • Welding: resistance welding, TIG welding, laser welding, plasma welding, brazing.
  • OLED R&D and production.
  • The development and production of medical supplies.
  • Development and production of the super capacitor.
  • Fine chemicals, nuclear industry.
  • The new energy and new materials development and production.

Product Parameter

The body of the glove box:

Configuration and Quantity Technical parameters Remark
1 Main Chamber L1900 x W760 Stainless steel 304 with 3 mm thickness
x H900 Round corner for easy cleaning
1 transparent thickness: 10mm Inclined panel of tempered window glass with thickness of 10mm;
visualization panel
1 leg support H = 900mm Carbon steel,with casters (with support feet), convenient mobile glovebox, fine-tune the level
4 Shelves Stainless steel SUS304 Adjustable type shelves
L x D = 800 x 200 mm
4 Glove Port Aluminum alloy Option material: stainless steel / Polyoxymethylene polymer
∅220mm
4 Gloves Cuff diameter 8”, Material: butyl rubber;
Length 800mm, O-ring sealed
Thickness: 0.4mm Brand: NORTH (USA)
Option material: Neoprene / Rubber
1 Power Board 220 VAC 220 VAC, 50 Hz, single phase
1 Lighting system Lamp, ballast Built-in fluorescent lamp
Brand: Philips (Netherlands)
2 HEPA filters Subject to HEPA standards Inlet and outlet filter can eliminate particle size >0.3 μm, installed in the cabinets
4 KF40 Spare connectors KF40 Configuration quick connector, located in the box right side, so that the liquid or gas can be easily and safely in and out of the cabinet.
Material: SUS304 stainless steel
1 Electrical Feedthrough Connect Use Installed on one of 4 KF40 Spare connectors
1 Gas / liquid Feedthrough Connect Use Installed on one of 4 KF40 Spare connectors

Product Display

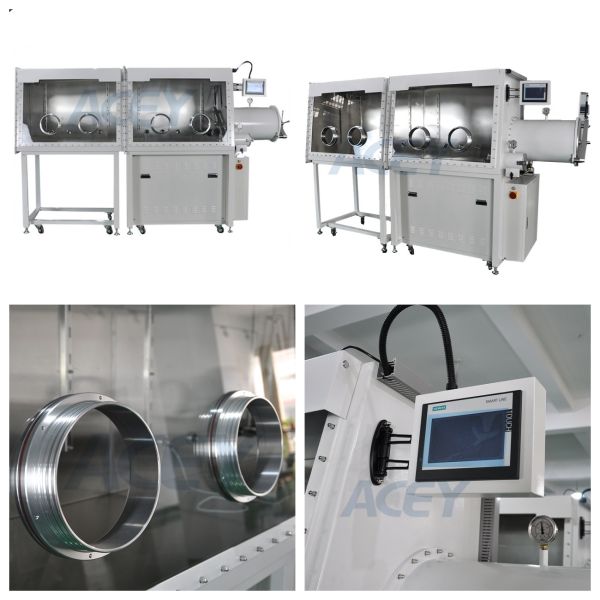

Double Station Stainless Steel Vacuum Glove Box with Gas Purification System
