Cylindrical Battery Tab Pulse Spot Welder Welding Machine
Cylindrical Battery Tab Pulse Spot Welder Welding Machine
Cylindrical Battery Tab Pulse Spot Welder Welding Machine
Cylindrical Battery Tab Pulse Spot Welder Welding Machine
Cylindrical Battery Tab Pulse Spot Welder Welding Machine
Cylindrical Battery Tab Pulse Spot Welder Welding Machine
Cylindrical Battery Tab Pulse Spot Welder Welding Machine
Cylindrical Battery Tab Pulse Spot Welder Welding Machine
Specifications
Model Number :
ACEY-SW-1
Price :
USD 1100~1146/Set
Power supply :
AC220V±10% 50～60Hz
Power :
10KVA
Welding current :
00～99
Input air pressure :
0.1～0.7MPa
Dimensions :
L400×W560×H400mm
Weight :
About 40KG
Brand Name :
ACEY
MOQ :
1 Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Place of Origin :
China
Warranty :
1 Year Warranty With Lifetime Support
Certification :
CE
Packaging Details :
Plywood Case
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

Cylindrical Battery Tab Pulse Spot Welder Welding Machine

Description

ACEY-SW-1 designed according to the needs of the world to produce high-end nickel-cadmium, nickel-metal hydride, and lithium batteries . It is used for welding (single pin welding) of the negative electrode shell and the tab of the cylindrical battery.

Features

* The welding current is stable, the size of the solder joints is uniform, the solder joints are beautiful, the sparks are small, and there is no blackening.

*Completely overcome the phenomenon of low pressure and water discharge after spot welding of lithium batteries, which is an ideal equipment for the production and assembly of batteries.

*Using microcomputer single-chip microcomputer control, single pulse, double pulse and multi-pulse welding can be realized.

*All parameters are set digitally, so parameter adjustment is intuitive and accurate.

*The welding needle pressure is independently adjusted, and the adjustment is convenient to ensure that the welding pressure is stable and reliable.

* Accurate alignment welding, suitable for welding small cap batteries, with high yield.

Specification

Output power:

10KVA

Welding current:

00～99

Power supply:

AC220V±10% 50～60Hz

Input air pressure:

0.1～0.7MPa

Scope of application:

suitable for various welding lugs from 0.03mm to 0.25mm

Dimensions:

L400×W560×H400mm

Weight:

40KG;

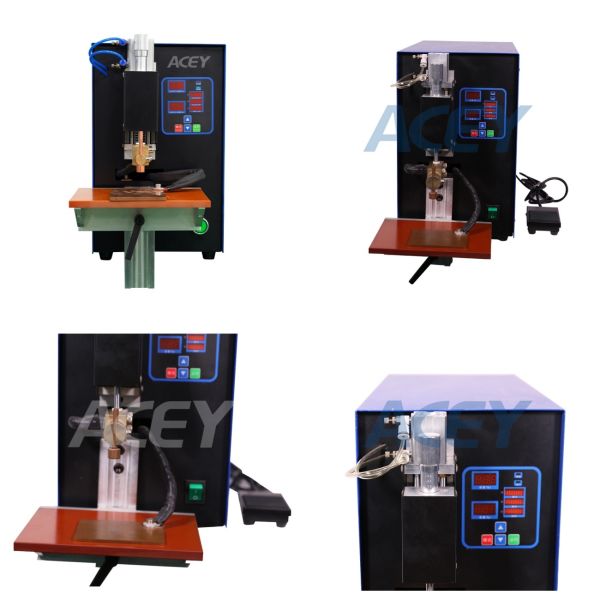

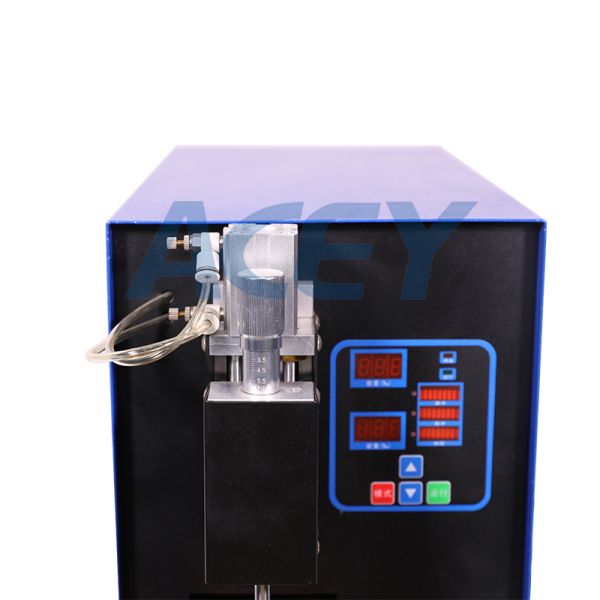

Product Display

Cylindrical Battery Tab Pulse Spot Welder Welding Machine
