800W Laboratory Spot Welding Machine
800W Laboratory Spot Welding Machine
800W Laboratory Spot Welding Machine
800W Laboratory Spot Welding Machine
800W Laboratory Spot Welding Machine
800W Laboratory Spot Welding Machine
800W Laboratory Spot Welding Machine
800W Laboratory Spot Welding Machine
Specifications
Brand Name :
ACEY
Model Number :
ACEY-USW-1
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 4800~5420/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Ultrasonic frequency :
40KHz (automatic tracking)
Drive form :
Pneumatic
Control box size :
L360×W480×H200mm
Pneumatic :
About 60Kg
Working voltage :
AC220V/50Hz
Welding time :
0~1S
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Description

800W Laboratory Spot Welding Machine

Product Description

Ultrasonic metal spot welding machine is commonly used for metal welding in winding and laminating processes. It has the characteristics of small size, beautiful appearance, easy operation, firm structure, stable and safe use.

Product Features

*Touch screen interface, intuitive and convenient frequency automatic tracking.
*No traces of oxidation, ultrasonic has cleaning function, there are stains or oxides on the metal surface, and it can be welded perfectly without surface treatment.
*All workpieces can be welded without pre-processing, no soldering tin, soldering oil additives, economical and convenient.
*The welding head is made of wear-resistant materials with long-lasting durability.
*The internal resistance of the solder joint is small. After welding, the conductivity is good, and its resistivity is extremely low, close to zero.
*The welding time is very short. Generally, the welding can be completed instantly within 0.01-2S seconds.

Product Parameter

Working voltage: AC220V/50Hz
Working air pressure: 0.5~0.7Mpa
Ultrasonic frequency: 40KHz (automatic tracking)
Power: 800W (adjustable)
Welding time: 0~1S
Drive form: pneumatic
pneumatic about 60Kg
Control box size: L360×W480×H200mm
Generator size: L200×W460×H270mm

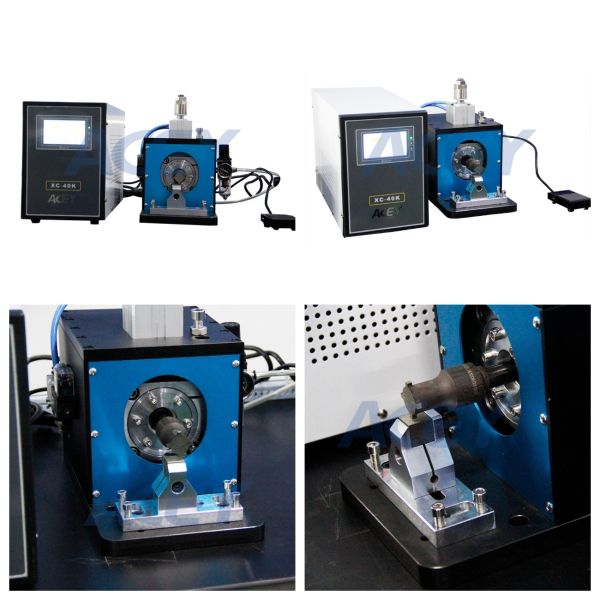

Product Display

800W Laboratory Spot Welding Machine
