Specifications
Measuring range :
1～2,000,000
Brand Name :
ACEY
MOQ :
1 Set
Payment Terms :
T/T,PayPal,L/C,Western Union
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Dimensions :
300 × 300 × 450(mm)
Certification :
CE
Display mode :
liquid-crystal display
Model Number :
NDJ-5S/8S/9S
Price :
USD 560~580/Set
Data processing software :
option
Sample size :
250 – 400ml
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Input power :
AC 220V / 50Hz
Packaging Details :
Plywood Case
Description

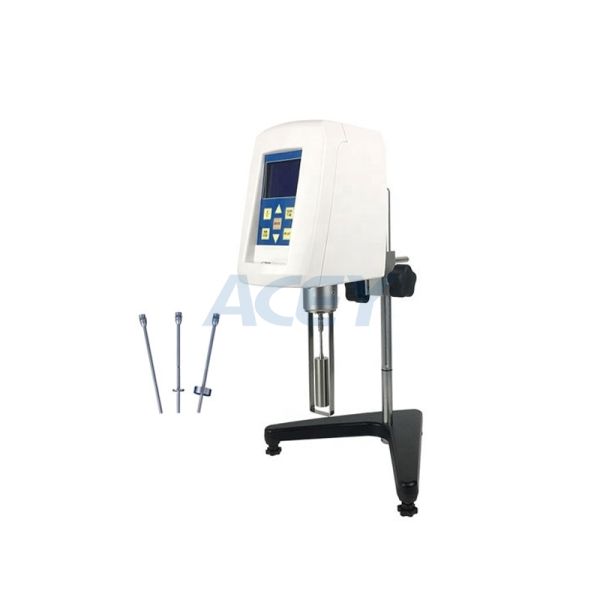

Portable Digital Display Viscometer For Battery Slurry
Product Overview

The NDJ-5S/8S/9S portable viscometer features an LCD backlit display and offers comprehensive functions including program setting, automatic control, timed measurement, auto-scanning, and error alerts. The instrument measures absolute viscosity of Newtonian fluids or apparent viscosity of non-Newtonian liquids, with accompanying data-processing software for rheological analysis.

Widely used across industries and research sectors handling fluids and semi-fluids, including lubricants, paints, coatings, textiles, food, slurries, cosmetics, adhesives, and similar materials.

Key Features
  • Direct LCD screen display - no calculations required
  • Microcomputer drive technology with imported stepper motor for accurate, smooth operation
  • Advanced switching power supply technology - unaffected by power fluctuations
  • Convenient front-mounted level display
  • Viscosity display accuracy to 0.01 mPa·s across all ranges
  • Timing measurement function for non-Newtonian liquid detection
  • Small sample adapters require only 18ml per measurement
  • Automatic scanning function recommends optimal rotor and speed combinations
  • Automatic display of maximum viscosity range for selected combinations
  • Print interface for direct connection to micro printers
  • Optional data processing software for real-time viscosity recording and rheological analysis
Technical Specifications
Parameter NDJ-5S NDJ-8S
Display Mode Liquid-crystal display
Speed (r/min) 6 / 12 / 30 / 60 0.3 / 0.6 / 1.5 / 3 / 6 / 12 / 30 / 60
Rotor 1#, 2#, 3#, 4# (0# rotor optional for ultra low viscosity below 15)
Measuring Range 1～100,000 1～2,000,000
Sample Size 250-400ml (18ml with small sample adapter)
Viscosity Display Accuracy 0.01 mPa·s
Measurement Error ±3% (Newtonian liquid)
Repetitive Error ±1.5% (Newtonian liquid)
Timing Measurement Standard configuration
Temperature Measurement Standard configuration
Data Output Interface Standard configuration
Working Power Supply 110V / 60Hz, 220V / 50Hz
Outline Dimension 300 × 300 × 450 (mm)

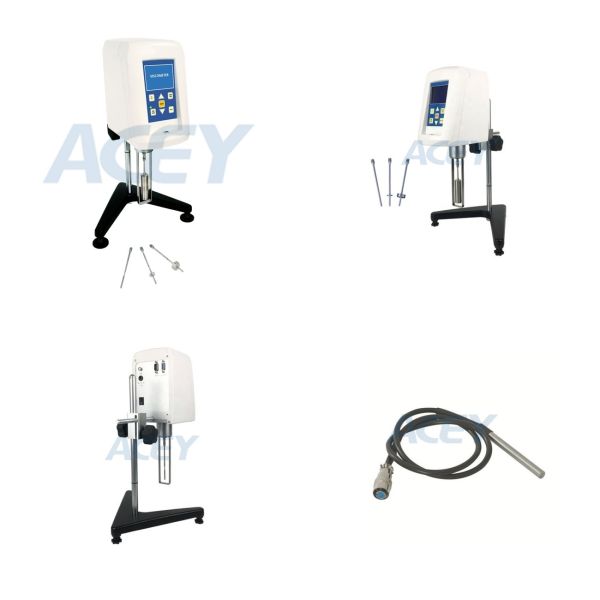

Product Image
Portable Digital Display Viscometer For Battery Slurry
