Precision Pneumatic Cylindrical Battery Sealing Machine For Cylindrical Cell Assembly
Precision Pneumatic Cylindrical Battery Sealing Machine For Cylindrical Cell Assembly
Precision Pneumatic Cylindrical Battery Sealing Machine For Cylindrical Cell Assembly
Precision Pneumatic Cylindrical Battery Sealing Machine For Cylindrical Cell Assembly
Precision Pneumatic Cylindrical Battery Sealing Machine For Cylindrical Cell Assembly
Precision Pneumatic Cylindrical Battery Sealing Machine For Cylindrical Cell Assembly
Precision Pneumatic Cylindrical Battery Sealing Machine For Cylindrical Cell Assembly
Precision Pneumatic Cylindrical Battery Sealing Machine For Cylindrical Cell Assembly
Specifications
Model Number :
ACEY-ACS-1
Price :
USD 2980~3105/Set
Power supply :
220V/50Hz
Air consumption :
about 480ml
Sealing stroke :
30mm
sealing mold :
standard 18650 series
Dimensions :
About L465mm*W355mm*H345mm
Weight :
About 27Kg
Brand Name :
ACEY
MOQ :
1 Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Place of Origin :
China
Warranty :
1 Year Warranty With Lifetime Support
Certification :
CE
Packaging Details :
Plywood Case
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

Precision Pneumatic Cylindrical Battery Sealing Machine For Cylindrical Cell Assembly

Product Description

ACEY-ACS-1 battery sealing machine is mainly used in the sample production of laboratory battery material research and development for the scientific research sealing of cylindrical batteries and cylindrical capacitors, and can also be used for small batch trial production in factories. Pneumatic control is convenient and labor-saving.

Product Features

*Pure pneumatic operation, no electricity, convenient and easy to use;
*Two-station sealing, better sealing and sealing effect;
*Precision mold design ensures accurate and reliable sealing forming, solid steel structure design, stable and safe use.
* Beautiful appearance, easy maintenance, small size, convenient operation, accurate molding, etc.
*Compressed air or inert gas cylinders are used to supply air. The compressed air exhaust is connected to prevent damage to the glove box atmosphere.
*Precision mold design ensures accurate and reliable sealing forming, solid steel structure design, stable and safe use.
*It has the function of preventing short circuit of battery sealing.

Product Parameter

Air source: 0.6～0.8MPa argon, nitrogen gas cylinder, or compressed air (compressed air is not recommended in the glove box)
Exhaust design: specially designed exhaust port, which can be connected externally through KF40 and other devices
Air consumption: about 480ml of air consumption for a single seal
Sealing pressure: manual control valve control, pressure 1MPa, recommended pressure 0.7MPa,
Sealing stroke: 30mm
Dimensions: L290mm*W205mm*H330mm
Weight: 27Kg
Sealing mold standard 18650 series packaging mold, optional or additional specifications
Structural material high-strength chrome steel, the surface will never rust after environmental protection plating and spraying treatment.

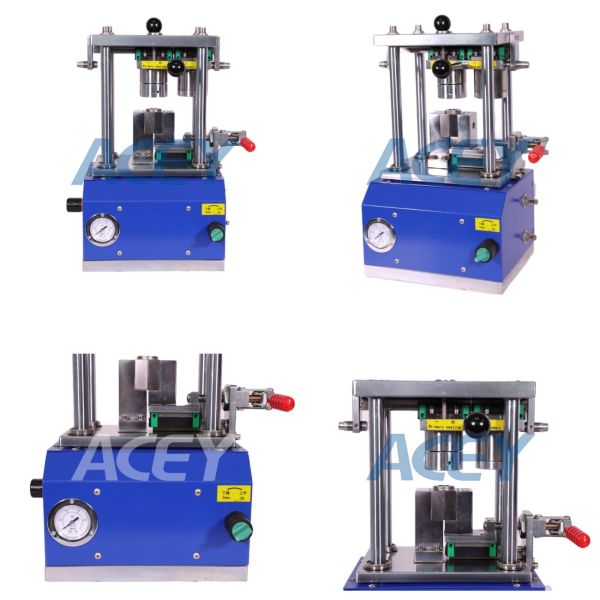

Product Display

Precision Pneumatic Cylindrical Battery Sealing Machine For Cylindrical Cell Assembly
