800mm Heat Vacuum Battery Electrode Coating Machine For Cylindrical Cell
800mm Heat Vacuum Battery Electrode Coating Machine For Cylindrical Cell
800mm Heat Vacuum Battery Electrode Coating Machine For Cylindrical Cell
800mm Heat Vacuum Battery Electrode Coating Machine For Cylindrical Cell
Specifications
Model Number :
ACEY-HTM800
Price :
USD 3280~3418/Set
Film coating speed :
0～120mm/sec
Vacuum plate size :
L900mm×W200mm×H32mm
Scraper adjustable rang :
0～3.5mm
Power supply :
220V/50Hz
Weight :
70KG
Dimensions :
L1000mm×W355mm×H325mm
Brand Name :
ACEY
MOQ :
1 Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Place of Origin :
China
Warranty :
1 Year Warranty With Lifetime Support
Certification :
CE
Packaging Details :
Plywood Case
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

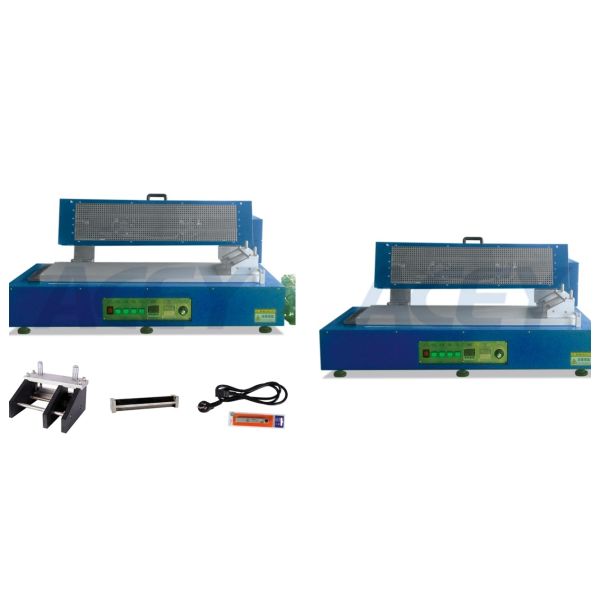

800mm Heat Vacuum Battery Electrode Coating Machine For Cylindrical Cell

Product Description

ACEY-HTM800 This product is a 800mm long cast coating machine, including a vacuum suction cup and an oil-free vacuum pump, and a scraper can produce long thick films. With a unique automatic propulsion device, it can produce smooth coatings on any material within a width of 150mm and a length of 800. It is an ideal tool for low-cost research and development of 18650 battery electrode materials.

Features

*Strong wind circulation drying heating, digital display temperature control, working temperature 130℃;
*Digital display timer, drying time can be set freely;
*The coating speed is adjustable within the range of 0～120mm/sec;
*Vacuum aluminum plate can quickly place or remove the substrate;
*The stroke can be adjusted by the stroke switch between 0～800mm;
*With adjustment of the coating thickness ( Scraper with precision 0.01mm);
*Small size, can save space;
*Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;
*The stroke can be adjusted by the stroke switch between 0～800mm.
*Includes 1 oil-free vacuum pump;

Specification

Film coating speed: 0～120mm/sec;
Vacuum plate: aluminum plate with vacuum;
Vacuum plate size: L900mm×W200mm×H32mm;
Scraper adjustable range: 0～3.5mm;
Heating drying system: room temperature～130℃, digital display temperature controller, accuracy ± 1℃
Power supply: 220V/50Hz;
Power: 1.8KW
Weight: 70KG;
Dimensions: L1000mm×W355mm×H325mm;
