8 Channels Automatic Polymer Battery Cell Tester For Pouch Cell Making
8 Channels Automatic Polymer Battery Cell Tester For Pouch Cell Making
8 Channels Automatic Polymer Battery Cell Tester For Pouch Cell Making
8 Channels Automatic Polymer Battery Cell Tester For Pouch Cell Making
8 Channels Automatic Polymer Battery Cell Tester For Pouch Cell Making
8 Channels Automatic Polymer Battery Cell Tester For Pouch Cell Making
8 Channels Automatic Polymer Battery Cell Tester For Pouch Cell Making
8 Channels Automatic Polymer Battery Cell Tester For Pouch Cell Making
Specifications
Model Number :
ACEY-BT-5V6A
Price :
USD 1130~1177/Set
Input power :
AC 220V ±10% / 50Hz
Per Channel Voltage Range :
25mV~5V
Input active power :
425W
Channel Control Mode :
Independent Control
Channels :
8
Dimensions :
W*D*H：480*380*130（mm）
Brand Name :
ACEY
MOQ :
1 Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Place of Origin :
China
Warranty :
1 Year Warranty With Lifetime Support
Certification :
CE
Packaging Details :
Plywood Case
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

5V 6A 8 Channels Automatic Polymer Battery Cell Tester For Pouch Cell Making

Description

ACEY-BT-5V6A battery testing system is an 8‑channel analyzer capable of evaluating both polymer and cylindrical batteries across a current range of 12.0 mA to 6,000 mA and a voltage of up to 5 V. This versatile platform supports a wide array of battery testing applications, including electrode material research, performance characterization, small‑scale formation, capacity grading, and battery pack validation.

Specification

Product Name: Battery Testing Equipment 5V6A
Model No.: ACEY-BT-5V6A
Input power AC 220V ±10% / 50Hz
Input active power 425W
Input Resistance ≥1MΩ
Resolution AD:16bit；DA:16bit
Voltage Per Channel Voltage Range 25mV~5V
Discharge Min Voltage 2V
Accuracy ± 0.05% of FS
Stability ± 0.05% of FS
Current Per Channel Current Range Range one:0.5mA~0.1A；
Range two:0.1A~3A；
Range three:3A~6A
Accuracy ± 0.05% of FS
Constant Voltage Cut-off Current 0.2mA；6mA；12mA
Stability ± 0.05% of FS
Power Per Channel Output Power 30W
Stability ±0.1% of FS
Time Current Response Time (0~Full Range)＜1ms
Step Time Range ≤(365*24)Hour/Step
Data Recording Recording Condition The minimum time interval:100ms
The minimum voltage interval:10mV
The minimum current interval:0.2mA；6mA；12mA
Record Frequency 10Hz
Charge Charge Mode Constant Current Charge,Constant Voltage Charge,Constant Current and Constant Voltage Charge,CPC
End Condition Voltage,Current,Relative Time,Capacity,-△V
Discharge Discharge Mode CCD,CVD,CCVD,CPD,CRD
End Condition Voltage,Current,Relative Time,Capacity
Pulse Charge CCC
Discharge CCD
Min Pulse Width 500ms
Pulse Number Each pulse step supports 32 different pulses
Automated Switch Automated switch from charge to discharge for each pulse
End Condition Voltage, Test Time
Cycle Loop Measure Range 1~65535 times
Max Steps Per Loop 254
Nested Loop Nested loop Function,Max Support 3 Layers
Protection Software Protection Power-down Data Protection
Off-line Testing Function
Setting Protection Condition,Setting Parameter:Low Voltage limit,Upper Voltage limit,Low Current limit,Upper Current limit,Delay Time
Noise <85dB
Channel Features Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure
Channel Control Mode Independent Control
Voltage and Current Testing Sample 4-wire connecting
Database MySQL Database
A Means of Communication of Upper Machine TCP/IP Protocol
Data Output EXCEL,TXT,Graph
Communication Interface Ethernet Port
Per Unit Main Channels No. 8
Working Temperature Range 0℃~40℃
Storage Temperature Range -10℃~50℃
Working Environment Relative Humidity Range 30% ~ 80% RH
Storage Environment Relative Humidity Range 30% ~ 90% RH
Dimensions 3U19”,W*D*H:480*380*130(mm)

Product details

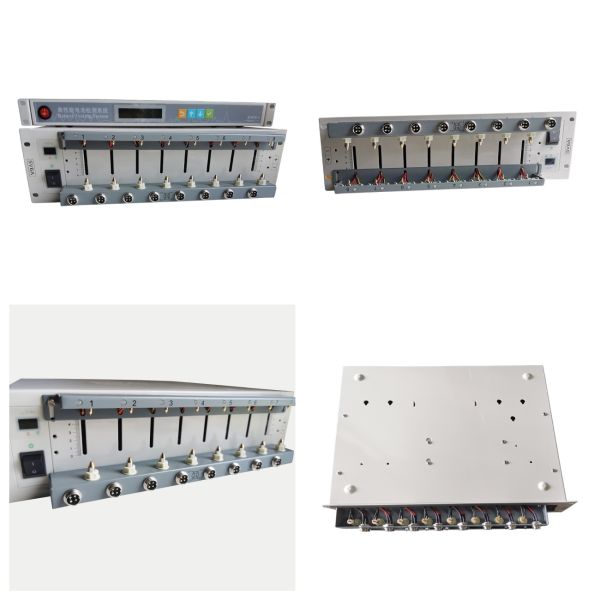

8 Channels Automatic Polymer Battery Cell Tester For Pouch Cell Making
