Compact Electrode Winding Machine for Polymer Battery Cell Manufacturing
Compact Electrode Winding Machine for Polymer Battery Cell Manufacturing
Compact Electrode Winding Machine for Polymer Battery Cell Manufacturing
Compact Electrode Winding Machine for Polymer Battery Cell Manufacturing
Compact Electrode Winding Machine for Polymer Battery Cell Manufacturing
Compact Electrode Winding Machine for Polymer Battery Cell Manufacturing
Compact Electrode Winding Machine for Polymer Battery Cell Manufacturing
Compact Electrode Winding Machine for Polymer Battery Cell Manufacturing
Specifications
Brand Name :
ACEY
Model Number :
ACEY-WM-P
MOQ :
1 Set
Price :
USD 1380~1438/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Power supply :
220V/50Hz
Power :
25W～40W
Speed :
0～170 rpm adjustable
Weight :
About 25KG
Place of Origin :
China
Warranty :
1 Year Warranty With Lifetime Support
Certification :
CE
Packaging Details :
Plywood Case
After-sales Service :
24/7 Technical Support
Description
Compact Electrode Winding Machine for Polymer Battery Cell Manufacturing
Product Overview

The ACEY-WM-P battery winding machine is designed for winding supercapacitors and soft-packaged lithium battery pole pieces. It efficiently winds positive electrodes, negative electrodes, and separators into complete battery cells.

Key Features
  • Fully adjustable vertical, horizontal, and depth positions for guide pole piece groove and ruler
  • Includes winding idler to ensure proper battery tightness during winding process
  • Added winding tail bracket enhances battery winding accuracy
  • Bi-directional winding capability with stepless speed regulation
  • Compact design with attractive appearance and easy operation
Technical Specifications
Power Supply 220V/50Hz
Power 25W～40W
Speed 0～170 rpm adjustable
Applicable Flat Battery Cell Size Length (20～100) × Width (20～80) × Thickness (MAX30) mm
Applicable Cylindrical Batteries Within Φ35*L90mm (requires winding needle replacement)
Winding Needle Φ3mm
Equipment Size L550mm × 310mm × 280mm
Equipment Weight 25Kg
Structural Material High-strength chrome steel with environmental protection plating and spraying treatment

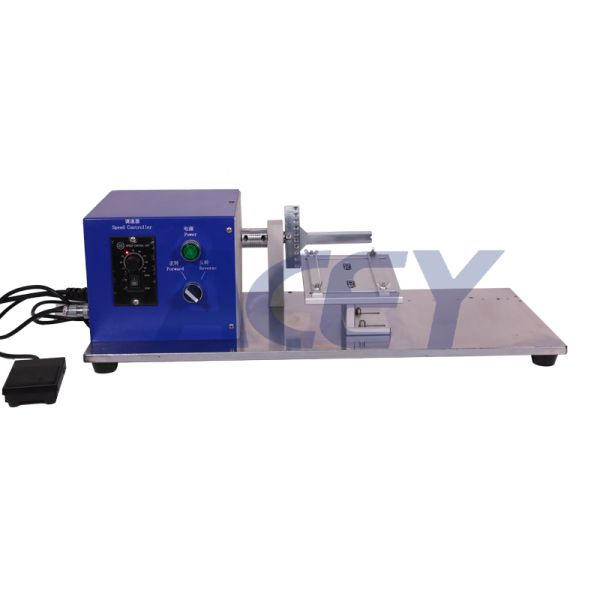

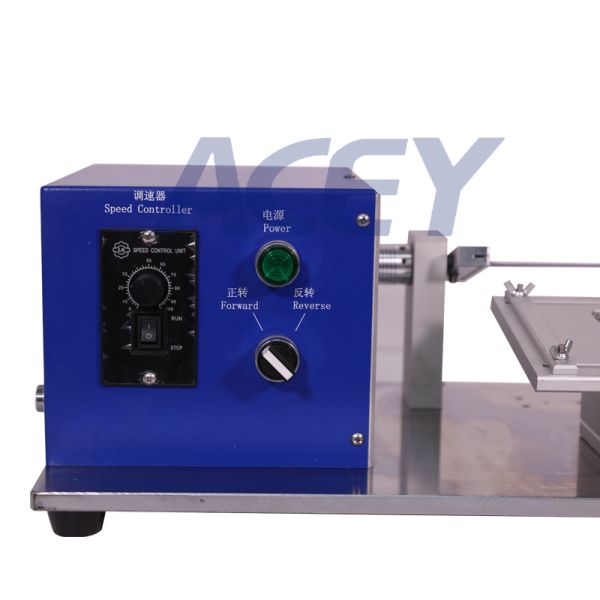

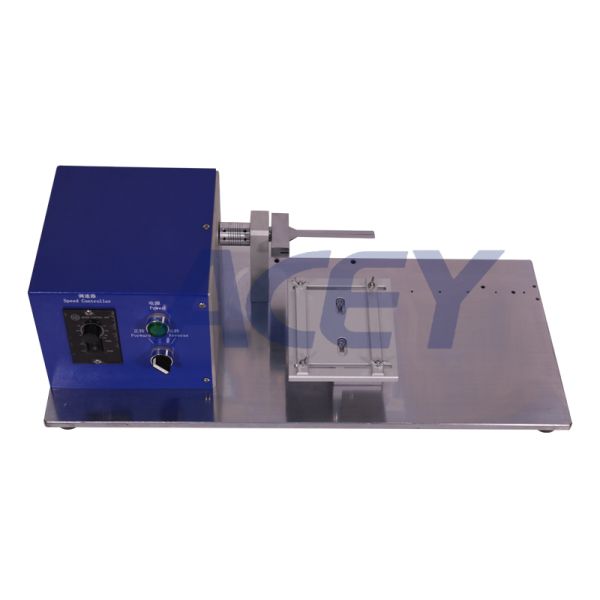

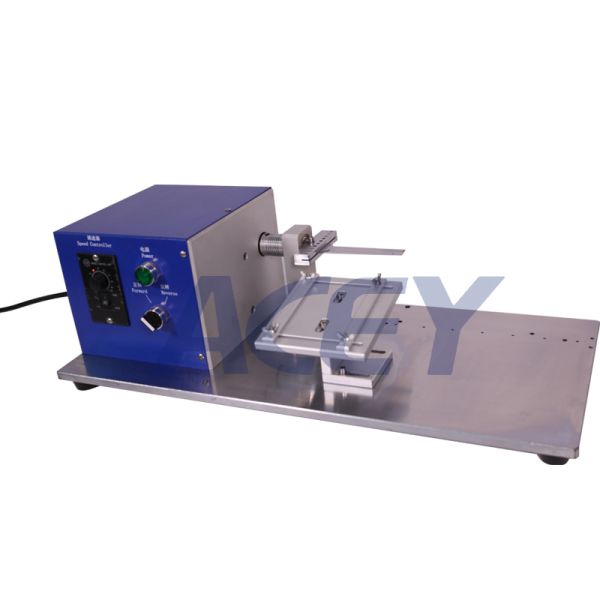

Product Display
Compact Electrode Winding Machine for Polymer Battery Cell Manufacturing
