150ML ACEY Brand Compact Lab Vacuum Mixer Mixing Equipment
The ACEY-VM-150ML vacuum mixer is a high-efficiency system that integrates vacuum mixing and dispersion. It is specifically designed for blending battery electrode slurries and various ceramic materials. By operating under vacuum conditions, the process ensures completely bubble-free mixing, enhancing material filling and final density.
Key Features
- Soft sealing process for optimal sealing effectiveness
- Gearbox frequency adjustment mixing motor allows vacuum speed customization based on material characteristics
- Double blade design for rapid paste mixing
- Compact dimensions for space efficiency with delicate appearance and simple operation
Technical Specifications
| Power supply voltage |
AC220V |
| Rated power |
150W |
| Stirring speed |
0~320 rpm speed regulation by frequency converter |
| Vacuum |
≤-80Kpa or more |
| Accessory volume |
150ml ~ 250ml stainless steel vacuum stirring tank |
| Mixing time |
0~9999 minutes (can be set) |
| Oscillation mode |
Stepless speed regulation |
| Dimension |
Approximately 335mm*315mm*515mm (length*width*height) |
| Weight |
Approximately 20kg |

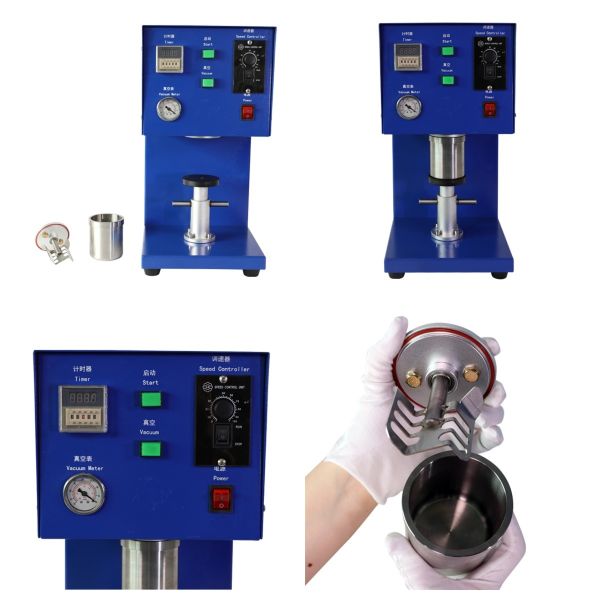

Product Display
