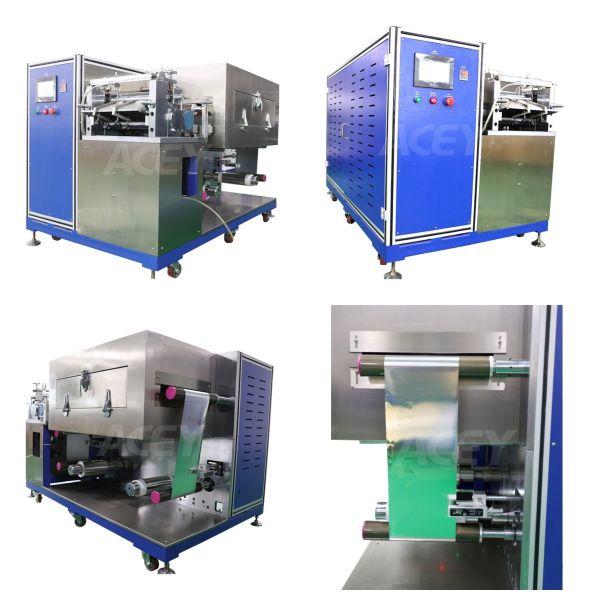

High Precision Automatic Coating Machine For Li Ion Battery Electrode
High Precision Automatic Coating Machine For Li Ion Battery Electrode
High Precision Automatic Coating Machine For Li Ion Battery Electrode
High Precision Automatic Coating Machine For Li Ion Battery Electrode
High Precision Automatic Coating Machine For Li Ion Battery Electrode
High Precision Automatic Coating Machine For Li Ion Battery Electrode
High Precision Automatic Coating Machine For Li Ion Battery Electrode
High Precision Automatic Coating Machine For Li Ion Battery Electrode
Specifications
Model Number :
ACEY-AC300J
Price :
USD 29800~31052/Set
Brand Name :
ACEY
MOQ :
1 Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Place of Origin :
China
Certification :
CE
Packaging Details :
Plywood Case
Delivery Time :
7~35 Days
power supply :
AC220V±10%
Coating type :
Continuous/intermittent coating
Guide roller width :
300mm (customizable)
Coating width :
Max.250mm
size :
L1750*W1000*H1200mm
Weight :
900KG with caster base
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Description

High Precision Automatic Coating Machine For Li Ion Battery Electrode



Product Description

ACEY-AC300J intermittent experimental coater is a three‑roll transfer coating system that can perform both continuous and intermittent coating, making it adaptable to a wide range of substrate coating applications. Commonly used in the lithium‑ion battery industry, the equipment is designed to be researcher‑friendly while achieving coating accuracy and consistency on par with production‑scale systems. With excellent drying performance, it serves as an ideal solution for the research, development, and small‑batch trial production of lithium‑ion batteries, supercapacitors, nickel‑based batteries, and other secondary battery technologies.


Features

*It can be switched freely to realize continuous and intermittent coating;
*Substrate tension control, stable tape travel, equipped with deviation correction device;
*Hot-air oven, upper and lower double-sided blowing, high-quality drying effect;
*Three-roll transfer coating, with a wider coating window;
*Comma squeegee measurement, with precision adjustment mechanism, to obtain high coating precision;
*PLC control, touch screen operation, convenient and easy to use;
*Optional solvent recovery processing device


Specification

power supply Single-phase voltage AC220V±10% (110VAC can be customized), frequency 50Hz/60Hz, power 5KW
Gas source 0.5-0.8MPa compressed air
Use environment Recommended ambient temperature is 25±3℃, humidity is 30~90RH, no vibration and electromagnetic interference
Coating type Continuous coating, intermittent coating
Guide roller width 300mm
Coating width Max.250mm
Mechanical speed Max.800mm/min
Coating accuracy Better than ±3μm (Edge error ±5μm)
Coating thickness Depending on the size of the paste, 30~200μm
Thickness adjustment Manual free adjustment, dial indicator display accuracy 1μm
Coating length Single piece Max.5000mm, blank 10~100mm, accuracy ±0.5mm
Drying unit Standard hot air drying (infrared drying and UV curing can be customized), single section 800mm long
Drying temperature Max. 150±5℃, can be set
Tension control Max. 60N
Reel diameter 250mm
Winding accuracy ±0.5mm
Outer size and weight of coating equipment: size L1750*W1000*H1200mm
Weight: Approximately: 900KG with caster base


Product Details
