Specifications
Brand Name :
ACEY
Model Number :
ACEY-PDC-1
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 1970 /Set
Punching size :
L85mmxW65mm (can be customized according to customer requirements)
Punching accuracy :
±0.1 mm
Die cutting stroke :
35mm
Punching pressure :
Max. 1T (0.5MPa compressed air), the recommended pressure for punching battery pole pieces is 500Kg
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Warranty :
1 Year Warranty With Lifetime Support
Packaging Details :
Plywood Case
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

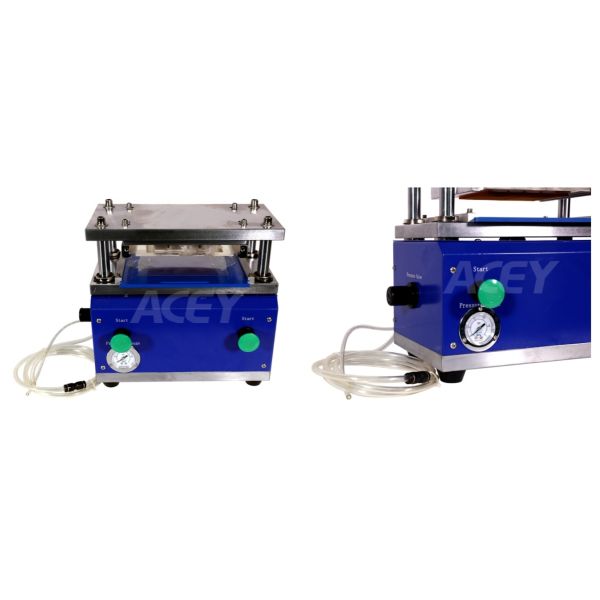

Pouch Cell Electrode Cutter Pneumatic Electrode Die Cutter Customizable Size



Product Description

ACEY-PDC-1 is suitable for die-cutting and forming of battery positive and negative plates. The single-piece die-cutting of the plate-type pole piece is pneumatically used, and it can be placed in a glove box for use.


Product Features

*Slice-type pole piece feeding, the knife template realizes die cutting, can be used in the glove box;
*It is convenient and quick to change the knife mold;
* Long tool life, normal use ≥ 30,000 times;
* There are no quality defects such as burrs, powder falling, and indentation;
*Using four guide pillar structure, sliding up and down smoothly and high precision;
*Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;
*Easy to operate, safe and reliable, small size;
*Vertical burr≤12μm, horizontal burr≤20μm;
*Long tool life, normal use ≥ 30,000 times;

Technical Parameter

Punching size: L85mmxW65mm (can be customized according to customer requirements);
Punching accuracy: ±0.1 mm
Punching pressure: Max. 1T (0.5MPa compressed air), the recommended pressure for punching battery pole pieces is 500Kg;
Die cutting stroke: 35mm;
Compressed air: 0.5MPa compressed air, if put in the glove box, the gas used is the same as the glove box;
Dimensions: L350mm*W230mm*H300mm;
Equipment weight: 32kg


Product Display

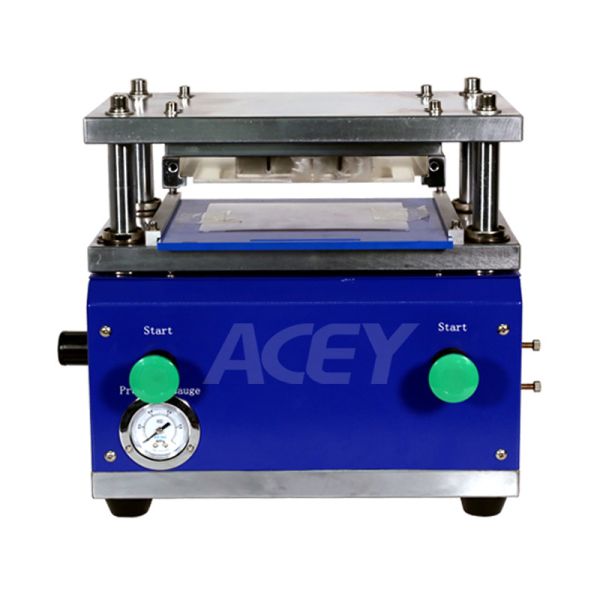

Pouch Cell Electrode Cutter Pneumatic Electrode Die Cutter Customizable Size
