300mm Customized Battery Electrode Sheet Slitting Machine
300mm Customized Battery Electrode Sheet Slitting Machine
300mm Customized Battery Electrode Sheet Slitting Machine
300mm Customized Battery Electrode Sheet Slitting Machine
300mm Customized Battery Electrode Sheet Slitting Machine
300mm Customized Battery Electrode Sheet Slitting Machine
300mm Customized Battery Electrode Sheet Slitting Machine
300mm Customized Battery Electrode Sheet Slitting Machine
Specifications
Brand Name :
ACEY
Model Number :
ACEY-SM300
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 6600~7099/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Cutter width :
20~300mm
Weight :
About 90KG
Can be cut thickness :
80-300μm
Cutter diameter :
100mm
Power supply :
AC220V/50Hz
Dimensions :
about 90KG
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Description

300mm Customized Battery Electrode Sheet Slitting Machine


Product Description
ACEY-SM300 battery slitting machine is designed for the precision slitting of positive and negative electrode sheets in lithium‑ion batteries. It utilizes a chip‑feeding system with paired upper and lower circular blades driven by an electric motor, and the slit width can be adjusted by modifying the spacing between the blade separators.

Features
*Adjustable guide device for feeding positioning *Using electric rolling and slitting method;
*The amount of engagement can be adjusted;
*Upper and lower blades are at the same speed, synchronous transmission;
*The hob is equipped with a plexiglass protection device for safe operation;
*Open-type hob fixing method is convenient for hob disassembly;
*High cutting precision and reliable work.

Parameter
Cutting knife type: upper and lower round knife cut
Cutter width: 20～300mm
Distribution of knife interval: 56±0.1mm, 56±0.1mm, 56±0.1mm, 58±0.1mm, 58±0.1mm. 58±0.1mm.
Can be cut thickness: 80-300μm battery pole piece
The amount of knife eaten: the hand wheel is adjustable 0.2-0.4mm
Cutter diameter: 100mm
Cutter material: ultra-fine alloy steel
Width adjustment: spacer adjustment
Slitting speed: <2m/min, adjustable knob
Power supply: AC220V/50Hz
Power: 0.5KW
Dimensions: length 840 × width 600 × height 310 (mm)
Weight: about 90KG;

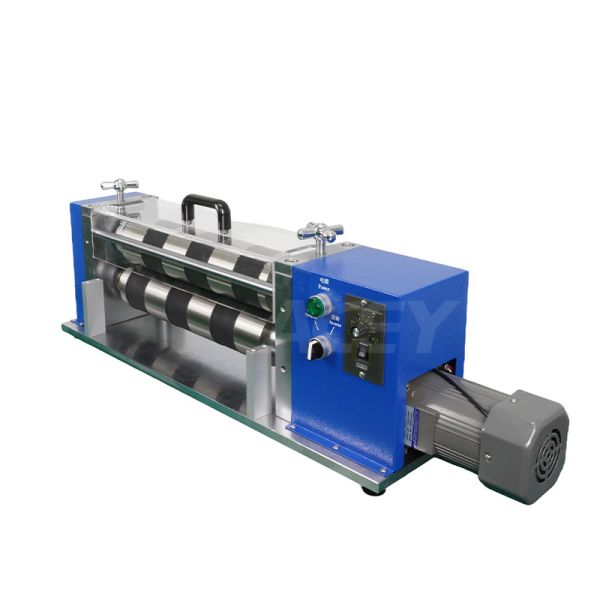

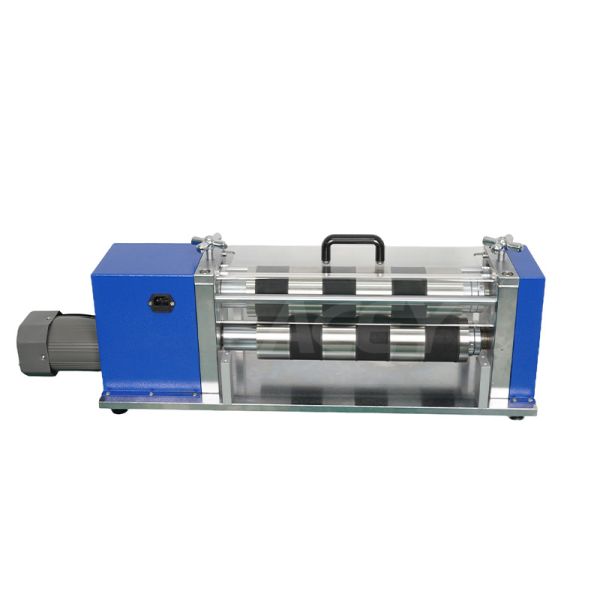

Product Display300mm Customized Battery Electrode Sheet Slitting Machine
