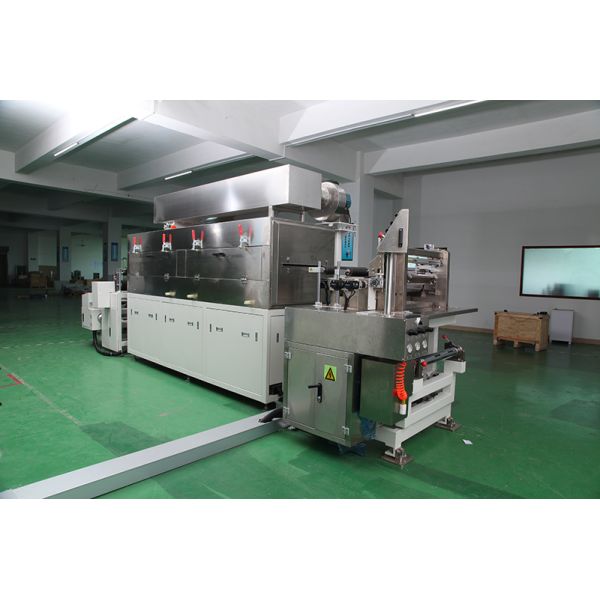

Vacuum Heating Lithium Battery Electrode Film Coating Machine
Vacuum Heating Lithium Battery Electrode Film Coating Machine
Vacuum Heating Lithium Battery Electrode Film Coating Machine
Vacuum Heating Lithium Battery Electrode Film Coating Machine
Specifications
Model Number :
ACEY-TRC400
Price :
USD 46000~47932/Set
Coating method :
continuous/intermittent coating
Heating method :
electric heating
Mechanical speed :
not less than 4.5m/min
Designed width of roller surface :
400 mm
Guaranteed coating width :
not less than 330mm
Dimensions :
L7100*W1210*H1810mm
Brand Name :
ACEY
MOQ :
1 Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Place of Origin :
China
Warranty :
1 Year Warranty With Lifetime Support
Certification :
CE
Packaging Details :
Plywood Case
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

Vacuum Heating Lithium Battery Electrode Film Coating Machine

Product Description

ACEY-TRC400 battery coater machine is a three‑roll transfer coating system suitable for applying coatings to various substrate surfaces. Widely used in the lithium‑ion battery industry, the equipment is designed for ease of use by researchers while meeting stringent requirements for coating accuracy and consistency—comparable to production‑level standards. It delivers excellent drying performance and serves as an ideal tool for R&D of lithium‑ion batteries, supercapacitors, nickel‑based batteries, and other secondary battery technologies.

Features

*Substrate tension control, stable tape travel, equipped with deviation correction device;
*Hot-air oven, upper and lower double-sided blowing, high-quality drying effect;
*Three-roll transfer coating, with a wider coating window;
*Comma squeegee measurement, with precision adjustment mechanism, to obtain high coating precision;
*PLC control, touch screen operation, convenient and easy to use;
*Optional solvent recovery processing device;

Specification

Suitable system: lithium iron phosphate, lithium cobalt oxide, lithium manganate, graphite, silicon carbon and other system battery positive and negative sheet coating process
Coating method: continuous coating, intermittent coating
Number of oven sections: 1.5m/section, 3 sections in total, three sections of temperature control, SUS304 stainless steel
Heating method: electric heating, hot air circulation structure
Temperature in the drying tunnel: Designed to Max150℃, the temperature difference in a single oven is ≤5℃
Mechanical speed: not less than 4.5m/min
Operating base material thickness: aluminum foil (Al): 8～30um copper foil (Cu): 8～30um
Designed width of roller surface: 400 mm
Scraper: round jump≤±1.5um, Ra0.4, straightness≤±1.5um
Coating roller (steel roller): circle runout≤±1.5um, Ra0.4 straightness≤±1.5um
Rubber roller: circle runout≤10um, straightness≤10um
Surface treatment of the roller: the surface of the metal aluminum roller is oxidized, and the circle runout ≤30um
Guaranteed coating width: not less than 330mm
Coating accuracy: better than ±3um (edge error ±5um)
Double-sided coating weight accuracy (mg/cm2): coating center value ±1.0%
Suitable for slurry viscosity: 2000~12000 (mPas)
Single-side coating dry thickness range: 30～200μm
Thickness adjustment: free adjustment, dial indicator display accuracy 1um
Coating length: gap: single piece Max.10000mm, blank 8～120mm, accuracy ±0.5mm
Rewinding correction accuracy: ±0.5mm
Winding tension: automatic control of constant tension, tension range 0~80N
Solvent characteristics: oily solvent NMP (sg=1.033, bp=204℃) / water-based solvent H2O/NMP (sg=1.000, bp=100℃)
Suitable solid content range: 20~85%
Coating size accuracy (mm): L≤±1, W≤±0.5 L: length direction
Position accuracy of front and back faces (mm): L≤±1, W≤±0.5 W: width direction
Main control system: touch screen, PLC, module, servo system
Operation mode: manual, automatic, emergency stop; the whole machine can be operated before and after
Appearance size and weight of coating equipment: size L7100*W1210*H1810mm approximately weight: 2T
