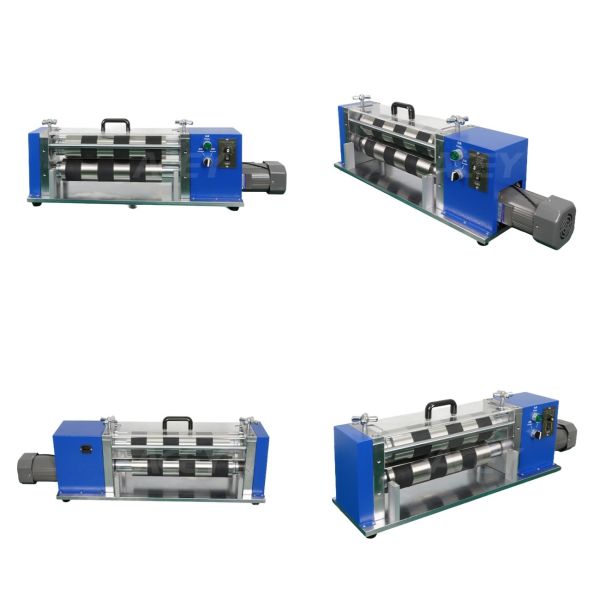

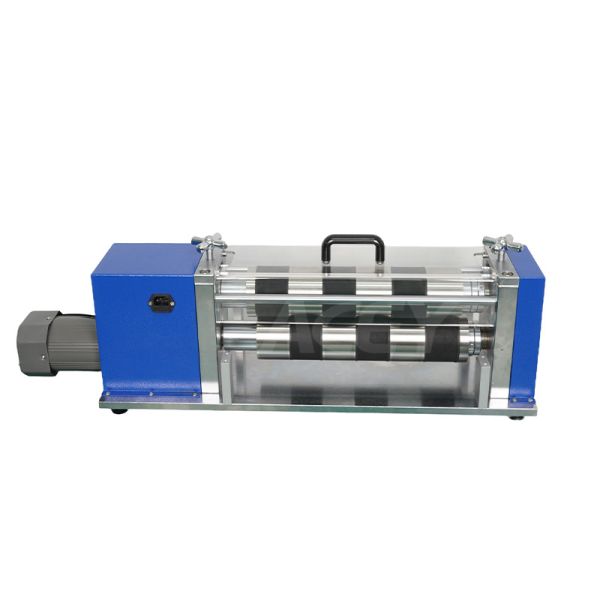

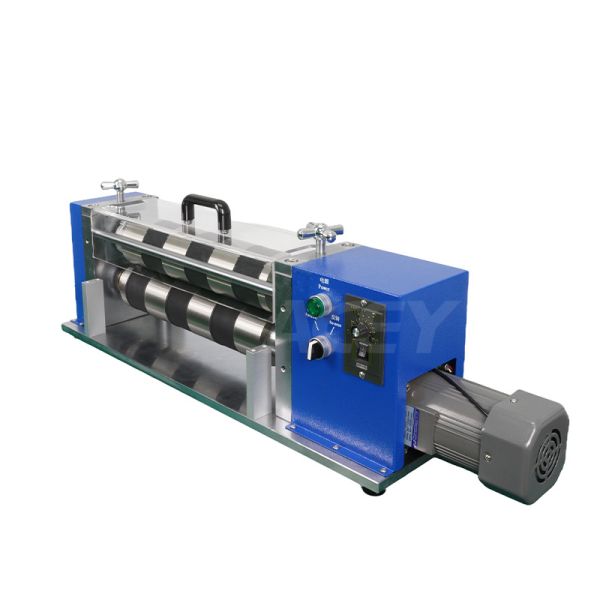

High Precision Battery Electrode Slitting Machine
High Precision Battery Electrode Slitting Machine
High Precision Battery Electrode Slitting Machine
High Precision Battery Electrode Slitting Machine
High Precision Battery Electrode Slitting Machine
High Precision Battery Electrode Slitting Machine
High Precision Battery Electrode Slitting Machine
High Precision Battery Electrode Slitting Machine
Specifications
Brand Name :
ACEY
Model Number :
ACEY-SM300
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 6600~7099/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Cutter width :
20~300mm
Weight :
About 90KG
Cutter material :
ultra-fine alloy steel
Dimensions :
length 840 × width 600 × height 310 (mm)
Power :
0.5KW
Power supply :
AC220V/50Hz
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Description

High Precision Battery Electrode Slitting Machine


Product Description
ACEY-SM300 is applied to the precision slitting process of lithium ion battery positive and negative plates. Chip feeding, upper and lower circular knife slitting, electric drive, slitting width can be adjusted according to adjusting spacer.

Features
*Adjustable guide device for feeding positioning *Using electric rolling and slitting method;
*The amount of engagement can be adjusted;
*Upper and lower blades are at the same speed, synchronous transmission;
*The hob is equipped with a plexiglass protection device for safe operation;
*Open-type hob fixing method is convenient for hob disassembly;
*High cutting precision and reliable work.

Parameter
Product Name
Slitting Machine
Model No.
ACEY-SM300
Cutting knife type
upper and lower round knife cut
Cutter width
20~300mm
Distribution of knife interval
56±0.1mm, 56±0.1mm, 56±0.1mm, 58±0.1mm, 58±0.1mm. 58±0.1mm
Can be cut thickness
80-300m battery pole piece
The amount of knife eaten
the hand wheel is adjustable 0.2-0.4mm
Cutter diameter
100mm
Cutter material
ultra-fine alloy steel
Power supply
AC220V/50Hz
Power
0.5KW
Dimensions
length 840 × width 600 × height 310 (mm)
Weight
about 90KG


Product DisplayHigh Precision Battery Electrode Slitting Machine
